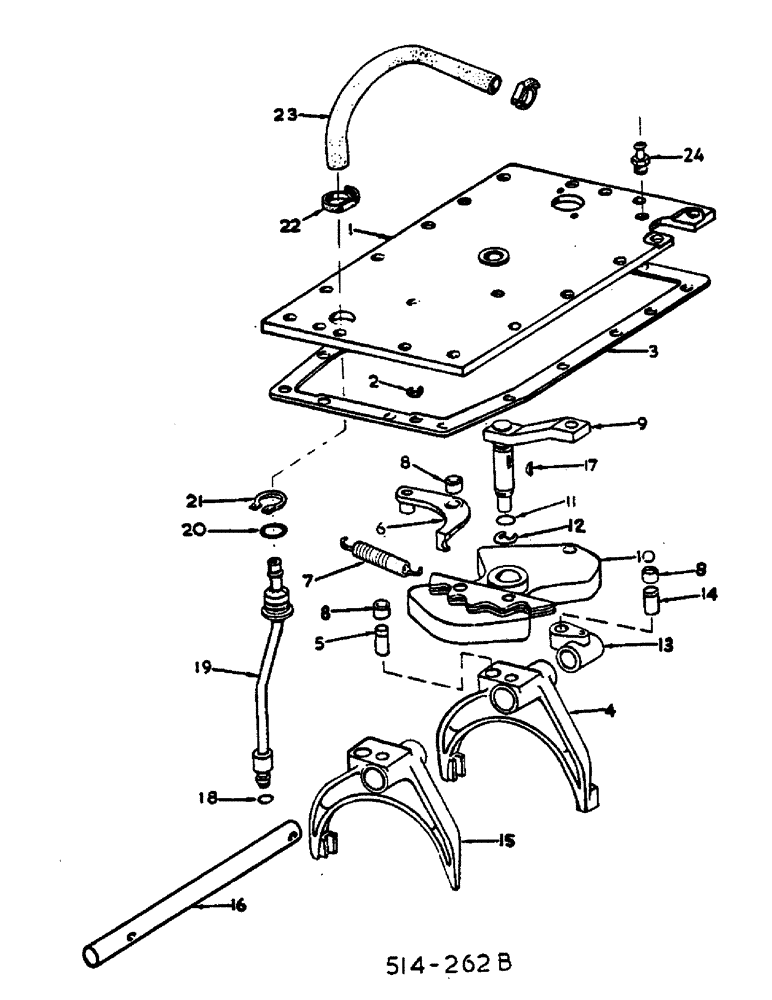

Запчасти Case IH 684 (07-40) - DRIVE TRAIN, TRANSMISSION CONTROLS, INTERNAL, SPEED TRANSMISSION, 684 TRACTOR WITH Z PATTERN SHIFT (04) - Drive Train

1

105829C1

COVER

ASSY, clutch hsg top, tractors w/o torque amplifier

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3.8 x 7/8 pln type 5

16шт.

11002VA

WASHER

.531 x .875 x .054 pln

1шт.

9410359

PLUG

3/4 std-thd o-ring boss

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

1

105830C2

COVER

ASSY, clutch hsg top, tractors w/torque amplifier

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

14шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

2

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shifter control arm pivot pin #50, .392" Dia, E-Type

1шт.

3

401019R3

GASKET

clutch housing top cover, tractor w/o torque amplifier

1шт.

3

401621R3

GASKET

clutch housing top cover, tractors w/torque amplifier

1шт.

4

401697R92

FORK

ASSY, 3rd and 4th speed shift

1шт.

5

383438R1

DOWEL

PIN, 1/2 x 1 dowel

1шт.

6

382565R21

ARM ASSY.

ARM ASSY, shifter control arm

1шт.

7

383997R1

SPRING

shifter control arm

1шт.

8

380115R2

ROLLER

cam

1шт.

9

404734R1

ARM ASSY.

ARM ASSY, cam actuating

1шт.

10

399455R93

CAM

ASSY, clutch housing shift

1шт.

104186

RIVET

5/16 x 1-3/8 pln 90 D c/hd sol

2шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, cam, pivot shaft o-ring

1шт.

12

603570R1

SNAP RING,#75, .574" Dia, E-Type

Ring, Retaining, , cam pivot shaft #75, .574" Dia, E-Type

1шт.

13

401694R11

HUB ASSY.

HUB ASSY, 1st and 2nd speed shift

1шт.

14

383438R1

DOWEL

PIN, 1/2 x 1 dowel

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

1/4" x 1 1/4", Coiled

2шт.

15

401695R2

FORK

1st and 2nd speed shift

1шт.

16

401696R1

ROD

1st and 2nd speed shift

1шт.

17

106751

KEY

3/16 x 3/4 woodruff, cam pivot shaft key

1шт.

18

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16

1шт.

19

66199C1

TUBE ASSY.,0.25" OD, 7.5, 0.62" Length

TUBE ASSY, transmission lub

1шт.

20

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 x 1/4

1шт.

21

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

22

534421R1

HOSE CLAMP

CLAMP, worm drive hose, or

2шт.

22

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

22

3112550R1

CLAMP

hose

2шт.

23

66201C1

HOSE,0.25" ID x 6.00", SAE 30R2 Type 1 Class 1

1шт.

24

105826C1

ADAPTER

1шт.
