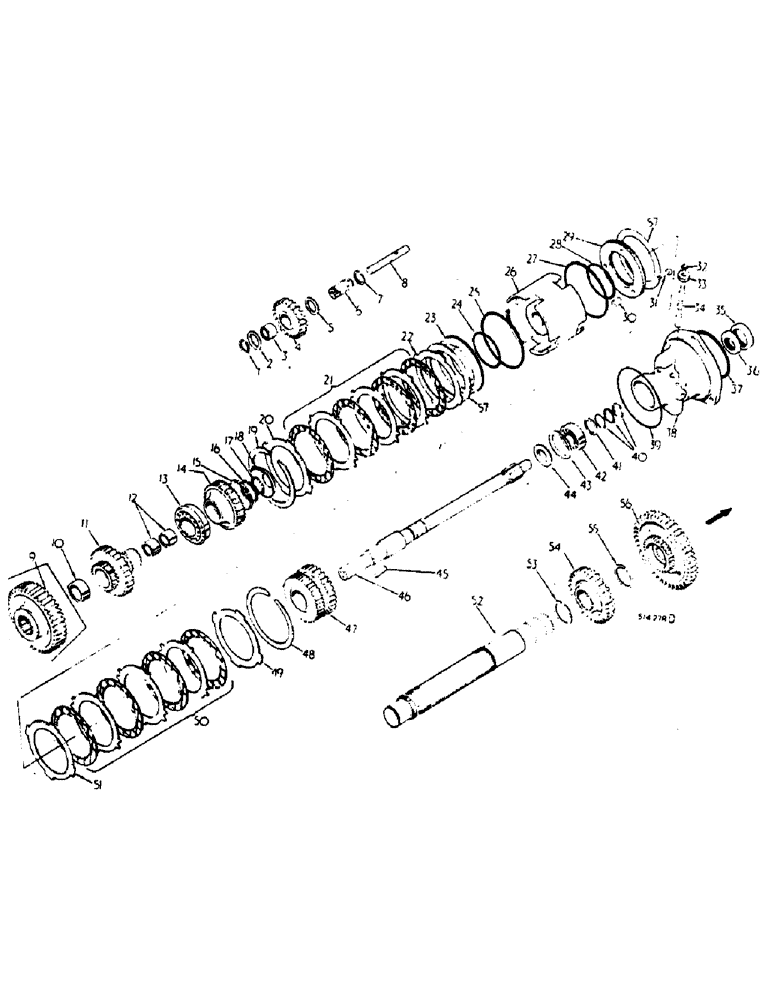

Запчасти Case IH 684 (07-32) - DRIVE TRAIN, FORWARD AND REVERSE, 684 TRACTOR (04) - Drive Train

1

362260R1

RING, SNAP

RING, idler gear retainer

1шт.

2

527772R1

WASHER

fwd/rev idler gear

1шт.

3

551139R91

BEARING, NEEDLE

BEARING, idler shaft needle

1шт.

4

527776R1

PINION

GEAR, fwd-rev idler, 23T

1шт.

5

527772R1

WASHER

fwd/rev idler gear

1шт.

6

527775R2

SLEEVE

idler gear

1шт.

18543R1

LOCK PIN,7/32" x 1", Slotted

PIN, 7/32" x 1", Slotted

1шт.

7

362260R1

RING, SNAP

RING, idler gear retainer

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

8

527774R1

SHAFT

fwd-rev idler

1шт.

9

527773R2

GEAR

hi-lo sliding, 42T

1шт.

10

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING, clutch shaft needle

1шт.

11

404200R3

PINION

GEAR, direct hub, 28T

1шт.

12

550839R91

BEARING, NEEDLE

BEARING, clutch shaft needle

2шт.

13

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING, direct drive gear ball

1шт.

14

404199R3

SPROCKET ASSY.

CARRIER, direct drive clutch disc

1шт.

15

70244C1

RING, SNAP

RING, internal snap

1шт.

16

336000R1

SNAP RING,#175, 1.640", Ext

RING, disc carrier retainer snap

1шт.

17

583976R1

SNAP RING,#125, 1.179", Ext

RING, clutch cup retainer snap

1шт.

18

70020C1

SLINGER

direct drive clutch

1шт.

19

401720R1

CIRCLIP

RING, backing plate retainer snap

1шт.

20

70016C1

PLATE

clutch backing

1шт.

21

534937R92

PACKAGE, REPAIR

PACKAGE, fwd-rev clutch plate service, consists of, 6 plate clutch separator, NSS, 8 plate, clutch driven, NSS

1шт.

22

402572R1

PLATE

piston backing

1шт.

23

70017C1

PISTON

direct drive clutch

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

clutch piston, inner

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING, clutch piston, outer

1шт.

26

CUP, direct drive clutch, order package 70014C2

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING, clutch piston, outer

1шт.

28

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING, clutch piston, inner

1шт.

29

70017C1

PISTON

direct drive clutch

1шт.

30

527769R2

SPACER

piston

3шт.

31

114530C1

BOLT

fwd-rev piston return, or

3шт.

31

527768R1

BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"

BOLT, fwd-rev piston return

3шт.

65240C1

SQUARE NUT

1/4 28 sq. mach screw

3шт.

32

896045R1

SNAP RING,#37, Ext

1шт.

33

531539R1

COLLAR

control system

1шт.

34

536974R1

STEM

forward and reverse control

1шт.

35

SEAL, IPTO drive shaft, order kit 1277488C1

1шт.

The 1096818R1 instruction sheet was added per FEC 2492

1шт.

36

SEAL, clutch shaft, order kit 1277488C1

1шт.

The 1096818R1 instruction sheet was added per FEC 2492

1шт.

37

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 x 1/8

1шт.

38

527761R4

CAGE

ASSY, IPTO clutch cup ret.

1шт.

39

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 class 6, bearing cage

1шт.

40

406275R1

RING

clutch shaft piston

3шт.

41

3112664R1

SNAP RING

RING, clutch shaft brg outer retaining

1шт.

42

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, clutch shaft ball

1шт.

43

139743R1

RING

clutch shaft brg inner retainer

1шт.

44

527767R1

THRUST WASHER

WASHER, clutch shaft thrust

1шт.

45

124554

O-RING

5/16 x 1 SAE B woodruff

1шт.

46

70014C2

PACKAGE, REPAIR

PACKAGE, fwd-rev shaft and clutch cup service, consists of, shaft, NSS, cup, NSS

1шт.

583976R1

SNAP RING,#125, 1.179", Ext

RING

1шт.

70020C1

SLINGER

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW, 1/4 x 1/4 pln f/pt hdl/hs set

2шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 SAE B woodruff

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW, 1/4 x 1/4 pln f/pt hdl/hs set

2шт.

47

527763R3

PINION

GEAR ASSY, drive

1шт.

48

401720R1

CIRCLIP

RING, backing plate retainer snap

1шт.

49

70016C1

PLATE

clutch backing

1шт.

50

order package 534937R92

1шт.

51

402572R1

PLATE

piston backing

1шт.

52

404104R2

COUNTERSHAFT

SHAFT, counter

1шт.

53

381486R1

SNAP RING,#187, 1.759", Ext

RING, gear retaining snap

1шт.

54

527771R1

PINION

GEAR, fwd-rev driven, 31T

1шт.

55

381486R1

SNAP RING,#187, 1.759", Ext

RING, gear retaining snap

1шт.

56

527770R1

GEAR

IPTO driven 46T and fwd-rev pump drive 33T

1шт.

57

70039C1

SHIM KIT

PACKAGE, fwd and rev piston return, shim service, consists of 2 shim .014, NSS, 2 shim .024, NSS, 2 shim .036, NSS, instruction, shim installation, NSS

1шт.

1277488C1

GASKET KIT

KIT, seal, consists of, sleeve, clutch shaft oil seal, NSS, seal, clutch shaft oil, NSS, seal, IPTO drive shaft oil, NSS

1шт.

No longer contains the metal sleeve used to reduce the bore size of the bearing cage per BLTN S-5086. Order 1277443C1 sleeve separately if required.

1шт.

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL, clutch release sleeve carrier, or

1шт.

108982C1

OIL SEAL

SEAL, clutch release sleeve carrier

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 class 5, sleeve, installation, NSS, sleeve, installation, NSS, instructions, NSS

1шт.
