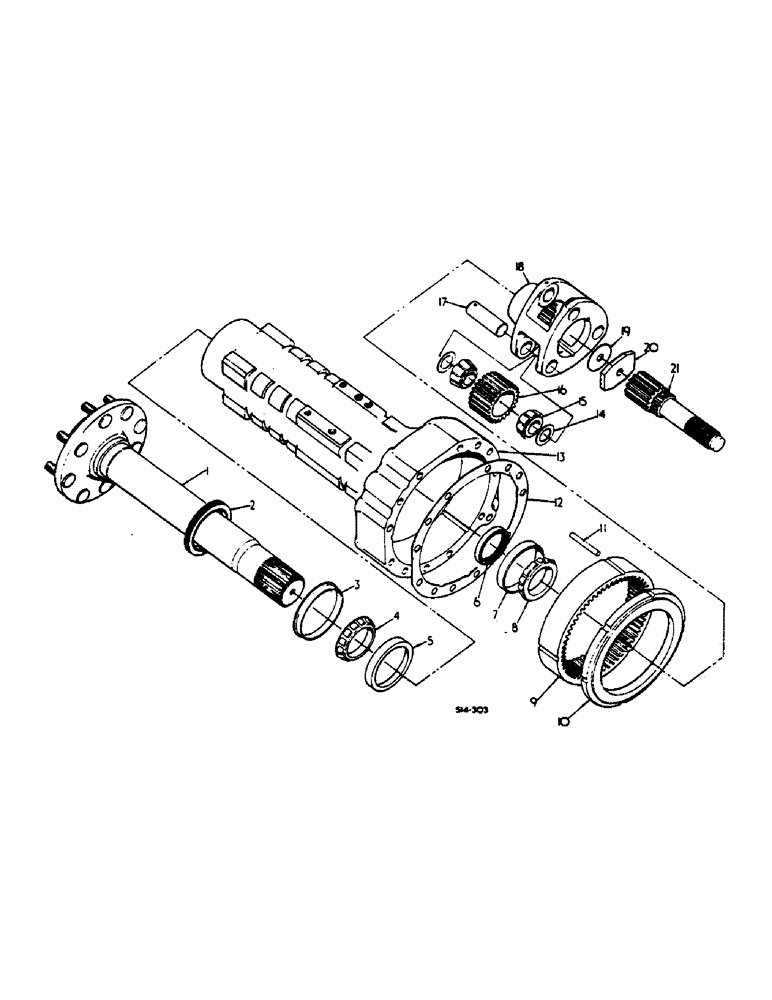

Запчасти Case IH 684 (07-30) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

404345R13

HALF SHAFT

AXLE ASSY, rear, utility tractors

2шт.

1

527353R11

AXLE, REAR

AXLE ASSY, rear, row crop tracors

2шт.

535862R1 sleeve as part of the axle asm 527353R11, 3.130 I.D. 3.62 O.D., .700 Wide

1шт.

2

404345R13

HALF SHAFT

AXLE ASSY, rear, all wheel drive tractors

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

2

105471C1

OIL SEAL

SEAL, rear axle outer oil

2шт.

3

399796R1

SLEEVE

wear

2шт.

4

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

rear axle outer

2шт.

5

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, rear axle outer cup

2шт.

6

530102R91

OIL SEAL

SEAL, rear axle inner oil

2шт.

7

ST981

BEARING CONE,112.71mm OD x 19.05mm W

BEARING, rear axle inner cup

2шт.

8

ST2175

BEARING, CONE,79.25mm ID x 19.05mm W

BEARING ASSY, rear axle inner

2шт.

9

535317R1

GEAR, RING

66T

2шт.

10

114620C1

RING,260mm OD

brake outer disc

2шт.

11

529686R1

DOWEL

PIN, dowel

6шт.

12

399762R3

GASKET

rear axle carrier

2шт.

13

3123815R2

CARRIER

rear axle LH

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 8

11шт.

13

3123817R2

CARRIER

rear axle LH, row crop tractors

2шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

10шт.

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

5/8 x 6-1/4 phc type 8

1шт.

13

3123816R1

CARRIER

rear axle RH, utility tractors

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

5/8 x 4-1/4 pln type 9

11шт.

13

3123818R1

CARRIER

real axle RH, row crop tractors

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

10шт.

25926R1

BOLT,Hex, 5/8" - 11 x 6 1/4", Gr 8

5/8 x 6-1/4 phc type 8

1шт.

14

65421C2

SHIM KIT

PACKAGE, planet gear shim service, consists of, shim .042, NSS, shim .049, NSS, shim .056, NSS

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, planet gear cone

12шт.

16

66128C2

PINION

GEAR, planet

6шт.

17

399812R1

SHAFT

PIN, planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

114613C1

CARRIER

planet gear, replaces 404344R2 by also ordering 3 planet gears, 66128C2

2шт.

19

65422C1

SHIM KIT

PACKAGE, rear axle retainer shim, consists of, 3 shim .007, NSS, 3 shim .012, NSS, 2 shim .029, NSS

1шт.

20

399748R1

SPACER

planet carrier ret

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-NF x 1-1/2 pln type 8

2шт.

21

404343R1

SHAFT

planetary drive RH

1шт.

21

404342R1

SHAFT

planetary drive LH

1шт.
