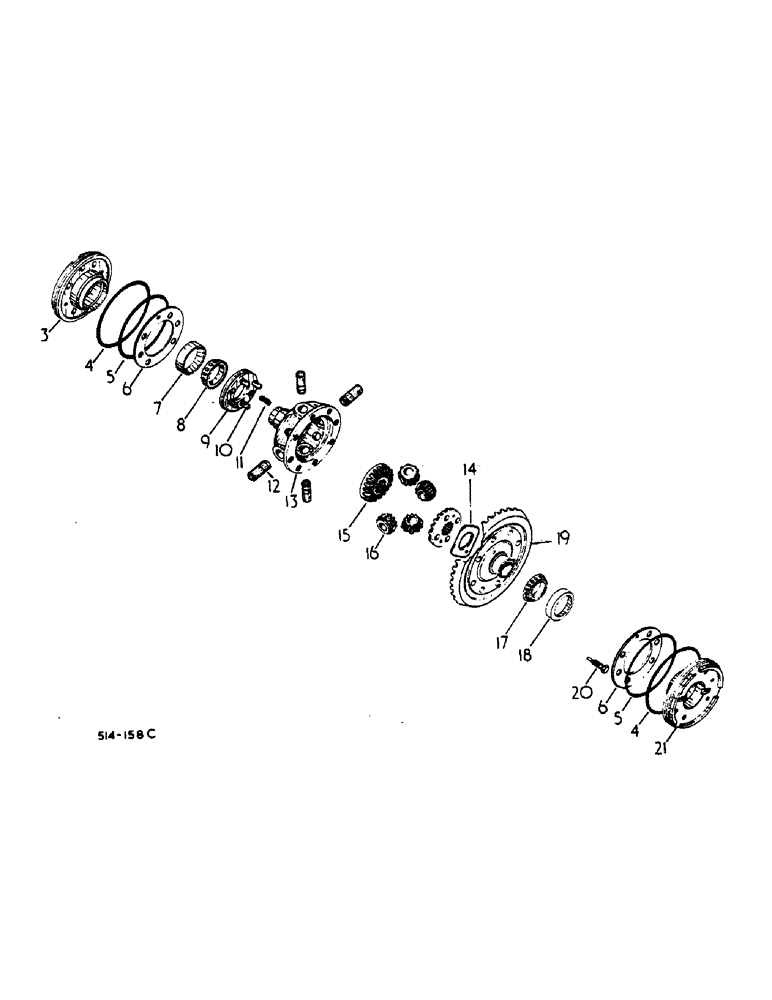

Запчасти Case IH 684 (07-28) - DRIVE TRAIN, DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

1

Not used in this application

1шт.

2

Not used in this application

1шт.

3

399770R2

BEARING CARRIER

CARRIER, differential brg RH

1шт.

4

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8, differential brg carrier

1шт.

5

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3/16, differential brg carrier seal

1шт.

6

65419C1

BEARING CARRIER

PACKAGE, differential brg carrier shim service, consists of, 3 shim .003, NSS, 3 shim .007, NSS, 3 shim .012, NSS, 2 shim .030, NSS

1шт.

7

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING, differential cup RH

1шт.

8

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

BEARING ASSY, differential cone RH

1шт.

9

399764R11

LOCKING RING

RING ASSY, differential lock

1шт.

10

399765R1

PIN

coupling

4шт.

11

400867R1

SPRING

differential lock

2шт.

12

399804R1

PIN

differential pinion

4шт.

13

399763R1

PINION CARRIER

CARRIER, differential

1шт.

14

399778R1

THRUST WASHER

differential bevel gear thrust

1шт.

15

404336R1

PINION

GEAR, differential bevel, 20T

2шт.

16

399776R1

PINION

GEAR, differential pinion

4шт.

17

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

BEARING ASSY, differential LH

1шт.

18

105496H

BEARING CUP,97.63mm OD x 19.45mm W

BEARING, differental cup LH

1шт.

19

GEAR, bevel, 52T, 684 utility & row crop tractors

1шт.

Not serviced separately. Refer to main shaft bevel gears listing, this group.

1шт.

19

GEAR, bevel, 53T, hydro 84 utility & row crop tractors

1шт.

Not serviced separately. Refer to main shaft bevel gears listing, this group.

1шт.

19

GEAR, bevel, 52T, all wheel drive tractors

1шт.

Not serviced separately. Refer to main shaft bevel gears listing, this group.

1шт.

20

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT, 1/2-13 x 2-1/8 dowel

4шт.

21

399769R2

BEARING CARRIER

CARRIER, differential brg LH

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

4шт.

535862R1

SLEEVE

rear axle, used on new crop models, new axle seal seats on top of sleeve

1шт.
