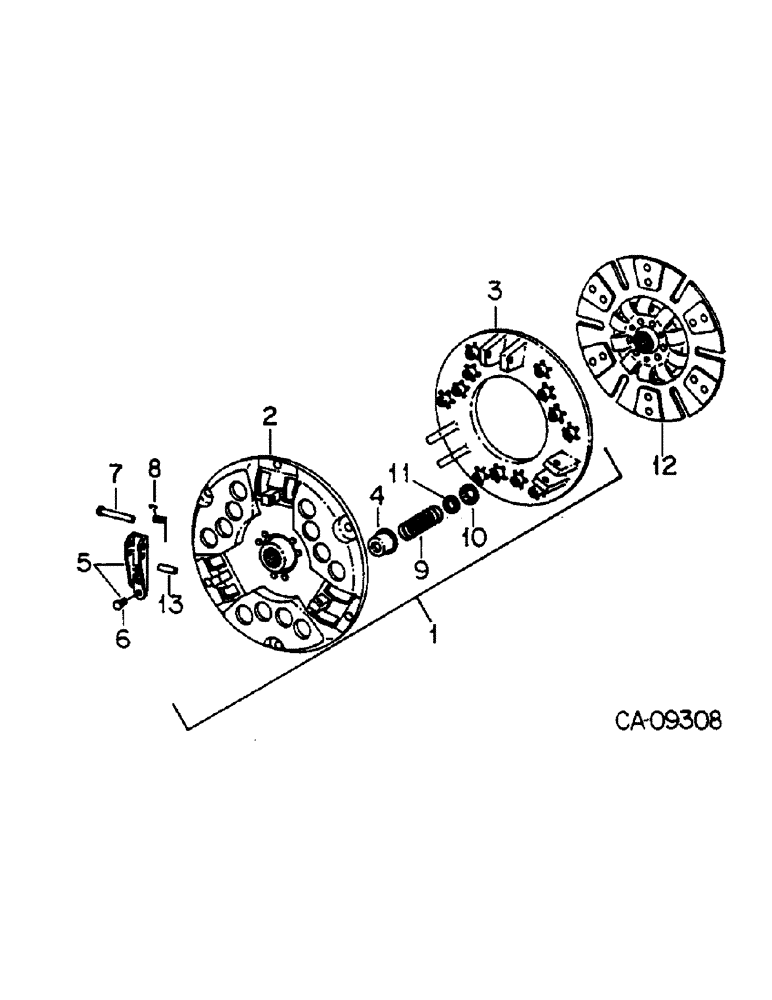

Запчасти Case IH 684 (07-24) - DRIVE TRAIN, CLUTCH, HEAVY DUTY, 12 INCH, ROCKFORD, 684 TRACTORS, SERIAL NO. 10339 AND ABOVE (04) - Drive Train

1

85025C91

COVER ASSY

PLATE ASSY, clutch pressure includes ref no. 2 thru 11 & 13

1шт.

1

84342556R

REMAN-CLUTCH PLATE

684 SERIAL NO. 10339 AND ABOVE (1/77-12/81), Reman For New PN 85025C91

1шт.

1

84342556C

CORE-CLUTCH PLATE

Return Part Number

1шт.

2

85148C1

PLATE

PLATE ASSY, back

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

3

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE

1шт.

4

353316R1

SPRING CUP

CUP, spring

12шт.

5

85120C91

PACKAGE

PACKAGE, lever assy

1шт.

6

163479R3

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 0.545", Drilled

SCREW, adjusting

3шт.

7

149487R1

PIN

PIN

3шт.

95-11034

WASHER,1/4"

WASHER, .344 x .688 x .051 pln

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

8

375572R1

SPRING

SPRING

3шт.

9

349934C1

SPRING

SPRING

12шт.

10

311292C1

WASHER

WASHER, retainer

12шт.

11

311291C1

INSULATING WASHER

WASHER, insulating

12шт.

12

85026C1

CLUTCH DISC

CLUTCH DISK PLATE ASSY, clutch driven disc

1шт.

12

85026C3R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 12 in., 10Tooth hub, 1 1/8 in. OD splines, 6 button

1шт.

12

85026C3C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

143264R1

PIVOT PIN

PIN, pivot lever

1шт.

85119C91

KIT

PARTS ACCESSORY, 12 inch heavy duty clutch, for tractors w/11 inch clutch, consists of, Serial Range: -10338

1шт.

85025C91

COVER ASSY

PLATE ASSY, clutch pressure

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

85026C1

CLUTCH DISC

CLUTCH DISK PLATE ASSY, clutch driven disc

1шт.

1288115C1

SHAFT ASSY.

SHAFT ASSY, clutch release

1шт.

85104C91

BEARING, BALL

BEARING, clutch release

1шт.

85112C1

SLEEVE

SLEEVE, clutch release

1шт.

1808412C91

FLYWHEEL

FLYWHEEL ASSY

1шт.
