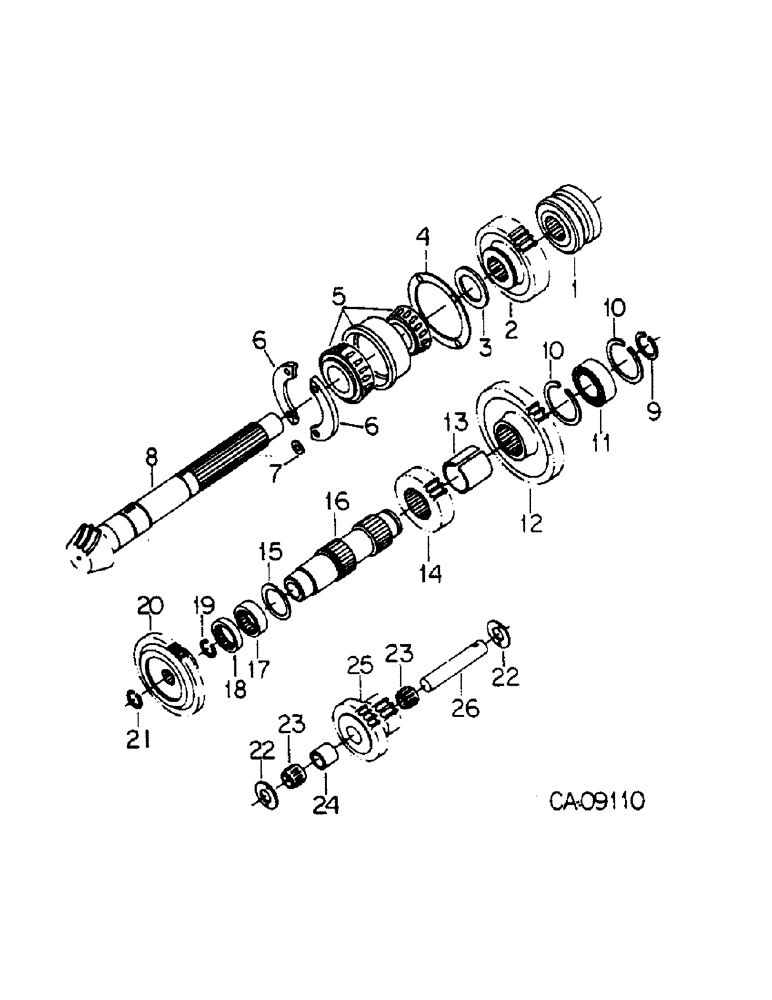

Запчасти Case IH 684 (07-21) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME, 684 TRACTORS (04) - Drive Train

1

1277137C1

COLLAR ASSY.

COLLAR, hi-speed shift, replaces collar 399830R2 on tractors w/serial no. 10076 & below by also ordering gear 1286470C1

1шт.

2

1286470C1

GEAR

fwd/rev sliding, 42T, replaces 399462R1

1шт.

3

65788C1

WASHER

bevel pinion shaft thrust

1шт.

4

65423C1

SHIM KIT

PACKAGE, main shaft brg cage shim, consists of, 2 shim .004, NSS, 5, shim .007, NSS

1шт.

5

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

ASSY, main shaft

1шт.

6

65784C2

RETAINER

ASSY, main shaft brg

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

7

65787C1

WASHER

brg, retainer screw

4шт.

8

NSS

NOT SOLD SEPARAT

SHAFT, pinion, 12T, utility & row crop tractors, not serviced separately, refer to main shaft bevel gears listing, this group

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT, pinion, 11T, all wheel drive tractors, not serviced separately, refer to main shaft bevel gears listing, this group

1шт.

9

327068R1

RING, SNAP

RING, countershaft brg ext snap

1шт.

10

399832R1

RING, SNAP

RING, countershaft brg int snap

2шт.

11

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BEARING, countershaft front ball

1шт.

12

404097R1

GEAR

constant mesh, 46T

1шт.

13

399835R1

BUSHING

countershaft gears

1шт.

14

103150C1

PINION

GEAR, lo range driving, 24T

1шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

RING, 2.026 ext rect sect ret

1шт.

16

404096R1

SHAFT

range transmision counter

1шт.

17

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft needle

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING, pump drive gear

1шт.

19

399837R1

SNAP RING,#118, 1.121", Ext

TING, 1.121 ext rec sect ret

1шт.

20

404218R1

GEAR

pump drive, 55T

1шт.

21

533266R1

RING, SNAP

RING, IPTO front driven shaft rear snap

1шт.

22

3112846R1

THRUST WASHER

WASHER, idler thrust

2шт.

23

3113041R91

ROLLER CAGE BEARING

reverse idler gear needle

2шт.

24

3112845R1

SPACER

idler bearing

1шт.

25

70298C1

PINION

GEAR, rev idler 20T and 24T

1шт.

26

399838R3

SHAFT

reverse idler

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.
