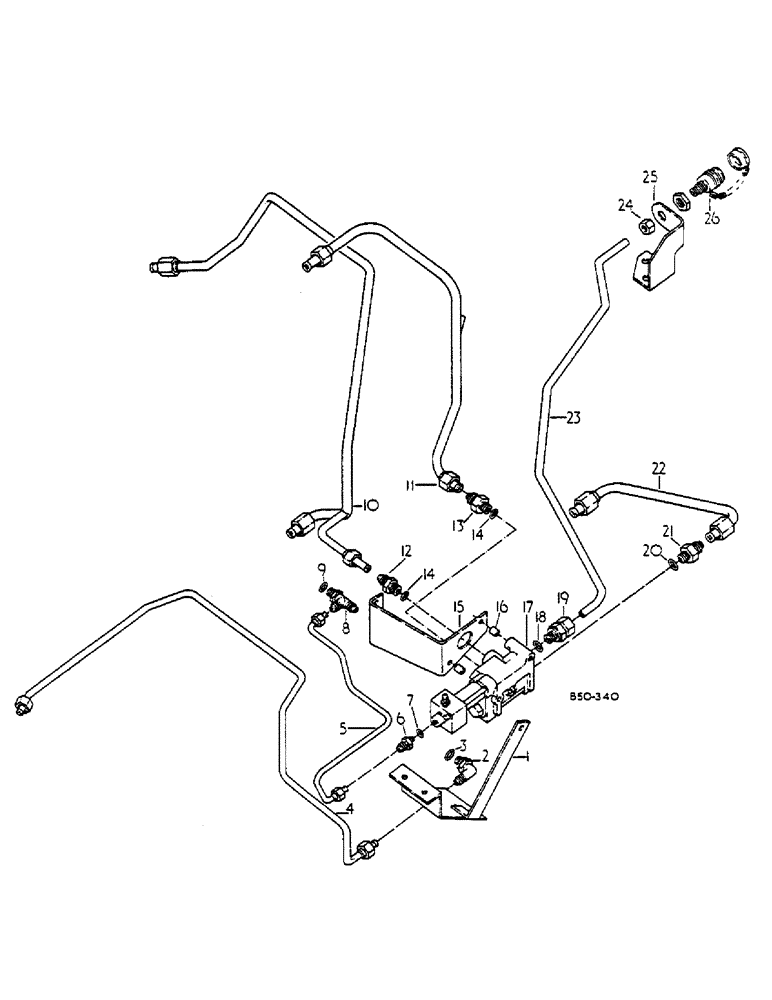

Запчасти Case IH 684 (10-071) - HYDRAULIC TRAILER BRAKE, 684 (07) - HYDRAULICS

1

1500676C1

GUARD ASSY.

ROCK, INCLUDES SCREWS, NUTS AND WASHERS

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT 5/16-18 X 3/4 HEX. HD

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

3шт.

2

530052R2

VALVE

ASSY, ELBOW PS CHECK, INCLUDES WASHER AND NUT

1шт.

530056R1

WASHER

1шт.

9410059

LOCK NUT,Blkhd, 9/16"-18

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

150062C1

TUBE ASSY, PS PRESSURE REAR

1шт.

5

1500679C1

TUBE ASSY.,6.35 mm OD, 2049, 205 mm Length

BRAKE TO VALVE L.H.

1шт.

6

1500680C1

ADAPTER,M10 x 1 x 7/16"-20, 37º Fl

7/16-20

1шт.

7

1500681C1

O-RING

1шт.

8

9417128

FITTING

TEE

1шт.

9

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

1500669C1

TUBE ASSY.,15.8 mm OD, 325.5, 140.2 mm Length

DRAFT CONTROL RETURN

1шт.

11

1500665C1

TUBE ASSY.

SPARE PART DRAFT CONTROL PRESSURE

1шт.

12

1500662C1

ADAPTER,M18 x 1.5 x 3/4"-16, 37 Degree Fl

M18 X 1.5 1/2 TUBE

1шт.

13

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

M18 X 1.5 5/8 TUBE

1шт.

14

1500663C1

O-RING

2шт.

15

1500658C1

BRACKET

VALVE SUPPORT, INCLUDES BOLTS

1шт.

185282

BOLT 3/8-16 X 3-1/4 HEX. HD

2шт.

16

23323H

SPACER,1/4" Pipe x 1/2"

2шт.

17

1500659C91

VALVE

ASSY, TRAILER BRAKE, BOSCH REF 0538008316

1шт.

17

1500660C91

VALVE

ASSY, TRAILER BRAKE, HAILWOOD AND ACKROYD H20641, INCLUDES BOLTS, WASHERS AND NUTS

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

120376

NUT,5/16"-18, G5

WASHER 5/16 LOCK

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

1500663C1

O-RING

1шт.

19

1500673C1

ADAPTER,M18 x 1.5 x M12 Tube w/Nut

1шт.

20

1500663C1

O-RING

1шт.

21

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

M18 X 1.5 5/8 TUBE

1шт.

22

1500664C1

TUBE ASSY.,15.88 mm OD, 235, 136 mm Length

SPARE PART MCV TO BRAKE VALVE

1шт.

23

1500668C1

TUBE,12 mm OD, 397, 316.7 mm Length

SPARE PART BRAKE VALVE TO COUPLING

1шт.

24

1500671C1

NUT

INCLUDES SLEEVE

1шт.

1500670C1

SLEEVE

OLIVE

1шт.

25

1500675C1

BRACKET

COUPLING SUPPORT, INCLUDES BOLT

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT 1/2-13 X 2 HEX. HD CAP

2шт.

26

3131463R91

QUICK MALE COUPLING

1шт.

1135283R1

CAUTION DECAL

CAUTION, NOT ILLUSTRATED

1шт.
