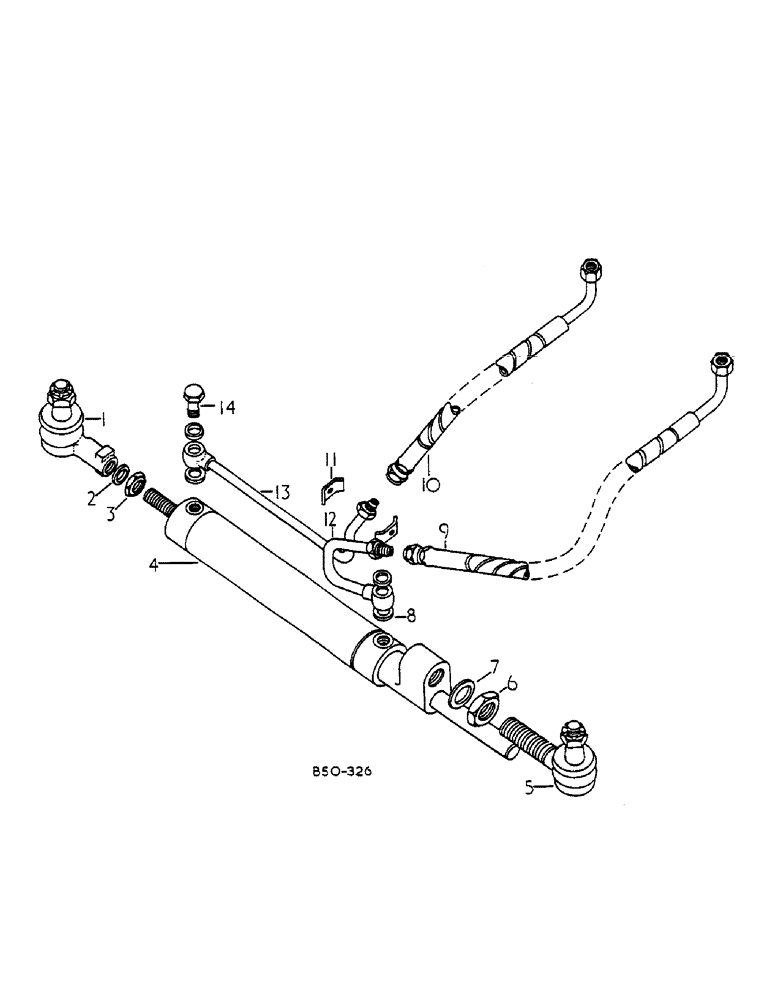

Запчасти Case IH 684 (10-069) - POWER STEERING, 4-WHEEL DRIVE, Z F AXLE (07) - HYDRAULICS

1

3146035R92

BALL JOINT

BALL

1шт.

2

934071R1

LOCK WASHER

J 21 INTERNAL TOOTH

1шт.

3

933707R1

NUT,Thin, M20 x 1.5

M20 X 1.5 HEX JAM

1шт.

4

3146036R94

CYLINDER ASSY.

POWER STEERING, SERVICE PARTS ARE

1шт.

3217433R1

CYLINDER

TUBE

1шт.

3147627R1

ROD ASSY.

PISTON

1шт.

3217435R1

END

GUIDE TOP

1шт.

3147619R1

THRUST RING

BUSHING

1шт.

3147620R1

RING, SNAP

RING SNAP

1шт.

3138018R1

O-RING,3mm Thk x 49mm ID

1шт.

3147621R1

SEALING RING,25mm ID x 33mm OD x 6.4mm Thk

2шт.

3147622R1

SNAP RING

SEAL

2шт.

3147626R2

OIL SEAL

RING, JACKET

1шт.

3147624R1

WIRE

WIRE

1шт.

FOR444613

PLUG

1/8-27 PIPE ZN

1шт.

934724

SCREW M5 X 6 HEX SOC HD

1шт.

3217774R1

FOAM

RING, RETAINER

1шт.

5

3141529R91

BALL JOINT

1шт.

6

934070R1

THIN NUT,Thin, M30 x 1.5

M30 X 1.5 HEX JAM

1шт.

7

934072R1

LOCK WASHER,Serr, M31

J 21 INTERNAL TOOTH

1шт.

8

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

9

3129985R1

HOSE ASSY.

HYD. STEERING CYL. R.H.

1шт.

10

3129984R1

HOSE ASSY.

STEERING CYL. L.H.

1шт.

11

3129983R1

CLAMP

TUBE, INCLUDES BOLT, WASHER AND NUT

2шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

M6 X 25 HEX HD

1шт.

933833R1

LOCK WASHER,M6

1шт.

30281R1

NUT,M6, Cl 10

1шт.

12

3129982R1

TUBE ASSY.

STEERING CYL. R.H.

1шт.

13

3129981R1

TUBE ASSY.

STEERING CYL. L.H.

1шт.

14

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

2шт.
