Запчасти Case IH 684 (10-062) - POWER STEERING, 4-WHEEL DRIVE (07) - HYDRAULICS

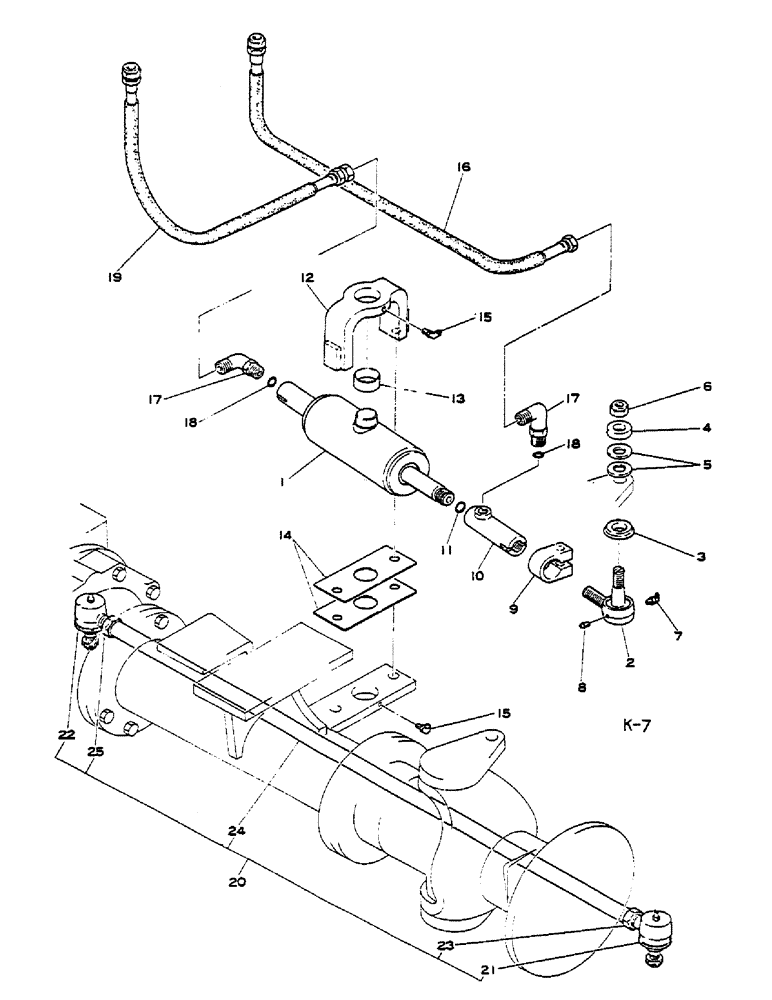

Схема запчастей Case IH 684 - (10-062) - POWER STEERING, 4-WHEEL DRIVE (07) - HYDRAULICS
25
7
19
1
23
22
12
8
21
11
15
10
13
9
24
15
3
4
17
14
2
20
18
16
18
6
5
17

Артикул

Название

Примечание

Количество

1

1062000C94

CYLINDER ASSY.

STEERING, INCLUDES SHIM

1шт.

1062733C1

SHIM

CYLINDER SETTING, AXLE 4019 UP

1шт.

1

984785C93

CYLINDER BLOCK

ASSY, STEERING

1шт.

1

3215346R91

CYLINDER ASSY.

STEERING, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF STEERING CYLINDER 4-WHEEL DRIVE, UP TO AXLE 4018

1шт.

2

1004723C1

BALL JOINT

SOCKET

1шт.

3

984623C1

SEAL

DUST

1шт.

4

189074H1

SOCKET

WASHER

1шт.

5

25538R1

WASHER

2шт.

6

144423H

LOCK NUT,5/8" - 18, GC

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, GREASE

1шт.

8

444687

PLUG,Hex Soc, 1/8"-27

1шт.

9

890356H1

CLAMP

INCLUDES SCREW AND NUT

1шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW 1/2-20 X 2-1/4

1шт.

23439R1

LOCK NUT,1/2"-20, GC

LOCK 1/2-20

1шт.

10

1062002C1

ADAPTER

AXLE 4019 UP

1шт.

10

984671C1

ADAPTER

UP TO AXLE 4018

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

3125337R91

BOLT

ANCHOR ASSY

1шт.

12

984673C2

ANCHOR

OPTIONAL, INCLUDES SCREWS AND WASHERS

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2-13 X 1-3/8

2шт.

131101

LOCK WASHER

1/2"

2шт.

13

379748R1

BUSHING

2шт.

14

984875C1

SHIM

0.04 - 1.0 MM

1шт.

14

984876C1

SHIM

0.02 - 0.5 MM

1шт.

15

1005530C1

FITTING

GREASE

2шт.

16

984788C1

HOSE ASSY.

1шт.

17

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

984789C1

HOSE ASSY.

1шт.

20

984133C6

TIE-ROD

ASSY

1шт.

20

3125847R91

ROD ASSY, TIE, OPTIONAL

1шт.

21

984716C2

END

TIE ROD L.H., INCLUDES NUT, PIN, SEAL AND FITTING

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

1шт.

984749C1

SEAL

DUST

1шт.

974749C1

FITTING

GREASE

1шт.

22

984134C4

END

TIE ROD R.H., INCLUDES NUT, PIN, SEAL AND FITTING

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

1шт.

984749C1

SEAL

DUST

1шт.

974749C1

FITTING

GREASE

1шт.

23

984278C1

NUT

L.H. OR

1шт.

23

890356H1

CLAMP

INCLUDES BOLT AND NUT

1шт.

80289R1

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

1/2-20 X 2-1/2 PHC HEX HD

1шт.

23439R1

LOCK NUT,1/2"-20, GC

1/2-20 LOCK

1шт.

24

984226C4

TUBE

TIE ROD

1шт.

25

530061R1

BOLT (SPREADER)

NUT, R.H. OR

1шт.

25

890356H1

CLAMP

1шт.

80289R1

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

1/2-20 X 2-1/2 PHC HEX HD

1шт.

23439R1

LOCK NUT,1/2"-20, GC

1/2-20 LOCK

1шт.

Выбрано товаров: 50
