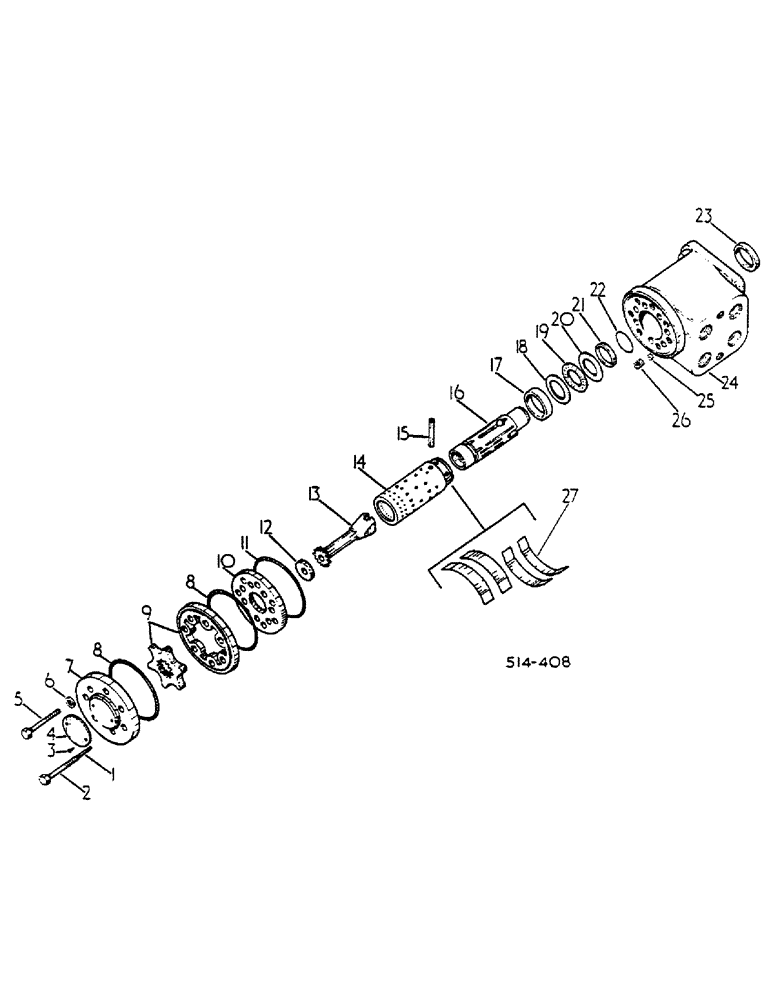

Запчасти Case IH 684 (10-050) - INTEGRAL POWER STEERING VALVE (07) - HYDRAULICS

67698C93

VALVE

ASSY, INTEGRAL POWER STEERING, SERVICE PARTS ARE

1шт.

1

3112271R1

PIN, ROLL

1шт.

2

SCREW

1шт.

3

SCREW

2шт.

4

NS

NOT SERVICED

PLATE, RATING

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

PLAIN

6шт.

5

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

PLAIN

1шт.

6

WASHER, SEE SERVICE PACKAGE

7шт.

7

1500444C1

CAP

END

1шт.

8

O-RING, SEE SERVICE PACKAGE

2шт.

9

538918R1

ROTOR ASSY.

SET, ORBIT DRIVE, CONSISTS OF ITEMS 12 AND 13

1шт.

10

3112276R1

PLATE

VALVE

1шт.

11

O-RING, SEE SERVICE PACKAGE

1шт.

12

538916R1

SPACER

1шт.

13

538915R1

DRIVE SHAFT

LINK

1шт.

14

NS

NOT SERVICED

SLEEVE

1шт.

15

3112269R1

PIN

CROSS

1шт.

16

NS

NOT SERVICED

SLEEVE

1шт.

17

3112264R1

RING

1шт.

18

RACE, NEEDLE BEARING, SEE BEARING ASSY

1шт.

19

BEARING, SEE BEARING ASSY

1шт.

20

WASHER, SEE BEARING ASSY

1шт.

21

RING, KIN, SEE SERVICE PACKAGE

1шт.

22

O-RING, SEE SERVICE PACKAGE

1шт.

23

RING, SEAL, SEE SERVICE PACKAGE

1шт.

24

HOUSING, CONSISTS ITEMS 14 AND 16

1шт.

25

3112270R1

BALL

STEEL

1шт.

26

3112272R1

BUSHING

THREADED

1шт.

27

SPRING, LEAF, SEE SERVICE PACKAGE

2шт.

27

SPRING, LEAF, SEE SERVICE PACKAGE

2шт.

3234338R91

BEARING SET

ASSY, NOT ILLUSTRATED, CONSISTS OF ITEMS 18, 19 AND 20

1шт.

1500443C91

SEAL KIT

PACKAGE, SEAL AND SPRING SERVICE, NOT ILLUSTRATED, CONSISTS OF

1шт.

RING, DUST SEAL

1шт.

SEAL, LIP

1шт.

O-RING

1шт.

O-RING

2шт.

WASHER

7шт.

SPRING, LEAF

2шт.

SPRING, LEAF

2шт.
