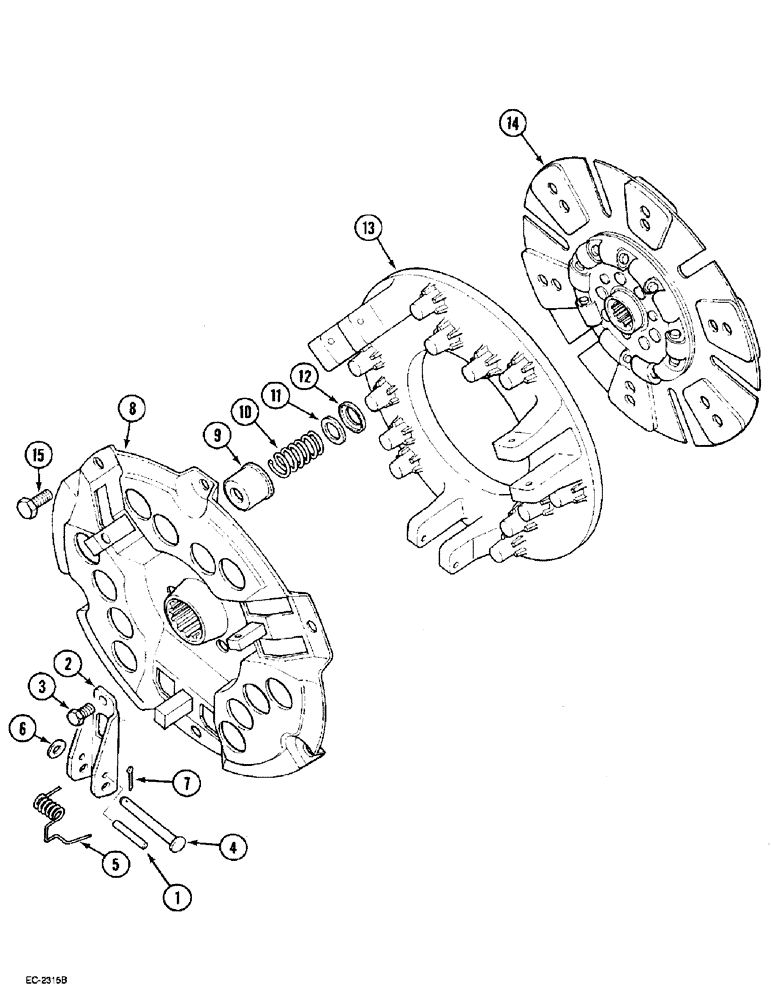

Запчасти Case IH 684 (07-051) - CLUTCH, 12 INCH, 684/8071 UP, 685/10000 UP Invalid section

85025C2

CLUTCH ASSEMBLY

PLATE, 61023 Consists Of : 1 - 13

1шт.

85025C2R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE, 12 in, 10 Tooth Hub

1шт.

85025C2C

CORE-CLUTCH PLATE

Return Part Number

1шт.

84342556R

REMAN-CLUTCH PLATE

685 (1/81-12/85), 684 (EUROPE) (1/77-12/81), Reman For New PN 85025C2

1шт.

84342556C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1

140296A1

PIVOT PIN

3шт.

85120C91

PACKAGE

61023 Consists Of : 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER

3шт.

3

129219A1

ADJUSTMENT SCREW,Hex, 3/8" - 24 x 1/2", Gr 8

3шт.

4

149487R1

PIN

3шт.

5

375572R1

SPRING

3шт.

6

95-11034

WASHER,1/4"

11/32 x 11/16 x 1/16

3шт.

7

32-610

COTTER PIN,3/32" x 5/8"

3шт.

8

85148C91

PLATE

back

1шт.

9

353316R1

SPRING CUP

12шт.

10

349934C1

SPRING

12шт.

11

311291C1

INSULATING WASHER

12шт.

12

311292C1

WASHER

12шт.

13

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

1шт.

14

85026C3

CLUTCH DISC,305mm OD

CLUTCH DISK PLATE driven

1шт.

14

85026C3R

REMAN-CLUTCH DISC

Remanufactured, 12 in., 10Tooth hub, 1 1/8 in. OD splines, 6 button

1шт.

14

85026C3C

CORE-CLUTCH DISC

Return Part Number

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.
