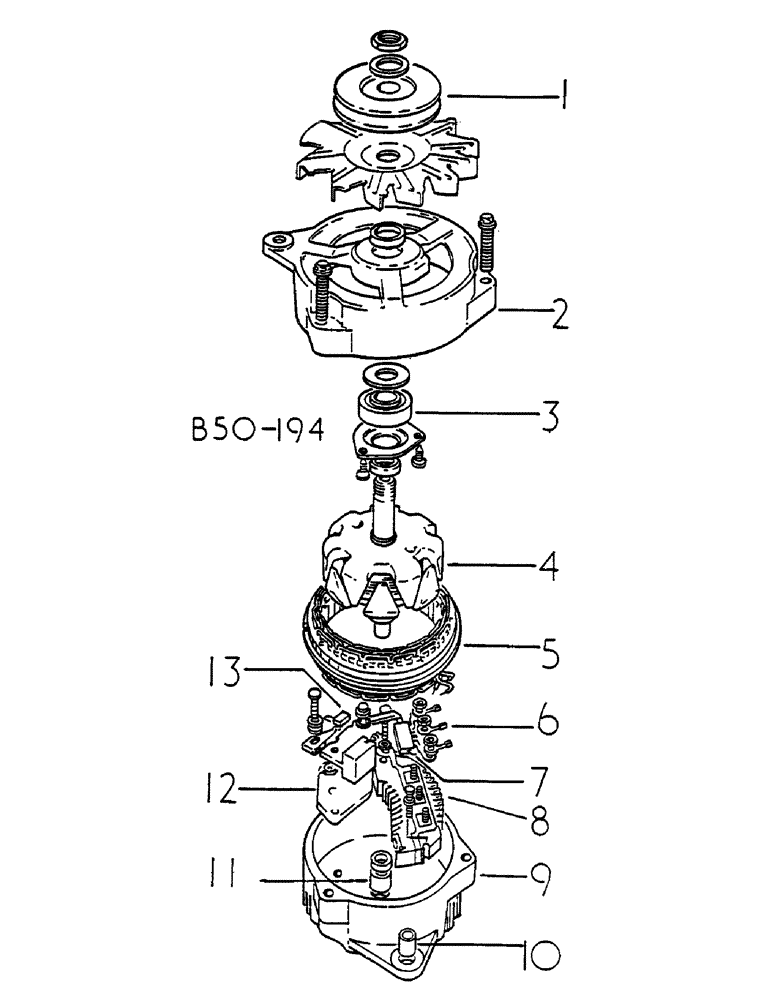

Запчасти Case IH 684 (08-064) - ALTERNATOR, AC DELCO (06) - ELECTRICAL

3129075R91

ALTERNATOR

1шт.

1

3129077R1

PULLEY

1шт.

2

3129060R1

FRAME

D.E.

1шт.

3

3129061

BEARING, D.E.

1шт.

4

3129062R1

ROTOR ASSY.

1шт.

5

3129063R1

STATOR

ASSY

1шт.

6

3129069R1

TERMINAL CONNECTOR

POSITIVE, INCLUDES BLOCK AND CLIP

1шт.

3129070R1

BLOCK

TERMINAL

1шт.

3129071R1

CLIP

SOCKET

1шт.

7

3129064R1

RECTIFIER

ASSY DIODE

1шт.

8

3129065R1

SUPPORT ASSY.

ASSY RECTIFIER AND INSULATOR

1шт.

9

3129072R1

FRAME ASSY

W/BUSHING S.R.E.

1шт.

10

3129073R1

BUSHING

1шт.

11

3129074R1

BEARING

ROLLER S.R.E.

1шт.

12

3129068R1

REGULATOR

SPARE PART ASSY

1шт.

13

3129066R1

BRUSH ASSY.

AND TERMINAL, INCLUDES SPRING

1шт.

3129067R1

SPRING

BRUSH

1шт.
