Запчасти Case IH 684 (08-038) - PLOUGH LAMP (06) - ELECTRICAL

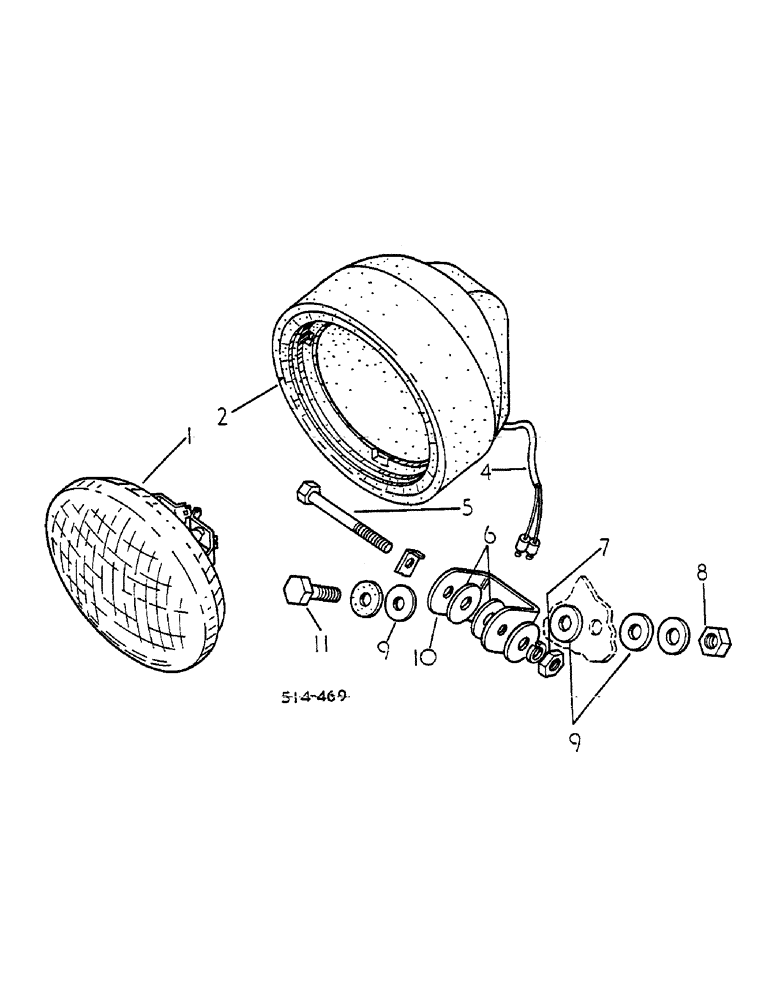

Схема запчастей Case IH 684 - (08-038) - PLOUGH LAMP (06) - ELECTRICAL
5
6
9
11
4
9
7
1
10
2
8

Артикул

Название

Примечание

Количество

1

390756R91

LAMP

SEALED BEAM, 684/8849, H84/2244, 268/597 UP

1шт.

2

3125880R1

HOUSING

LAMP, CASING

1шт.

3

NOT USED

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS, CABLE

1шт.

5

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT 1/4 UNF X 2 HEX. HD

1шт.

5

3072945R1

WASHER

TAB

1шт.

6

3112690R1

WASHER

NYLON

2шт.

7

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4 UNF HEX, INCLUDES WASHERS

1шт.

16559R1

WASHER,1/4"

17/64 X 5/8

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

Includes washer

1шт.

120394

WASHER,3/8", SAE

FLAT STEEL

1шт.

9

3112401R1

WASHER

NYLON

3шт.

10

3108515R1

SUPPORT

BRACKET, LAMP

1шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Includes Washer

1шт.

120394

WASHER,3/8", SAE

FLAT STEEL

1шт.

3125881R1

BRACKET

PLOUGH LAMP, INCLUDES SCREWS, NOT ILLUSTRATED

1шт.

24374R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

Deluxe lighting, Not illustrated

4шт.

Выбрано товаров: 18
