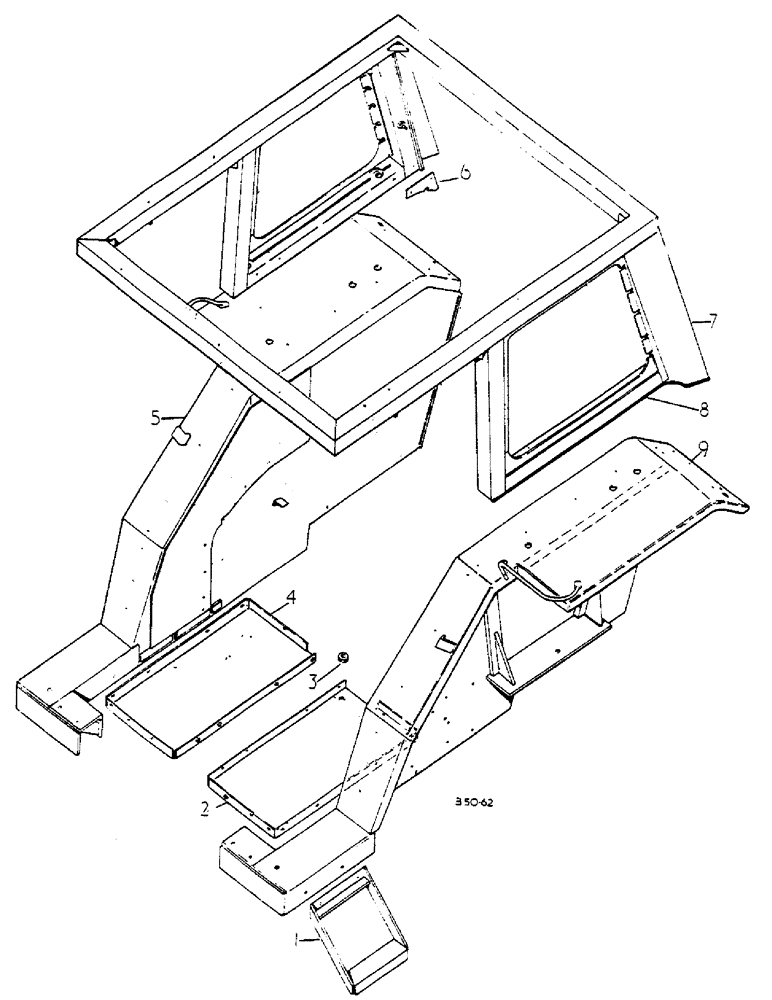

Запчасти Case IH 684 (13-040) - SAFETY FRAME, MACHINES FITTED WITH CAB (05) - SUPERSTRUCTURE

1

3116153R1

STEP

FOOT ASSY, INCLUDES SCREWS, NUTS AND WASHERS

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

4шт.

2

3116149R2

PLATFORM

CPTE, L.H., INCLUDES NUTS, SCREWS AND WASHERS

1шт.

3112992R1

NUT

INSERT 1/4-20

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

6шт.

120394

WASHER,3/8", SAE

.406 ID X .812 OD X .051 PLN

6шт.

3

3116180R1

GROMMET

PLATFORM L.H.

1шт.

4

3116150R3

PLATFORM

CPTE, R.H., INCLUDES NUTS, SCREWS AND WASHERS

1шт.

3112992R1

NUT

INSERT 1/4-20

6шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

6шт.

120394

WASHER,3/8", SAE

.406 ID X .812 OD X .051 PLN

6шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

5

3121998R1

FENDER

AND FRAME ASSY, R.H.

1шт.

6

3121996R1

FILLER

SPARE PART REAR SIDE TUBE PANEL, INCLUDES SCREWS

2шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X .50 TAPTITE HEX WASHER

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL

4шт.

7

3121970R93

FRAME ASSY

SAFETY, INCLUDES BOLTS AND NUTS

1шт.

24894R1

BOLT,Hex, 3/4" - 10 x 4", Gr 8

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 HEX, FRAME TO FENDERS

4шт.

8

3123059R1

SEAL

FRAME TO FENDER, BULK LENGTH 150 FEET

2шт.

9

3121997R1

FENDER

AND FRAME ASSY, L.H.

1шт.

3125820R1

SLEEVE

PVC, FOR USE W/FENDER AND FRAME ASSY'S CPTE., NOT ILLUSTRATED

2шт.
