Запчасти Case IH 684 (13-027) - STEERING SUPPORT (05) - SUPERSTRUCTURE

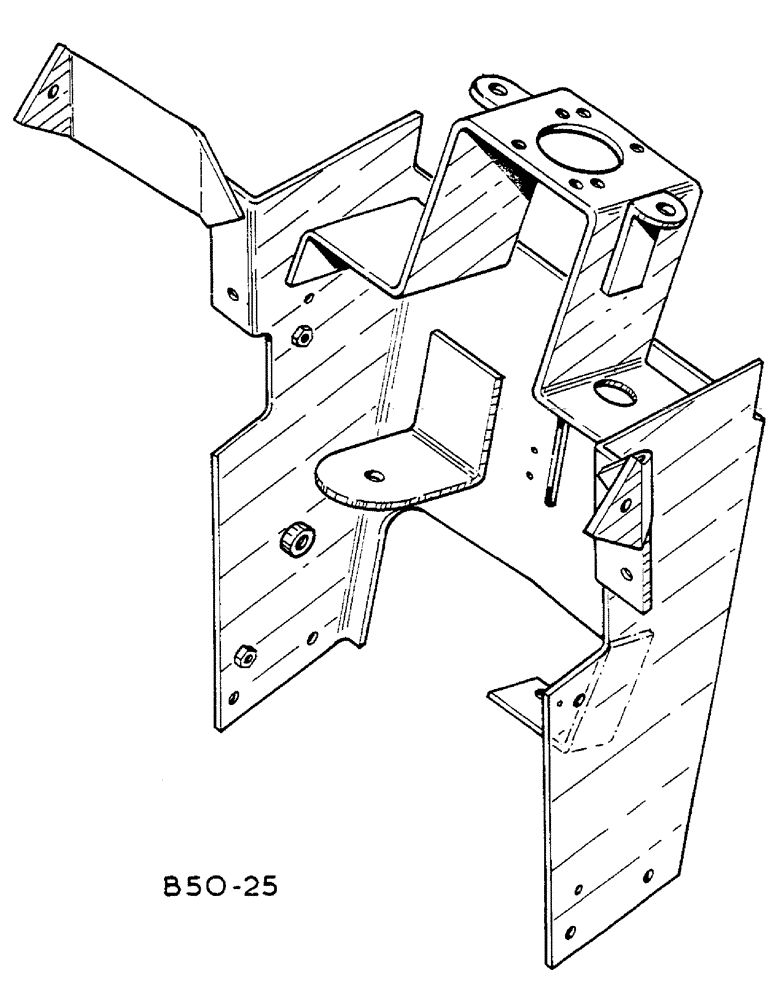

Схема запчастей Case IH 684 - (13-027) - STEERING SUPPORT (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

3121632R2

SUPPORT ASSY.

STEERING, INCLUDES SCREWS

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Machine not fitted w/cab, super de-luxe cab

4шт.

1

3123011R1

SUPPORT ASSY.

STEERING, MACHINE FITTED W/CAB, SYNCHROMESH DRIVE TRACTORS, INCLUDES SCREWS AND WASHERS

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

1

3121635R2

SUPPORT ASSY.

STEERING, INCLUDES SCREWS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Machine not fitted w/Cab, Super De-luxe Cab, 4WD, Hydrostatic Drive

4шт.

1

3123012R1

SUPPORT ASSY.

STEERING, MACHINE FITTED W/CAB, HYDROSTATIC DRIVE TRACTORS, INCLUDES SCREWS, WASHERS AND BUSHINGS

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

536704R1

BUSHING

CONTROL HANDLE CLAMP MOULDING, EDGE 328.5 MM

2шт.

1

3123731

SEAL, FILLER STRIP, BULK LENGTH 30M

1шт.

Выбрано товаров: 12
