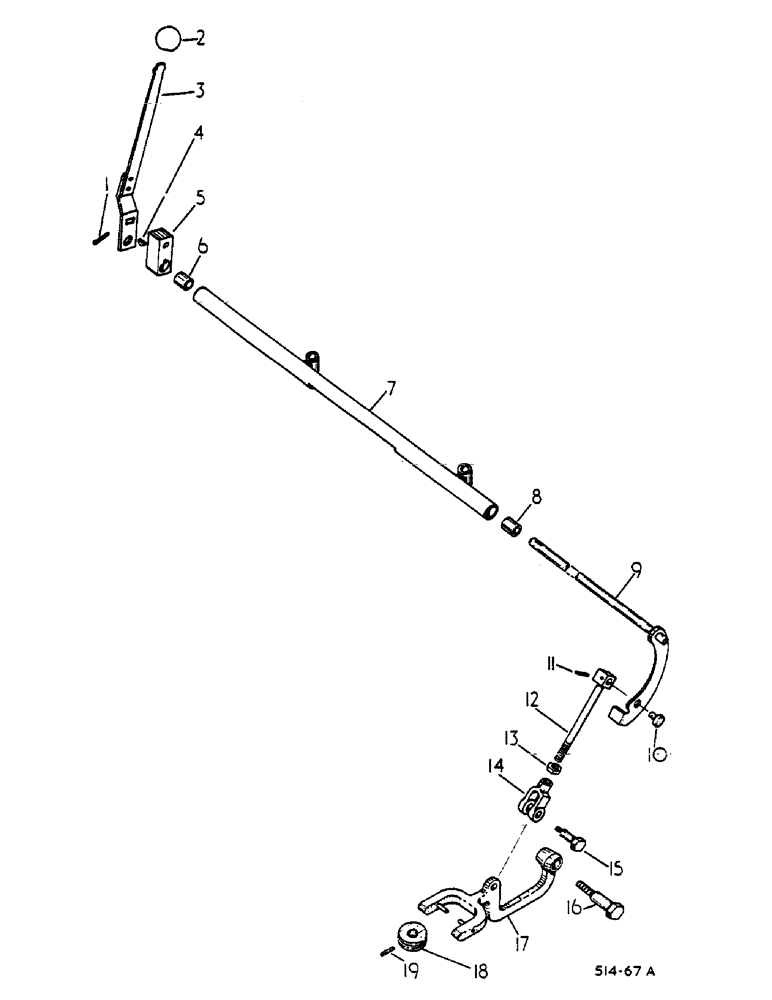

Запчасти Case IH 684 (07-126) - POWER TAKE-OFF LEVER AND CONNECTIONS, 684 (04) - Drive Train

1

103385

COTTER PIN,1/8" x 1"

Includes washer

1шт.

21903R1

WASHER

17/32 X 3/4 X .060

1шт.

2

530090R1

KNOB

IPTO HAND LEVER

1шт.

3

538720R1

LEVER ASSY.

IPTO ADJ, INCLUDES BOLT, NUT AND WASHER

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT 5/16-18 X 1-1/4 SQ NK CRG

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

4

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

5

538719R1

PIVOT

IPTO CONTROL HANDLE

1шт.

6

528839R1

BUSHING

CONTROL SHAFT SUPPORT

1шт.

7

537184R91

SUPPORT ASSY.

CONTROL SHAFT

1шт.

8

528839R1

BUSHING

CONTROL SHAFT SUPPORT

1шт.

9

401741R1

SHAFT ASSY.

IPTO CONTROL CROSS-OVER

1шт.

10

535453R1

PIN

IPTO ROD

1шт.

11

103375

COTTER PIN,3/32" x 1 1/4"

1шт.

12

535450R1

ROD ASSY.

IPTO CONTROL

1шт.

13

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

14

528837R1

CLEVIS,5/16" - 24

IPTO CONTROL

1шт.

15

530809R1

BOLT,Shoulder, Hex, 1/4" - 28 x 1.06"

SHOLDER

1шт.

16

401754R1

BOLT,3/8" - 16 x 2.20"

BOLT, CONTROL ARM PIVOT SHAFT, INCLUDES SPACERS, SCREWS AND WASHERS

1шт.

704664R1

WASHER

SPACER, TRACTORS W/HAND-OPERATED DRUM BRAKES

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

17

401749R2

LEVER ASSY.

CONTROL

1шт.

18

530813R2

GUIDE BUSHING

COLLAR, IPTO CONTROL

1шт.

19

25215R1

PIN,3/16" x 7/8", Coiled

1шт.
