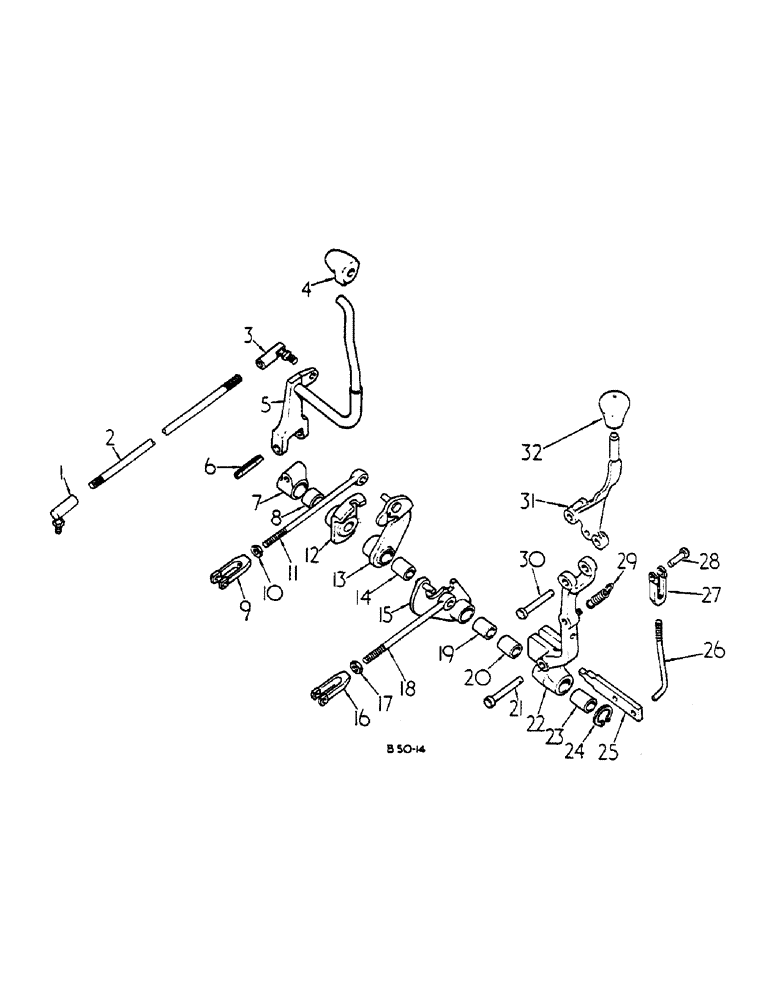

Запчасти Case IH 684 (07-106) - TRANSMISSION CONTROLS, SYNCHROMESH DRIVE, 684 (04) - Drive Train

1

D149295

BALL JOINT,3/8"

3/8 UNF

1шт.

1

442708

BALL JOINT

3/8 UNF

1шт.

1

158397H

JOINT, 3/8 UNF BALL, OPTIONAL, INCLUDES NUTS

1шт.

103026

NUT,3/8"-24, G5

Up to 3179

3шт.

1

3123927R1

JOINT

3/8 UNF BALL, 3180 UP, INCLUDES NUTS

1шт.

3048059R1

NUT LOCK 3/8 UNF NYLON INSERT

2шт.

2

528122R1

ROD

SPEED SHIFT LEVER, UP TO 3179, ORDER ROD 3123926R1, JOINT 3123927R1, 3123928R1 AND NUT 3048059R91

1шт.

2

3123926R1

ROD

SPEED SHIFT LEVER, 3180 UP

1шт.

3

D149295

BALL JOINT,3/8"

3/8 UNF

1шт.

3

442708

BALL JOINT

3/8 UNF

1шт.

3

158397H

JOINT, 3/8 UNF BALL, OPTIONAL, INCLUDES NUTS

1шт.

103026

NUT,3/8"-24, G5

Up to 3179

2шт.

3

3123928R1

JOINT

3/8 HNF BALL L.H. THREAD, 3180 UP

1шт.

4

379022R2

KNOB

SPEED SHIFT LEVER

1шт.

5

530532R1

LEVER

ASSY, SPEED SHIFT

1шт.

6

366281R1

PIN,3/8" x 2", Coiled

1шт.

7

530932R1

HUB ASSY.

TRANSMISSION SHIFT HAND LEVER, INCLUDES WASHER

1шт.

615192R1

WASHER

29/32 X 1-1/4 X .0299

1шт.

8

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

9

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS 3/8-24 X 2-1/4 ROD END

1шт.

9

213-316

ADJUSTABLE CLEVIS,3/8" - 24

3/8-24 X 2-3/16 SHORT ADJ ROD END

1шт.

9

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 X 2-1/2 ROD END, OPTIONAL, INCLUDES PINS AND WASHER

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

3/8 X 1-7/32 ROD END

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

10

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

528141R1

ROD ASSY.

RANGE SHIFT REAR

1шт.

12

528123R1

PIVOT ASSY.

GATE, RANGE SHIFT, INCLUDES PIN

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

13

528126R2

LEVER ASSY.

IDLER SHAFT INNER, INCLUDES WASHER AND PIN

1шт.

Q3641

WASHER

13/32 X 3/4 X .020

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

14

539245R1

BUSHING

1шт.

15

528129R1

LEVER ASSY.

IDLER SHAFT OUTER, INCLUDES WASHER AND PIN

1шт.

Q3641

WASHER

13/32 X 3/4 X .020

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

16

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS 3/8-24 X 2-1/4 ROD END

1шт.

16

213-316

ADJUSTABLE CLEVIS,3/8" - 24

3/8-24 X 2-3/16 SHORT ROD END

1шт.

16

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3/8-24 X 2-1/2 ROD END, OPTIONAL, INCLUDES PINS AND WASHER

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

3/8 X 1-7/32 ROD END

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

17

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

528139R1

ROD ASSY.

RANGE SHIFT FRONT

1шт.

19

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

20

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

21

22963R1

HEADED PIN,5/16" x 2 1/4"

5/16 X 2-1/4 STD HD

1шт.

22

530933R1

LEVER

ASSY, RANGE SHIFT, INCLUDES WASHERS AND PINS

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X .051

2шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

23

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

1шт.

24

454331R1

SNAP RING,#87, Ext

Shift lever

1шт.

25

528134R1

LATCH

RANGE SHIFT LEVER

1шт.

26

528135R1

ROD

RANGE SHIFT LEVER, INCLUDES WASHERS AND PINS

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X .051

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

27

104037

CLEVIS

5/16-24 X 2-1/4 ROD END

1шт.

27

161002C1

NO LONGER SERVICED

CLEVIS CLEVIS, 5/16-24 X 2-1/4 ROD END, OPTIONAL

1шт.

28

39374D

CLEVIS PIN,5/16" x 1 1/16"

5/16 X 1-1/16 ROD END

1шт.

29

528136R1

SPRING

SHIFT LEVER RETURN

1шт.

30

22963R1

HEADED PIN,5/16" x 2 1/4"

5/16 X 2-1/4 STD HD

1шт.

31

3121199R1

LEVER

RANGE SHIFT UPPER

1шт.

32

3121549R1

KNOB

KNOB, RANGE SHIFT UPPER LEVER

1шт.
