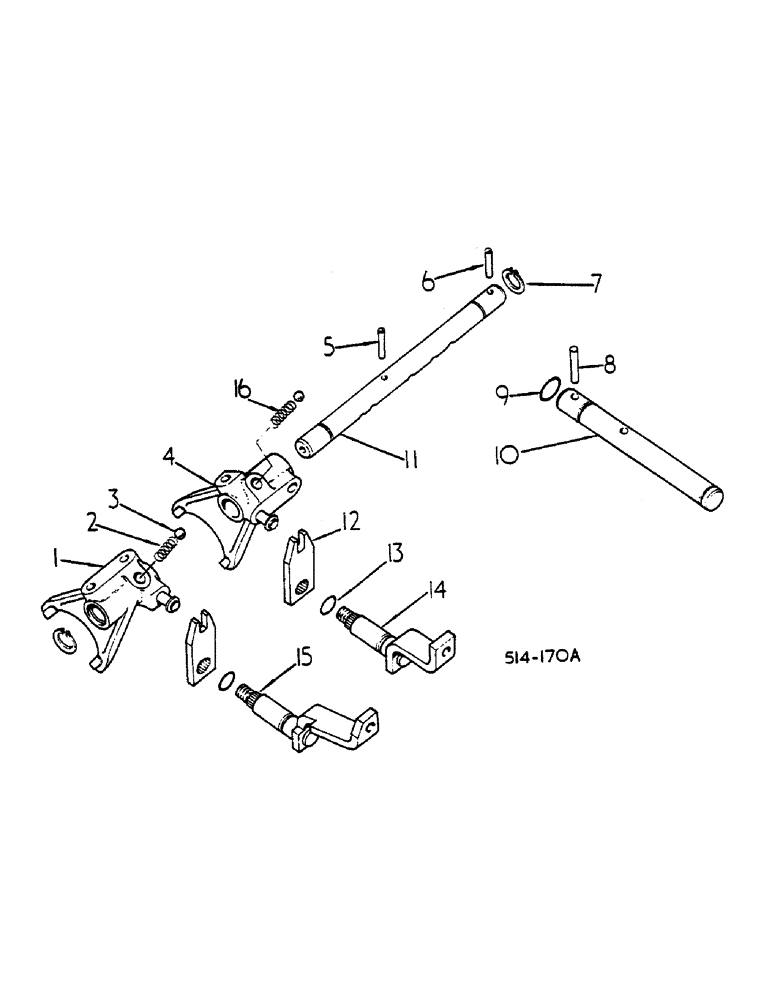

Запчасти Case IH 684 (07-102) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION, 684 (04) - Drive Train

1

538911R4

FORK

FRONT

1шт.

2

103062C1

SPRING

POPPET BALL, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

1шт.

3

17013R1

BALL,13/32" Dia

2шт.

3

16013R1

BALL

13/32 CR-STL, OPTIONAL, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

4

538912R4

FORK

REAR, SYNCHROMESH DRIVE TRACTORS

1шт.

4

538913R4

FORK

HYDROSTATIC DRIVE TRACTORS

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail, 2 used for hydrostatic drive tractors

3шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 X 7/8 X 3/32

1шт.

10

402152R1

SHAFT

RANGE TRANS. SHIFT LEVER IDLER, SYNCHROMESH DRIVE TRACTOR

1шт.

10

527853R1

SHAFT

HYDROSTATIC RANGE SHIFT LEVER, HYDROSTATIC DRIVE TRACTOR, USED ON SYNCHROMESH W/FORWARD AND REVERSE

1шт.

11

537473R3

RAIL

RANGE SHIFT FORK, SYNCHROMESH DRIVE TRACTORS

1шт.

11

402150R1

RAIL

RANGE SHIFT FORK, HYDROSTATIC DRIVE TRACTORS

1шт.

12

405169R2

ARM

RANGE SHIFT INNER, 1 USED FOR HYDROSTATIC DRIVE TRACTORS, INCLUDES NUTS

2шт.

19605R1

LOCK NUT,1/2"-13, GB

1/2-13 NYLON INSERT, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32, 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

14

405167R2

ARM

ASSY, RANGE SHIFT OUTER REAR, INCLUDES WASHERS

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060

2шт.

15

405164R2

ARM

ASSY, RANGE SHIFT OUTER FRONT, SYNCHROMESH DRIVE TRACTORS, INCLUDES WASHERS

1шт.

Q3501

WASHER

25/32 X 1-1/4 X .060

2шт.

16

534053R1

SPRING

POPPET BALL

1шт.
