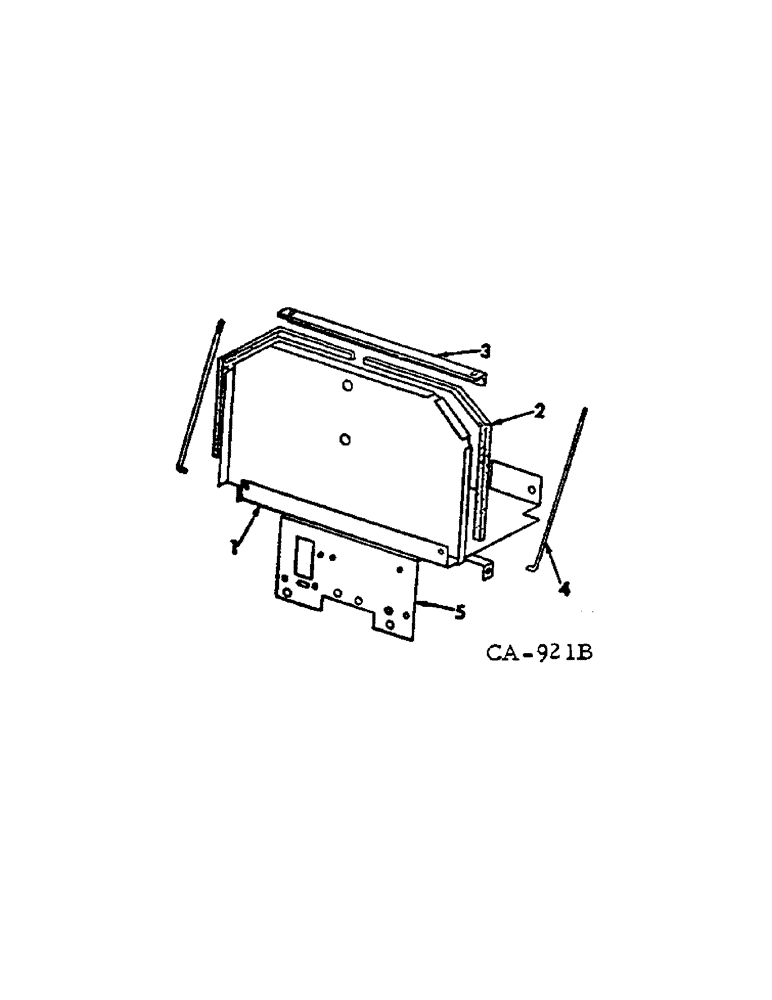

Запчасти Case IH 674 (08-18) - ELECTRICAL, BATTERY TRAY, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL

1

536334R2

TRAY ASSY, battery

1шт.

20893R1

WASHER

11/32 x 1 x .120 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

2

GASKET, battery heat shield, furnish 28 in. from 4 ft. length marked 73217C1

2шт.

3

527603R1

BRACKET

battery hold down

1шт.

4

527605R3

ROD

battery hold down

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .052 C-Z

2шт.

142745

NUT, WING

NUT, 5/16-18 C-Z wing

2шт.

5

527609R3

SUPPORT

1шт.
