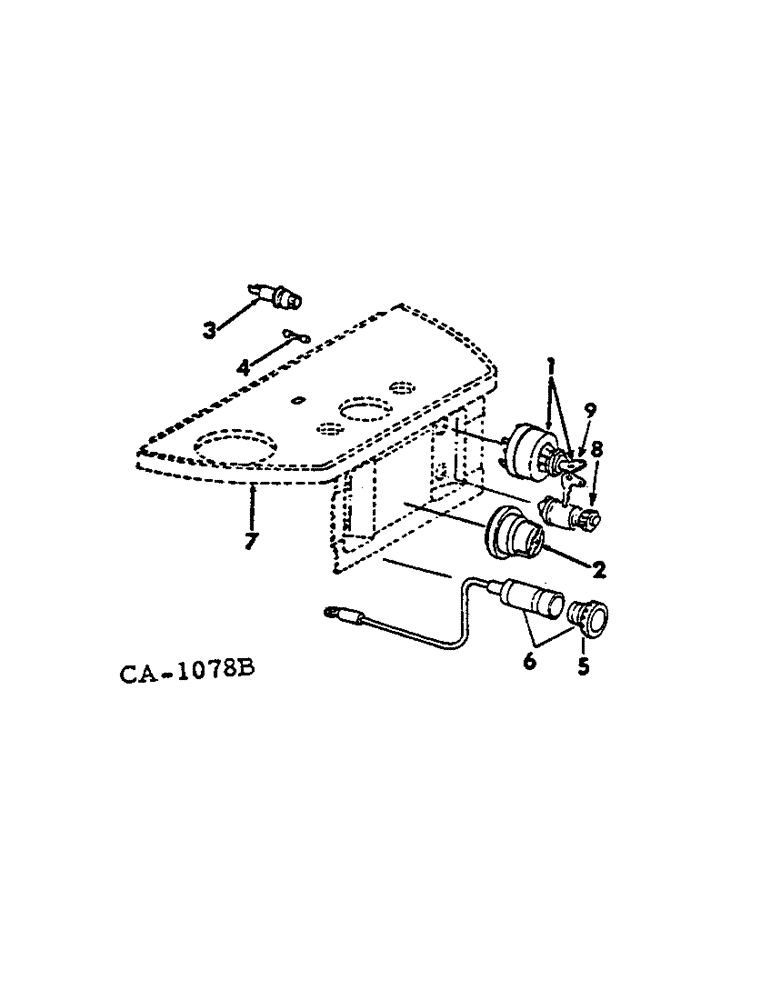

Запчасти Case IH 674 (08-17) - ELECTRICAL, ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL

1

529800R91

SWITCH ASSY

ignition key; Use With K962338 Key, Which Replaces 3110259R1 Key, Serial Range: -108104

1шт.

534211R1

SPRING WASHER

spring

1шт.

371486R1

NUT, 5/8-32 hex.

1шт.

1

107682C1

SWITCH

ASSY, ignition key, Start Serial: 108104

1шт.

375431R1

LOCK WASHER

switch mounting

1шт.

365502R1

NUT

ignition key mounting

2шт.

2

376851R92

SWITCH

ASSY, lighting, Serial Range: -108104

1шт.

2

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting, Start Serial: 108105

1шт.

3

376852R91

HOUSING

fuse

1шт.

4

432644

FUSE,20 Amp, Type SFE

cartridge SFE-20

1шт.

5

378781R91

PACKAGE

UNIT, popout

1шт.

6

378338R91

CIGAR LIGHTER

LIGHTER ASSY, cigarette

1шт.

7

PANEL ASSY, instrument, refer to instrument panel and gauges listing, section 11

1шт.

8

SWITCH ASSY, horn, refer to horn listing

1шт.

9

3110259R1

KEY

ignition, Serial Range: -108104

2шт.

9

382458R2

KEY

ignition switch, Start Serial: 108105

1шт.
