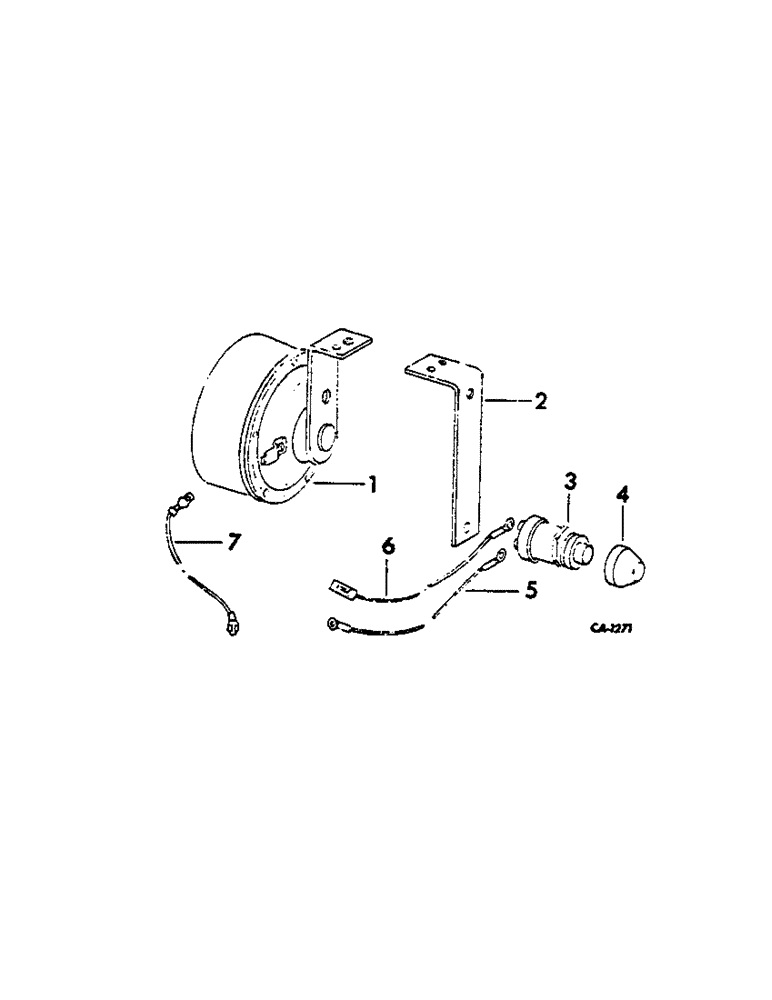

Запчасти Case IH 674 (08-17[1]) - ELECTRICAL, HORN (06) - ELECTRICAL

1

9000239

HORN

ASSY, electric

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

529601R1

BRACKET, horn mounting

1шт.

109084

NUT,1/4"-20, G5

1/4"-28 hex

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Carbureted Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

3

393209R91

SWITCH

horn

1шт.

4

371487R1

CYLINDER END CAP

CAP, dust

1шт.

5

404391R1

CABLE

ASSY, horn switch to junction block

1шт.

6

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

7

377422R91

CABLE ASSY, harness, Serial Range: jucntion-horn

1шт.
