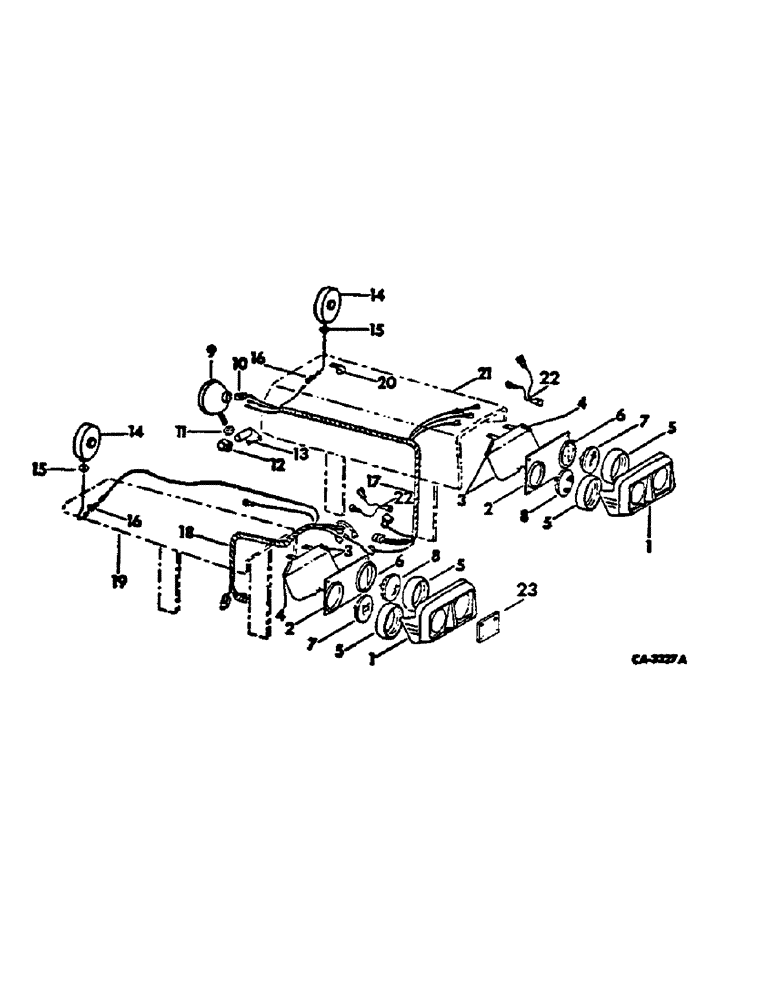

Запчасти Case IH 674 (08-15) - ELECTRICAL, DELUXE FENDER WIRING (06) - ELECTRICAL

1

529811R1

HOUSING, head light

2шт.

125678

BOLT

SCREW, 5/16-18 x 5/8 slt-truss-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

231-1445

NUT,5/16"-18, GB

NUT. 5/16-18 zn nylon insert hex.

4шт.

2

532036R1

COVER

headlamp rear

2шт.

3

539229R1

SHIELD

ASSY, headlight LH

1шт.

3

529230R1

SHIELD ASSY, headlight RH

1шт.

4

529815R1

MOULDING

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 znd

1шт.

HEX, washer, hd tap

4шт.

5

529674R1

RETAINER

fender head light, 2 used for carbureted tractors

4шт.

6

377305R1

RING

head light clamping

4шт.

153326

SCREW,Cross Fil Hd, #10 - 24 x 1 1/2"

10-24 x 1-1/2 cr-rec-rd-hd

8шт.

7

373662R91

LAMP

UNIT ASSY, head light sealed beam

2шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, no. 1156, 12 volt

1шт.

8

390756R91

LAMP

UNIT ASSY, flood sealed beam, tractors w/o loader

2шт.

9

387729R92

LIGHT ASSY.

LIGHT ASSY, sealed beam combination, only serviceable items are bulb 455490, lamp 371461R92 and retainer 676078R1, replaces 377102R92

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear and tail light

1шт.

11

365503R1

SPACER

combination rear and tail light

1шт.

12

350920R1

CLAMP

combination rear and tail light

1шт.

13

529672R1

BRACKET

ASSY, combination rear lamp

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

14

67538C92

HEADLIGHT

LIGHT ASSY, flashing warning, only serviceable item is lamp 9417866, replaces 536679R91

2шт.

120371

NUT,1/2"-20, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

2шт.

15

(Not used this application)

1шт.

16

376749R1

BODY

CONNECTOR, flashing warning light

2шт.

17

529665R3

HARNESS

ASSY, LH fender, Serial Range: -108104

1шт.

17

114601C1

HARNESS ASSY, LH fender, Start Serial: 108105

1шт.

18

529666R3

HARNESS

ASSY, RH fender

1шт.

19

FENDER ASSY, RH, refer to rear fenders listing, section 13

1шт.

20

358986R1

CABLE CLIP

CLIP, flashing warning light cable

1шт.

21

FENDER ASSY, LH, refer to rear fenders listing, section 13

1шт.

144227

SPIDER, REEL

fender cables

4шт.

22

405229R1

CABLE

ASSY, head lamp, Serial Range: junction-ground

1шт.

23

538606R1

COVER, flood light opening front, used on tractors with 2050A loader also used on tractors with 18.4-26, 14.9-28, 16.9-28, 14.-30, 16.9-30 and 13.9-36 tires

2шт.

159967

SCREW,Cross Pan Hd, #10 - 24 x 1 1/2"

10-24 x 1-1/2 zn pan-hd-mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.
