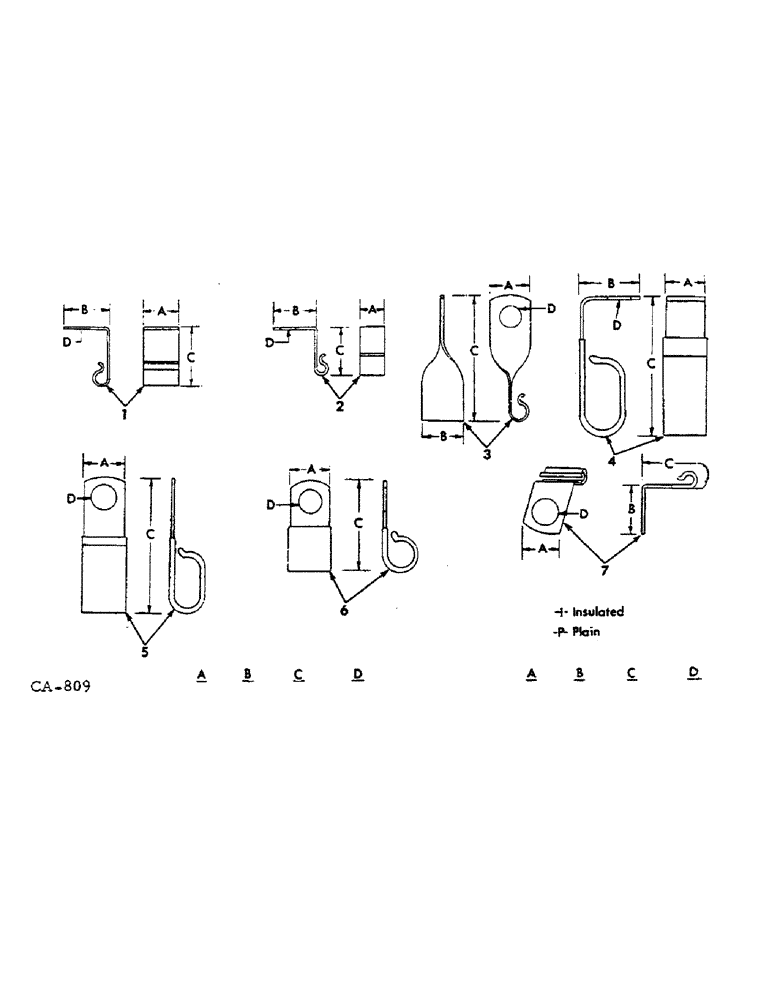

Запчасти Case IH 674 (08-14) - ELECTRICAL, CLIPS (06) - ELECTRICAL

1

370383R1

CLIP

3/4, 15/16, 1-7/8, 15/32 (I)

1шт.

2

(Not used in this application)

1шт.

3

363660R1

CLIP

3/4, 3/4, 2-5/8, 13/32 (I)

1шт.

4

(Not used in this application)

1шт.

5

362666R1

CLIP

3/4, 2-1/2, 15/32 (I)

1шт.

5

400505R1

CLAMP

3/4, 2-1/4, 17/32 (I)

1шт.

6

362127R1

CLIP

3/4, 1-1/4, 13/32 (I)

1шт.

6

362123R1

CLIP

3/4, 1-1/2, 15/32 (I)

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

3/4, 1-9/16, 13/32 (I)

1шт.

6

384557R1

CLIP

3/4, 1-5/8, 9/32 (I)

1шт.

6

362123R1

CLIP

3/4, 5-1/8, 15/32 (I)

1шт.

6

384559R1

CLIP

3/4, 2-9/16, 13/32 (I)

1шт.

6

362126R1

CLIP

3/4, 3-5/8, 13/32 (I)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

6

362126R1

CLIP

3/4, 3-5/8, 13/32 (I)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

102635

NUT,3/8"-16, G5

1шт.

7

384556R1

CLAMP

3/4, 1, 1-61-64, 15/32 (I)

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
