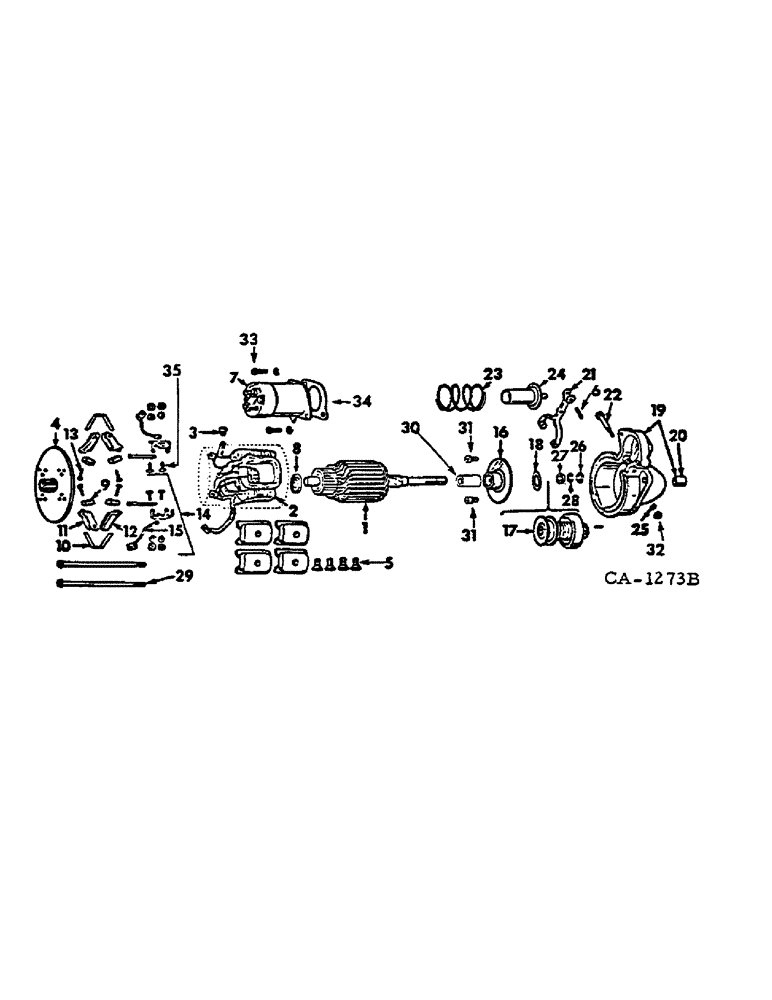

Запчасти Case IH 674 (08-04) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL

1

1108394

SPARE PART MOTOR ASSY, cranking, 403299R91

1шт.

1

104191A1R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104191A1C

CORE-STARTER

Return Number

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

120381

WASHER

WASHER, 3/8 C-Z light lock

1шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

1шт.

2

1950307

ARMATURE

ARMATURE

1шт.

3

1935128

COIL

COIL ASSY, field

1шт.

4

1966391

GROMMET

GROMMET

1шт.

5

1928966

FRAME

FRAME, commutator end

1шт.

6

1970469

SCREW

SCREW, pole shoe

4шт.

7

455106

PIN

PIN, plunger attach to shift lever

1шт.

8

1114356

SOLENOID,Starter

SWITCH, solenoid, optional w/65478C1

1шт.

8

65478C1

SWITCH

SWITCH, solenoid, optional w/1114356

1шт.

9

1914842

WASHER

WASHER, commutator end space

1шт.

10

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

11

1926622

VALVE SPRING

SPRING, brush

2шт.

12

1940477

HOLDER

HOLDER, ground brush

2шт.

13

1926618

HOLDER

HOLDER, insulated brush

2шт.

14

1967747

SCREW

SPARE PART SCREW, brush attaching insulated

2шт.

14

443527

SCREW, brush attaching ground

2шт.

15

1928015

BRACKET

PACKAGE, brush holder support

2шт.

16

1960864

BRUSH, COMMUTATOR

BRUSH LEAD, brush ground, replaces 1926605

2шт.

17

820149

PLATE

PLATE, center bearing

1шт.

18

1932897

DRIVE

DRIVE ASSY, motor

1шт.

19

821453

WASHER

brake

1шт.

20

1965429

HOUSING

HOUSING, drive

1шт.

1916439

WICK

WICK, drive end

1шт.

21

1862383

BUSHING

BUSHING, drive end

1шт.

22

1951567

LEVER

LEVER, shift

1шт.

23

1932197

SCREW

STUD, shift lever

1шт.

24

1958679

SPRING

SPRING, plunger return

1шт.

25

1941113

PLUNGER

PLUNGER, solenoid switch

1шт.

26

9421424

LOCK WASHER

WASHER, shift lever stud

1шт.

27

1928023

WASHER

COLLAR, thrust

1шт.

28

1928021

COLLAR

COLLAR, end pinion stop

1шт.

29

1928022

SNAP RING

RING, pinion stop retainer

1шт.

30

A41342

BOLT

BOLT, thru

2шт.

31

820148

BUSHING

BUSHING, center bearing

1шт.

32

132900

BOLT,Sl Rnd Hd, #10 - 32 x 3/8"

SCREW, center bearing attaching

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

NUT, , Shift lever 5/16"-18, G5

1шт.

34

132255

SPARE PART SCREW, switch attaching Slotted Fil Hd, 1/4"-20 x 1/2"

1шт.

35

1952427

GASKET

GASKET, solenoid switch

1шт.

36

274738

BOLT

brush holder

1шт.

1935131

COIL

SHUNT, field coil

1шт.

1927853

FOAM INSULATION

INSULATOR, field coil

1шт.

1962276

WASHER

WASHER, center bearing brake plate lock

1шт.
