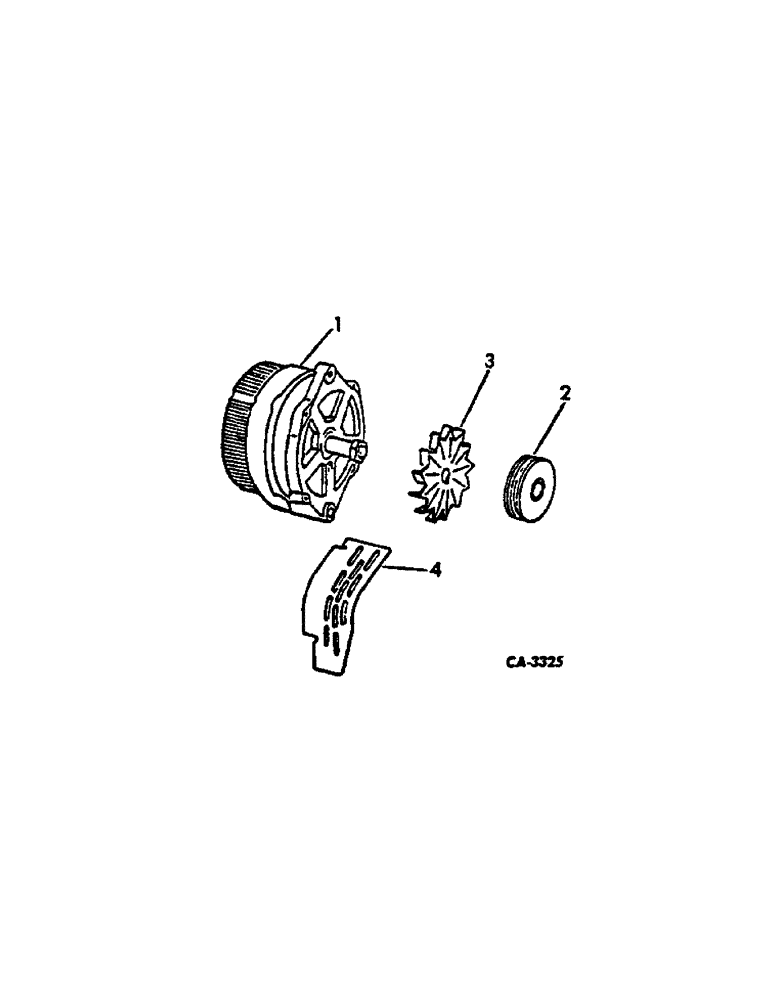

Запчасти Case IH 674 (08-01) - ELECTRICAL, ALTERNATOR-GENERATOR AND CONNECTIONS, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL

1

1100593

ALTERNATOR-GENERATOR W/REG, furnish 1-102920, Serial Range: -108290

1шт.

1

1102920

GENERATOR

ALTERNATOR-GENERATOR W/REG, Start Serial: 108291

1шт.

1

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

1

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

1

103807A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

225-14112

NUT,#12-24

10-24 hex. mach screw

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 znd hex-hd cap

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 PHC hex. lock

1шт.

537326R1

BOLT

5/16-18 x 1-1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

1949358

PULLEY

alternator-generator, Delco-Remy

1шт.

3

221425R1

FAN

alternator-generator

1шт.

4

71196C92

PACKAGE

BEARING, alternator shield, consists of shield (NSS), instructions (NSS)

1шт.

537326R1

BOLT

1шт.

557265R1

WASHER

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT

1шт.

186228

SCREW

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT

1шт.
