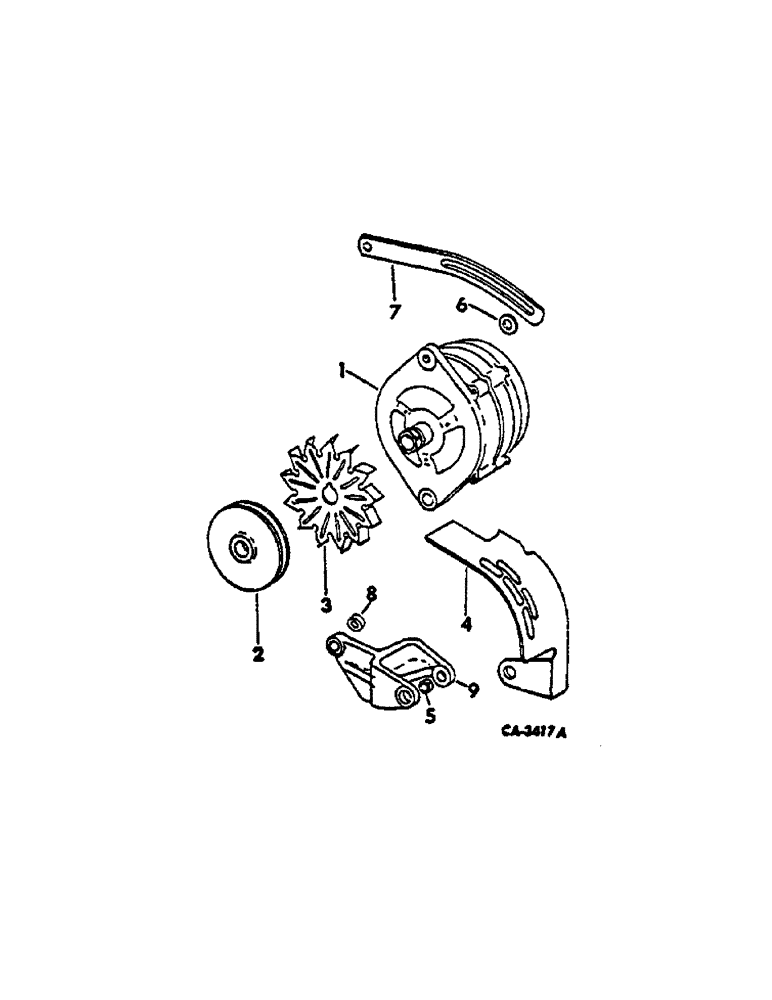

Запчасти Case IH 674 (08-01[1]) - ELECTRICAL, DIESEL ENGINE TRACTORS (06) - ELECTRICAL

1

1100578

ALTERNATOR

-GENERATOR W/REG, furnish 1-1-2920, Serial Range: -108290

1шт.

1

1102940

GENERATOR

ALTERNATOR-GENERATOR W/REG., Start Serial: 108291

1шт.

225-14112

NUT,#12-24

10-24 hex mach screw

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

9413977

NUT

5/16-18 PHC hex

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21404R1

SCREW,Hex, 5/16"-18 x 4 1/2", G8

5/16-18 x 4-1/2 hex-hd cap

1шт.

2

528173R1

PULLEY

alternator, generator (Replaces 528713R1)

1шт.

3

221425R1

FAN

alternator-generator

1шт.

4

114652C1

SHIELD

ASSY, alt fan and pulley, replaces 534313R2

1шт.

5

66465C1

BUSHING

alternator mounting bolt

1шт.

6

280185R1

SPACER

alternator brace

1шт.

7

66466C1

STAY

BRACE, alternator adjusting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

8

397384R1

SCRAPER RING

SPACER, alternator bracket

1шт.

9

533789R11

BRACKET

alternator mounting, not longer available order 66467C1 and 66465C1

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
