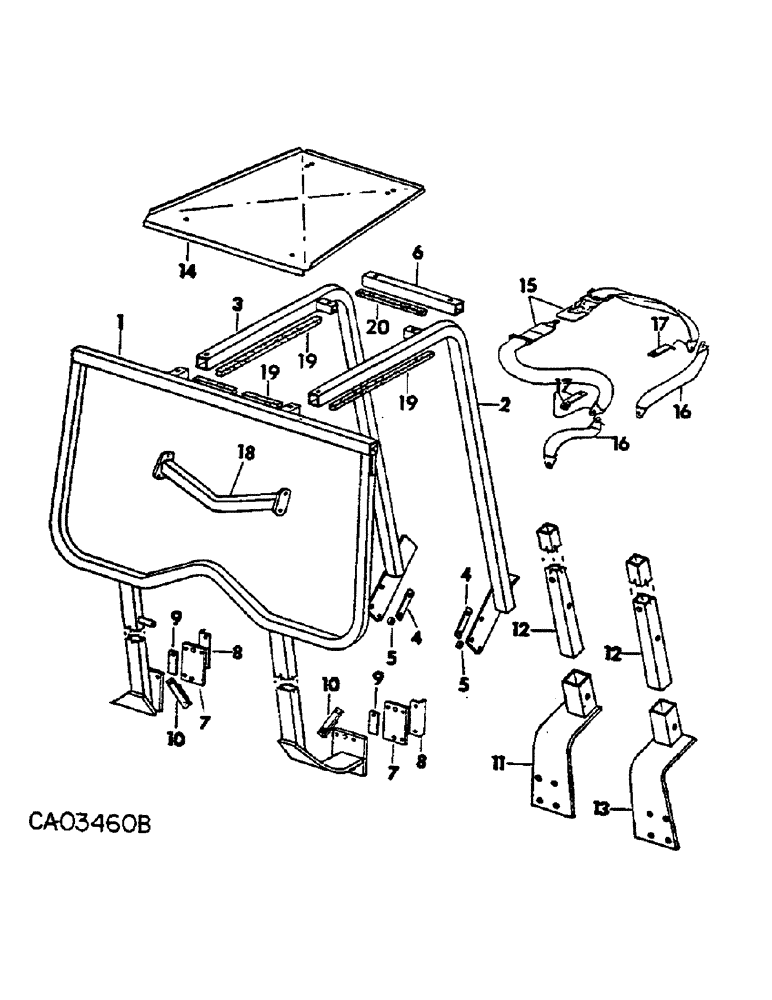

Запчасти Case IH 674 (13-09) - SUPERSTRUCTURE, PROTECTIVE FRAME (05) - SUPERSTRUCTURE

66917C91

PARTS ACCESSORY, protective frame canopy, consists of Ref. 14 and attaching hardware

1шт.

ATTACHMENT, protective frame, also order harness, 66064C1 combination light extension

1шт.

1

FRAME ASSY, rear, not serviced separately, order frame attachment

1шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

5/8-11 x 8.8 hex-hd cap

8шт.

21434R1

NUT,5/8"-11, G8

5/8-11 C-Z hex. type 8

8шт.

23702R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

SCREW, 3/4-10 x 9 hex-hd cap

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 hex. type 8, row crop tractors

4шт.

2

LEG ASSY, front LH, not serviced separately, order frame attachment

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

SCREW, 3/4-10 x 2-1/4 znd hex-hd cap

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

3

LEG ASSY, front RH, not serviced separately, order frame attachment

1шт.

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

SCREW, 3/4-10 x 2-1/4 znd hex-hd cap

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

4

537308R1

PLATE

spacer

2шт.

5

537309R1

SPACER

2шт.

6

BAR, front cross, not serviced separately, order frame attachment

1шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 C-Z hex type 8

4шт.

7

PLATE, backing, not serviced separately, orde frame attachment

2шт.

8

66062C1

PLATE

mounting

2шт.

9

66063C1

DECAL

SHIM

4шт.

10

PLATE ASSY, mtg, not serviced seperately, order frame attachment

2шт.

11

MOUNTING ASSY, bracket LH, not serviced separately, order frame attachment, tractors w/1550 or 1850 loader

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

21330R1

NUT,1/2"-13, G8

1/2-13 znd hex. type 8

4шт.

12

TUBE, connector, not serviced separately, orde frame attachment, tractors w/1550 or 1850 loader

2шт.

13

MOUNTING ASSY, bracket RH, not serviced separately, order frame attachment, tractors w/1550 or 1850 loader

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap type 8

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

21330R1

NUT,1/2"-13, G8

1/2-13 znd hex, type 8

4шт.

14

CANOPY, order parts accessory 66917C91

1шт.

21759R1

WASHER

21/32 x 2 x 11 ga

4шт.

432487

HOLE PLUG BUTTON,11/16"

PLUG, 11/16 button

2шт.

15

537339R1

SAFETY BELT

SAFETY BELT

1шт.

404911C1

BOLT

seat belt anchor

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 type 8 znd hex.

2шт.

NLS

NO LONGER SERVICED

15/32 x 59/64 x .065 znd

4шт.

16

539258R1

SAFETY BELT

SAFETY BELT, Retainer

2шт.

404911C1

BOLT

seat belt anchor

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

24513R1

NUT,7/16"-20, G8

7/16-20 type 8 znd hex.

4шт.

120395

WASHER

15/32 x 59/64 x .065 znd

4шт.

17

539259R1

CLIP

seat belt anchor

2шт.

18

(Not used this application)

1шт.

19

118225C1

STRIP

canopy

3шт.

20

118226C1

STRIP

canopy

1шт.
