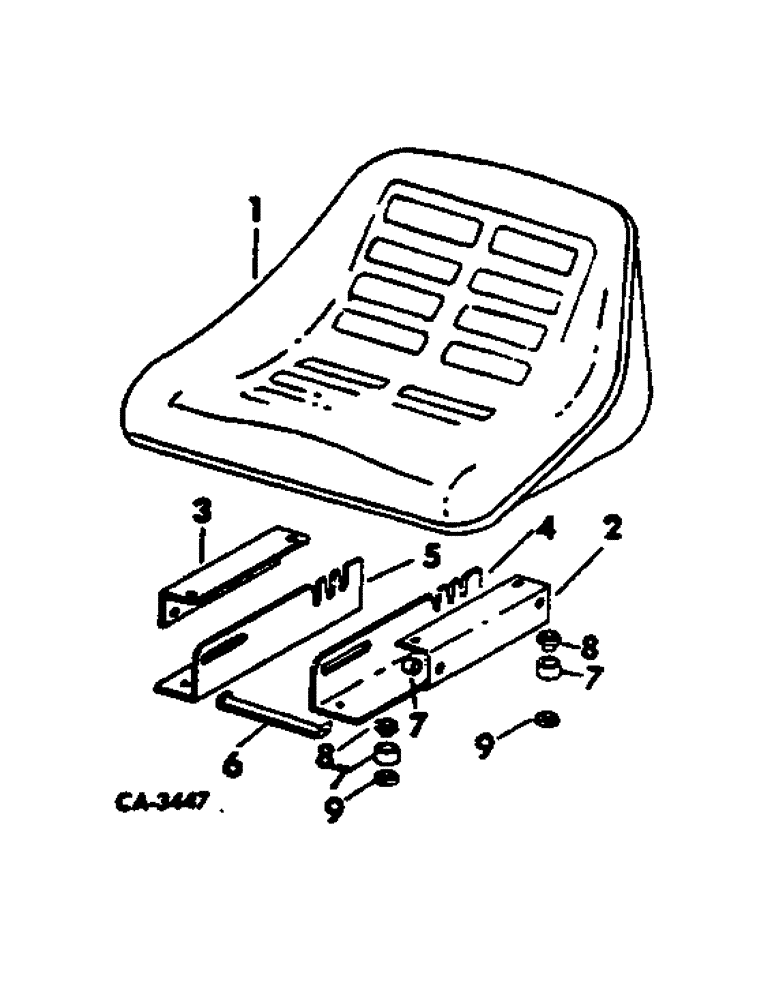

Запчасти Case IH 674 (13-08) - SUPERSTRUCTURE, UPHOLSTERED SEAT (05) - SUPERSTRUCTURE

1

528844R1

SEAT

ASSY

1шт.

2

537990R2

ANGLE, seat support rail LH

1шт.

3

537991R1

ANGLE, seat support rail RH

1шт.

4

537608R2

SUPPORT, seat angle LH

1шт.

5

537609R2

SUPPORT, seat angle RH

1шт.

26134R1

PIN, 3/8 x 14 head seat mtg rod

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13.32 x 13.16 x .051 C-Z

2шт.

6

68025C1

BRACE, seat angle support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 znd hex-hd cap

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

68023C1

BUSHING, seat isomount

4шт.

8

68024C1

RING, isomount

4шт.

5111

WASHER, .594 x 1.250 x .164

4шт.

23364R1

WASHER

.344 x 1.750 x .164 znd

4шт.

9

452800R1

SPACER

.364 x .540 x 1-1/8 std pipe

4шт.
