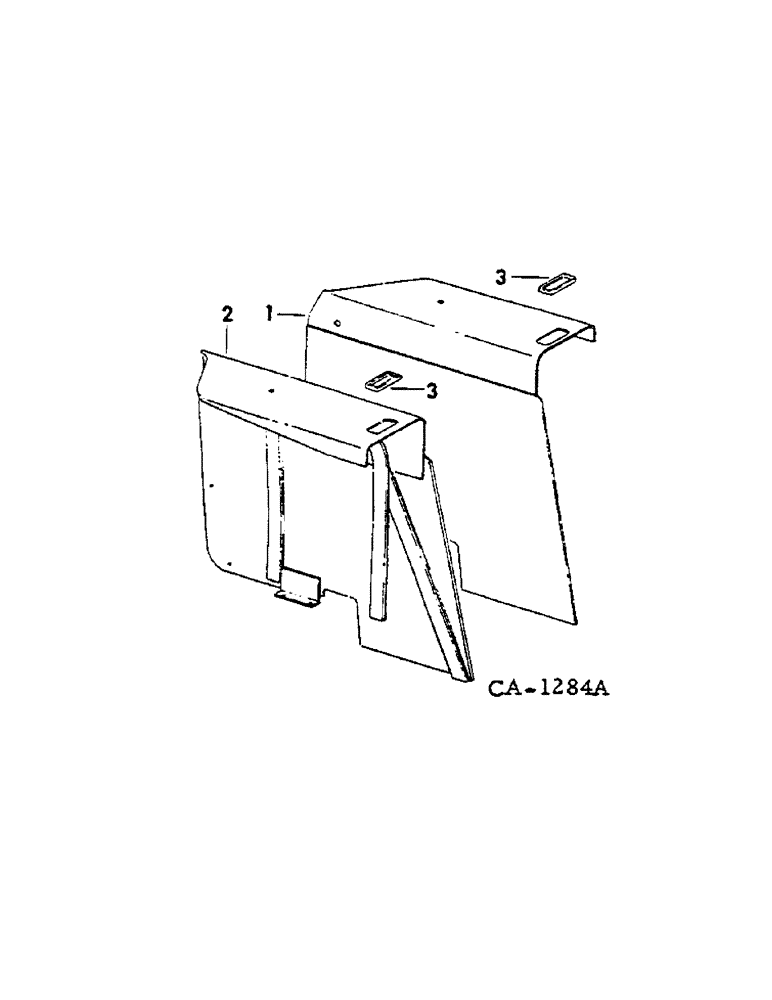

Запчасти Case IH 674 (13-03) - SUPERSTRUCTURE, REAR FENDERS FLAT TOP (05) - SUPERSTRUCTURE

1

539391R1

FENDER ASSY, w/product graphic LH, for tractors equipped w/13. 6-28 tires, not row crop

1шт.

1

539216R1

FENDER ASSY, RH, for tractors equipped w/13. 6-28 tires, not row crop

1шт.

1

539392R1

FENDER ASSY, w/product graphic, LH, row crop tractors w/13.6-38, 15.5-38, 16.9-34 and 18.4-30 tires

1шт.

1

539393R1

FENDER ASSY, w/product graphic, LH, not row crop tractors w/13.9-36, 16.9-30, 14.9-28, 18.4-26 and 14.9-30 tires

1шт.

2

539220R1

FENDER ASSY, RH, row crop tractors w/13.6-38, 15.5-38, 16.9-34 and 18.4-30 tires

1шт.

2

539209R1

FENDER ASSY, RH, not row crop tractos w/14.9-28, 16.9-28, 16.9-30, 13.9-36, 18.4-26 and 14.9-30 tires

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065

2шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120376

NUT,5/16"-18, G5

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 C-Z hex-hd cap

2шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

SCREW, 5/16-18 x 1-3/4 C-Z hex-hd cap

2шт.

180129

BOLT,Hex, 3/8" - 16 x 1 7/8"

SCREW, 3/8-16 x 1-7/8 C-Z hex-hd cap

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

2шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" C-Z hex-hd cap

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

137337H

WASHER, .531 x 1.12 x 6 ga

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

2шт.

3

388940R1

GRIP

fender handle

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.
