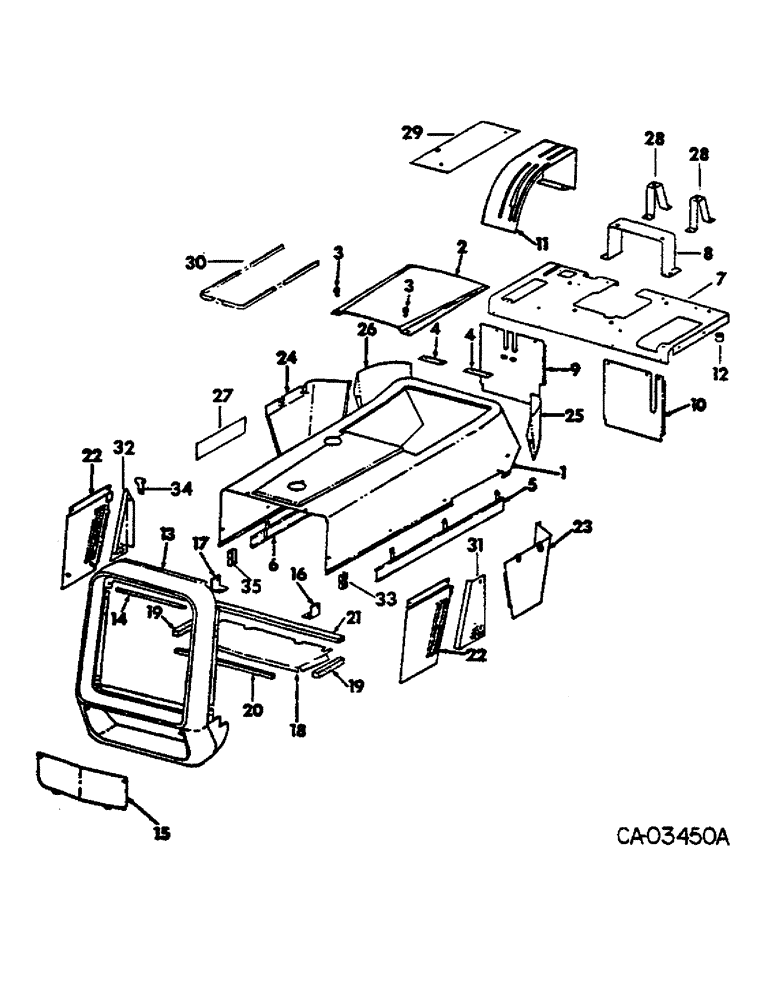

Запчасти Case IH 674 (13-01) - SUPERSTRUCTURE, HOOD AND PANELS (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
69935C1
HOOD ASSY, tractors w/underslung exhaust, replaces 406422R1
1шт.
1
69603C1
HOOD
ASSY, tractors w/vertical exhaust, replaces 406417R1
1шт.
381052R1
BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"
SCREW, 5/16-18 x 5/8 C-Z slt-hex, optional w/67211C1
1шт.
67211C1
SPARE PART,3/8" - 16 x 5 1/2"
SCREW, 5/16-18 x 1/2 C-Z washer-hd cap, optional w/381052R1
6шт.
3479
WASHER,7/32" x 9/16" x .060"
7/32 x 9/16 x 16 ga.
6шт.
131-883
SPRING NUT,Rtnr, 5/16" - 18
5/16-18 floating
2шт.
534458R1
NUT
10-24 hex. lock
6шт.
2
401933R1
COVER
ASSY, rear hood, optional w/3113425R1
1шт.
2
3113425R1
COVER
ASSY, optional w/401933R11
1шт.
3
389872R1
THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"
SCREW
2шт.
376787R1
WASHER
2шт.
4
406698R1
STRIP
rear hood cover retainer
2шт.
443-1108
SCREW,Cross Flat Hd, #10-24 x 1/2"
10-24 x 5/8 cr-rec-f-hd mach (Replaces 147791) (Replaces 155937)
4шт.
106497
LOCK WASHER,#10
WASHER, LOCK, #10
4шт.
110633
NUT,#10-24
4шт.
5
529578R2
PANEL
ASSY, lower hood LH
1шт.
157728
SCREW
1/4-20 x 5/8 C-Z cr-rec-truss hd mach
2шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
6
529579R2
PANEL
ASSY, lower hood RH
1шт.
157728
SCREW
1/4 x 5/8 znp t/hdcr mach
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
160578
SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/2"
1/4 x 1-1/2 znp p/hdcr mach, required for carbureted engines only
1шт.
7
527591R5
COVER
ASSY, rear top
1шт.
7
401937R5
COVER ASSY, rear top, for tractors w/grove attachment
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
120368
NUT,5/16"-24, G5
5шт.
8
67262C2
BRACKET
top cover front, for tractors w/flat plate rear cover
1шт.
179835
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
9
527589R2
COVER
ASSY, rear vertical RH
1шт.
9
527856R3
COVER ASSY, rear vertical RH, for tractors w/grove attachment
1шт.
180018
CONNECTING LINK
SCREW, 1/4-20 x 5/8 znd hex-hd cap
2шт.
10
527587R1
COVER
ASSY, rear vertical LH
1шт.
10
401942R2
COVER ASSY, rear vertical LH, for tractors w/grove attachment
1шт.
413-410
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
SCREW, 1/4-20 x 5/8 znd hex-hd cap
2шт.
11
527679R3
COVER ASSY, hitch control lever, for tractors w/hydraulic draft control and/or independent power take off and not equipped with grove attachment
1шт.
11
400088R3
COVER ASSY, hitch control lever, for tractors w/hyd draft control and/or independent power take-off and grove attachment
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
12
401940R2
SPACER, mounting long
2шт.
13
402425R2
HOUSING
ASSY, radiator grille
1шт.
131-883
SPRING NUT,Rtnr, 5/16" - 18
5/16-18 floating cage
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
102635
NUT,3/8"-16, G5
2шт.
120397C1
EMBLEM CASE/IH
IH Emblem .500 inch thick
1шт.
14
530854R1
MOLDING
MOULDING, air baffle edge
1шт.
15
402427R1
PANEL
ASSY, grille lower front
1шт.
157728
SCREW
1/4-20 x 5/8 C-Z cr-rec-truss hd mach
2шт.
16
406696R1
BRACKET
grille housing angle LH
1шт.
17
406697R1
BRACKET
grille housing angle RH
1шт.
413-714
BOLT,Hex, 7/16" - 14 x 7/8", Gr 5
7/16-14 x 7/8 C-Z hex-hd cap
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
18
402457R1
BAFFLE
radiator lower
1шт.
19
GASKET, radiator baffle lower, furnish 6.0 in from 4 ft. length marked 73218C1
1шт.
20
GASKET, radiator baffle, furnish 16.8 in from 4 ft. length marked 73221C1
1шт.
21
GASKET, radiator baffle, furnish 28.0 in. from 4 ft. length marked 73217C1
1шт.
22
402458R2
X
PANEL ASSY, grille side LH
1шт.
22
402459R1
PANEL
ASSY, grille side RH
1шт.
NLS
NO LONGER SERVICED
1/4-28 x 1/2 C-Z slt-hes-hd tap
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
109084
NUT,1/4"-20, G5
2шт.
23
402464R2
PANEL
lower side rear LH
1шт.
5443631
SCREW, 1/4-20 x 7/16 C-Z hex-washer-hd cap
3шт.
24
402465R2
PANEL
lower side rear RH
1шт.
544363R1
SCREW
1/4-20 x 7/16 C-Z hex-washer-hd cap
3шт.
25
402423R1
PANEL
LH
1шт.
26
402424R1
PANEL
RH
1шт.
27
65125C1
SHIELD
heat, diesel engine tractors w/vertical exhaust
1шт.
28
67263C1
BRACKET
top cover rear, for tractors w/flat plate rear cover
1шт.
179845
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
SCREW, 3/8-16 x 1-3/4 hex-hd cap
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
29
67782C1
PLATE
hitch control lever cover, for tractors w/flat plate rear cover
1шт.
30
3113428R1
SEAL, rear hood cover
1шт.
31
114680C1
SHIELD ASSY, safety LH, carbureted engine tractors, Ref. 31, 32, 33, 34 and 35 required for tractors, Start Serial: 107307
1шт.
157728
SCREW
1/4 x 5/8 znp t/hdcr mach
1шт.
684548C1
NUT
spring
1шт.
32
114678C1
SHIELD ASSY, safety RH, carbureted engine tractors, Ref. 31, 32, 33, 34 and 35 required for tractors, Start Serial: 107307
1шт.
157728
SCREW
1/4 x 5/8 znp t/hdcr mach
1шт.
684548C1
NUT
spring
1шт.
32
114682C1
SHIELD ASSY, safety RH, diesel engine tractors, Ref. 31, 32, 33, 34 and 35 required for tractors, Start Serial: 107307
1шт.
157728
SCREW
1/4 x 5/8 znp t/hdcr mach
1шт.
684548C1
NUT
spring
1шт.
33
114685C1
CHANNEL, mounting, carbureted engine tractors, Start Serial: 107307
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
34
114686C1
HINGE, mounting, carbureted engine tractors, Ref. 31, 32, 33, 34 and 35 required for tractors, Start Serial: 107307
1шт.
160578
SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/2"
1/4 x 1-1/2 znp p/hdcr mach
1шт.
35
114685C1
CHANNEL, mounting, diesel engine tractors, Ref. 31, 32, 33, 34 and 35 required for tractors, Start Serial: 107307
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
Выбрано товаров: 97
