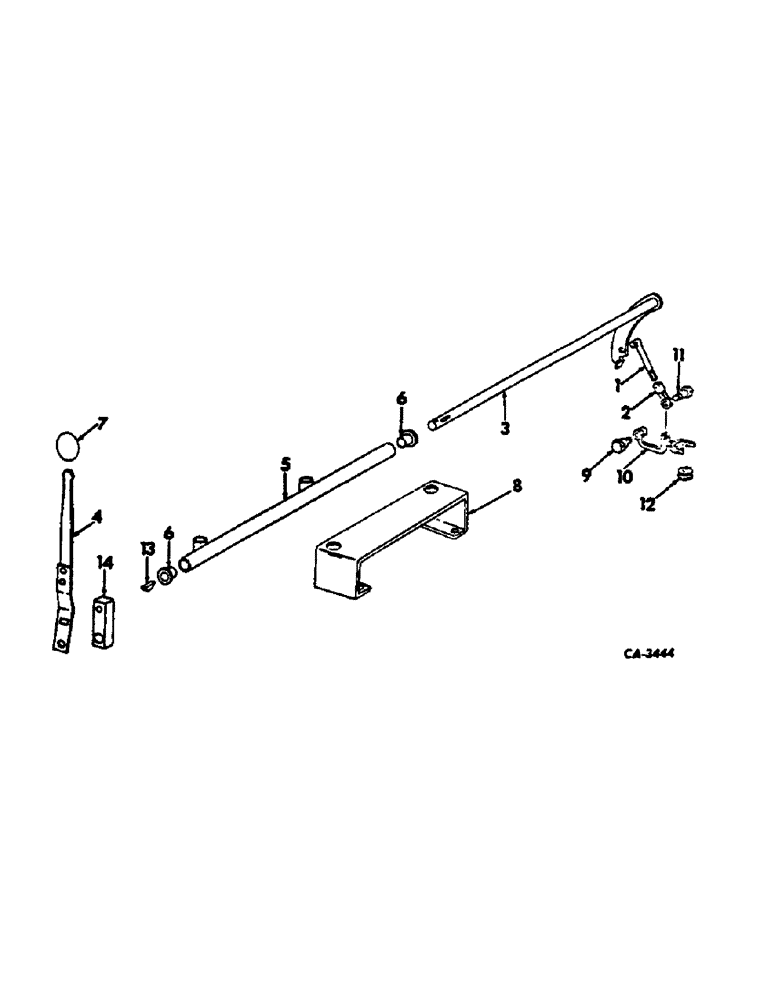

Запчасти Case IH 674 (07-20) - DRIVE TRAIN, POWER TAKE-OFF LEVER AND CONNECTIONS (04) - Drive Train

1

535450R1

ROD ASSY.

ROD ASSY, IPTO control

1шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

535453R1

PIN

IPTO rod

1шт.

2

528837R1

CLEVIS,5/16" - 24

IPTO control

1шт.

3

401741R1

SHAFT ASSY.

SHAFT ASSY, IPTO control cross-over

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21903R1

WASHER

17/32 x 3/4 x .060 C-Z

1шт.

4

538720R1

LEVER ASSY.

LEVER ASSY, IPTO adj

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16-18 x 1-1/4 znd sq-nk crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

5

537184R91

SUPPORT ASSY.

SUPPORT ASSY, control shaft, consists of Ref. 6

1шт.

6

528839R1

BUSHING

control shaft support

2шт.

7

530090R1

KNOB

IPTO hand lever

1шт.

8

(Not used this application)

1шт.

9

401754R1

BOLT,3/8" - 16 x 2.20"

control arm pivot shaft

1шт.

10

401749R2

LEVER ASSY.

BELLCRANK ASSY, control

1шт.

11

530809R1

BOLT,Shoulder, Hex, 1/4" - 28 x 1.06"

shoulder

1шт.

12

530813R2

GUIDE BUSHING

COLLAR, IPTO control

1шт.

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

13

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

14

538719R1

PIVOT

control handle

1шт.
