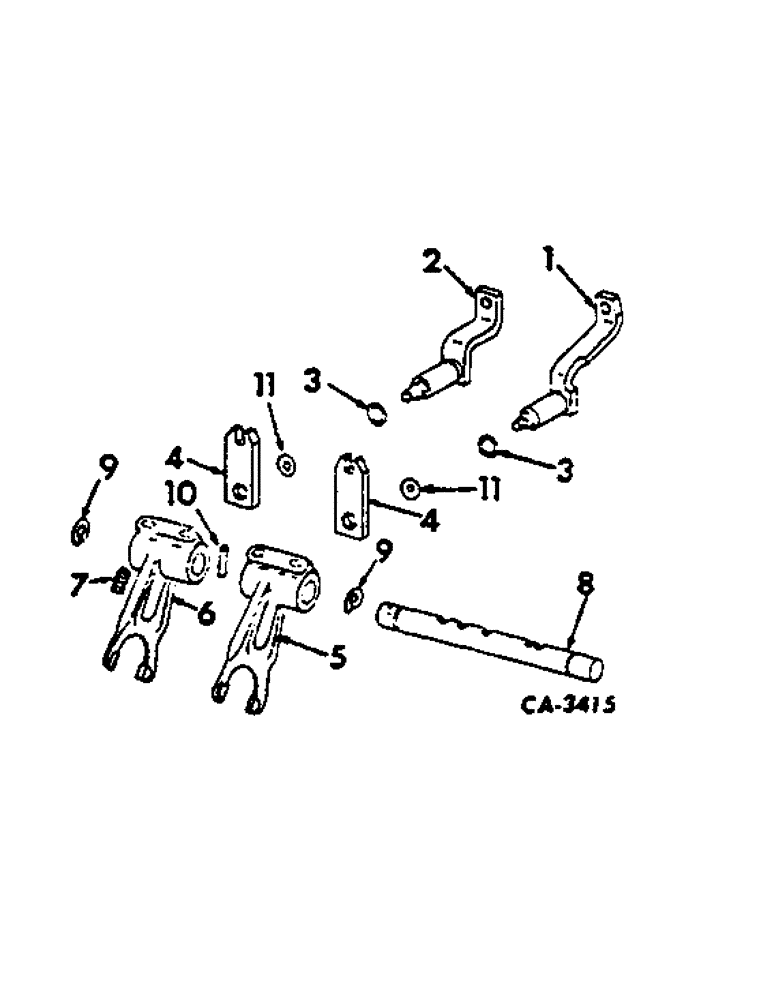

Запчасти Case IH 674 (07-18) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION (04) - Drive Train

1

405164R3

ARM ASSY.

ARM ASSY, range shift outer front

1шт.

2

405167R2

ARM

ASSY, range shift outer rear

1шт.

3

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

4

405169R2

ARM

range shift inner

2шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 nylon insert

2шт.

5

538911R4

FORK

ASSY, front

1шт.

6

538912R4

FORK

ASSY, rear

1шт.

7

534053R1

SPRING

poppet ball

2шт.

17013R1

BALL,13/32" Dia

Optional w/16013R1 13/32" Dia

2шт.

16013R1

BALL

13/32 cr-stl, optional w/17013R1

1шт.

8

537473R1

RAIL ASSY.

RAIL - range shift fork

1шт.

9

661652R1

SNAP RING,#75, Ext

Shift fork rail #75, Ext

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

10

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

11

Q3501

WASHER

25/32 x 1-1/4 x .060

4шт.
