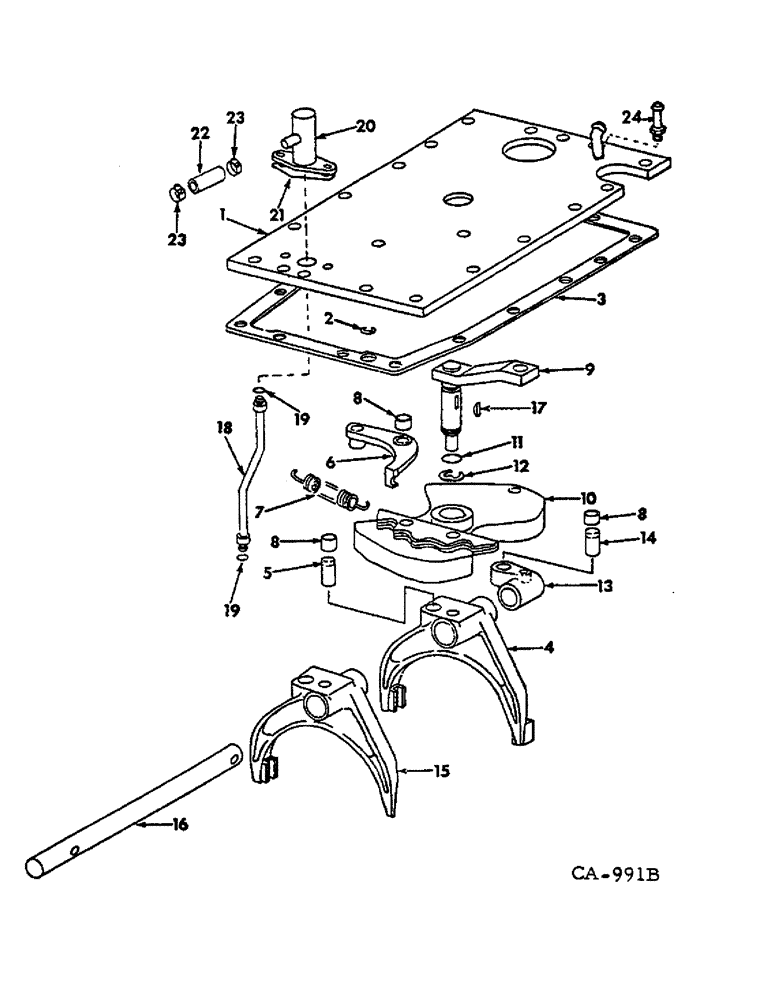

Запчасти Case IH 674 (07-15) - DRIVE TRAIN, GEAR SHIFT MECHANISM, SPEED TRANSMISSION, TRACTORS WITH SERIAL NO. 101783 AND BELOW (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
105827C1
COVER
ASSY, clutch housing top, replaces 402597R1, also furnish adapter, 105826C1
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
16шт.
11002VA
WASHER
17/32 x 7/8 x .065
1шт.
9410359
PLUG
3/4-16 std-thd o-ring boss
1шт.
2
370290R1
SNAP RING,#50, .392" Dia, E-Type
Ring, Retaining, , shifter control arm pivot pin #50, .392" Dia, E-Type
1шт.
3
401019R3
GASKET
clutch housing top cover
1шт.
4
401697R91
YOKE
FORK ASSY, 3rd & 4th speed shift, Includes: Ref. 5
1шт.
5
383438R1
DOWEL
PIN, 1/2 x 1 dowel
1шт.
6
382565R21
ARM ASSY.
ARM ASSY, shifter control
1шт.
7
383997R1
SPRING
shifter control arm
1шт.
8
380115R2
ROLLER
cam
3шт.
9
404734R1
ARM ASSY.
ARM ASSY, cam actuating
1шт.
10
399455R93
CAM
ASSY, clutch housing shift
1шт.
104186
RIVET
5/16 x 1-3/8 csk-hd solid
2шт.
11
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
9/16 x 3/4 x 3/32 cam pivot shaft o-ring
1шт.
12
603570R1
SNAP RING,#75, .574" Dia, E-Type
Ring, Retaining, , cam pivot shaft #75, .574" Dia, E-Type
1шт.
13
401694R11
HUB ASSY.
HUB ASSY, 1st and 2nd speed shift, Includes: Ref. 14
1шт.
14
383438R1
DOWEL
PIN, 1/2 x 1 dowel
1шт.
25155R1
PIN,1/4" x 1 1/4", Coiled
1/4" x 1 1/4", Coiled
2шт.
15
401695R2
FORK
1st and 2nd speed shift
1шт.
16
401696R1
ROD
1st & 2nd speed shift
1шт.
17
106751
KEY
3/16 x 3/4 woodruff cam pivot shaft key
1шт.
18
534412R1
TUBE
ASSY, transmission lub
1шт.
19
352219R1
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
1/4 x 3/8 x 1-16
2шт.
20
534415R91
BODY COMPLETE, pressure lub
1шт.
181311
BOLT,Hex, 1/4" - 28 x 5/8", Gr 5
SCREW, 1/4-28 x 5/8 hex-hd cap
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
21
534420R1
GASKET
pressure lub body cover
1шт.
22
537612R1
HOSE
lub tube
1шт.
23
279025R91
HOSE CLAMP,#06, .44/.78 Type F Worm
2шт.
24
105826C1
ADAPTER
used w/cover 105827C1
1шт.
Выбрано товаров: 32
