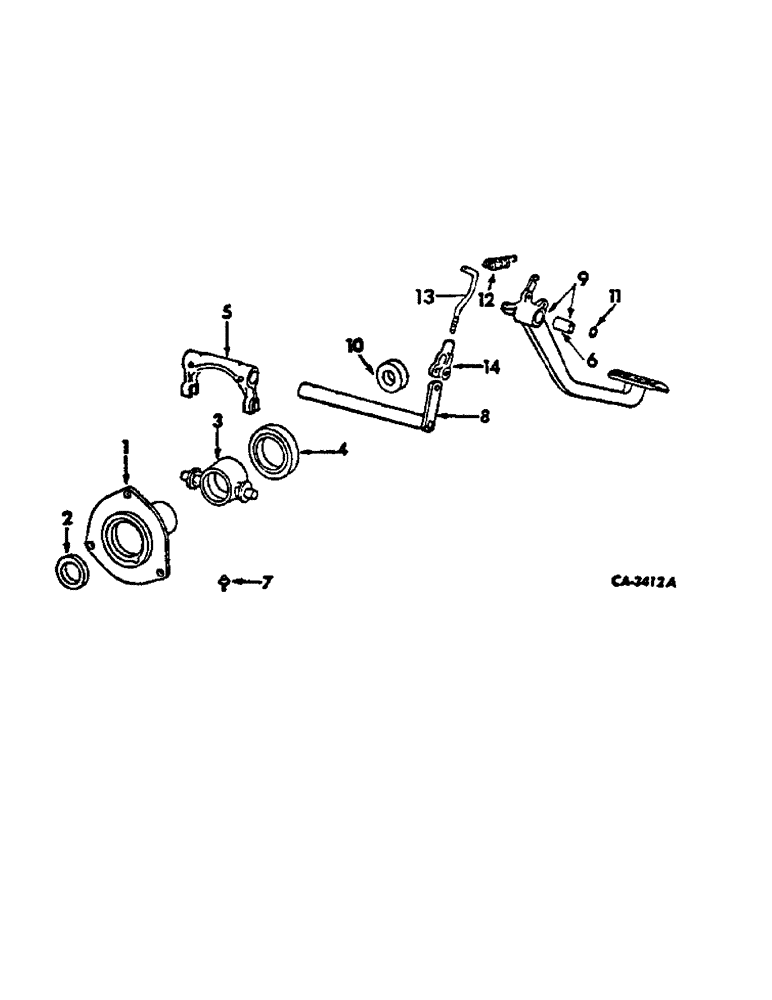

Запчасти Case IH 674 (07-14) - DRIVE TRAIN, CLUTCH CONTROLS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
398236R2
CARRIER
clutch release sleeve, 2.3750 diameter, used w/shaft, 66347C3 and seal, 376930R92
1шт.
1
71229C1
SLIPPER
CARRIER, clutch release sleeve, used w/shaft 71230C1 and seal 108982C1
1шт.
179842
SPACER
3/8-16 x 1-3/8 hex-hd cap
3шт.
2
108982C1
OIL SEAL
SEAL, release sleeve carrier oil, replaces 376930R91
1шт.
Does not replace 376939C1 in parts system. It only replaces it in production.
1шт.
3
105445C1
BUSHING
SLEEVE, clutch release, replaces 360501R2 by also ordering bearing 158125C91
1шт.
4
158125C91
THRUST BEARING
BEARING, clutch release ball, 2.3751 diameter, fits on top of Ref. 3, replaces 365865R91 by also ordering sleeve 105445C1
1шт.
5
398342R1
FORK
clutch release
1шт.
617938R1
PIN,5/16" x 1 3/8", Coiled
2шт.
6
539246R1
BUSHING
clutch pedal
1шт.
7
109461
LUBE NIPPLE,1/8"-27 x .66 lg
FITTING, 1/8-27 PFT str lub
1шт.
8
398237R2
SHAFT HOUSING
SHAFT ASSY, clutch release
1шт.
86504104
LUBE NIPPLE,1/4" x .56" lg, Drive
FITTING, 1/4 drive type str lub
2шт.
9
530805R3
PEDAL
ASSY, clutch
1шт.
23183R1
WASHER
29/32 x 1-3/8 x .054
1шт.
10
537290R91
BALL BEARING,20mm ID x 47mm OD x 14mm W
Clutch pilot
1шт.
11
454331R1
SNAP RING,#87, Ext
Clutch pedal #87, Ext
1шт.
12
399743R1
SPRING
clutch pedal return
1шт.
138675
SCREW,Hex, 5/16" - 18 x 1 1/4"
5/16-18 x 1-1/4 hex-hd ov-pt set
1шт.
114502
JAM NUT,Jam, 5/16"-18, G5
1шт.
13
71086C1
ROD ASSY.
ROD ASSY, clutch operating, replaces 401475R2
1шт.
107762
WASHER,3/32" x 5/8"
PIN, SPLIT, (COTTER), 3/32" x 5/8"
1шт.
14
104038
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS, 3/8-24 x 2-1/2 light adj rod end
1шт.
114494
NUT,Jam, 3/8"-24, G5
1шт.
103496
CLEVIS PIN,3/8" x 1.060"
PIN, 3/8 x 1-3/32 rod end
1шт.
107762
WASHER,3/32" x 5/8"
PIN, SPLIT, (COTTER), 3/32" x 5/8"
1шт.
1970876C3
THRUST WASHER,53.6mm ID x 100mm OD x 7mm Thk
new, fits in front of release bearing
1шт.
Выбрано товаров: 28
