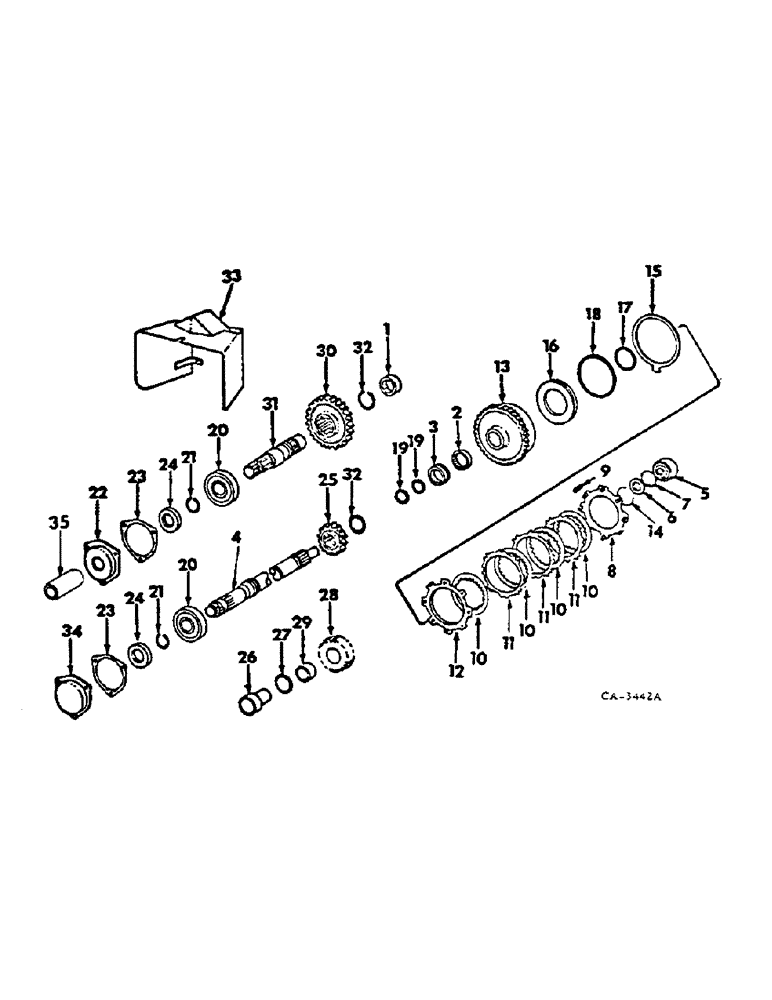

Запчасти Case IH 674 (07-11) - DRIVE TRAIN, INDEPENDENT POWER TAKE-OFF, SINGLE AND DUAL SPEED IPTO (04) - Drive Train

1

112821R91

NEEDLE BEARING

upper shaft needle

1шт.

2

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING, lower shaft needle

1шт.

3

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

4

66189C1

SHAFT ASSY.

SHAFT ASSY, IPTO driving, single speed

1шт.

66180C1

SHAFT

ASSY, lower output, dual speed

1шт.

5

66183C2

HUB ASSY.,45T

HUB ASSY, clutch

1шт.

6

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

7

401756R1

SNAP RING,#206, 1.936", Ext

RING, snap

1шт.

8

66186C91

PLATE ASSY.

PLATE ASSY, clutch backing

1шт.

20202R1

PIN, 5/16 x 1 dowel

6шт.

9

66182C1

SPRING

piston return

6шт.

10

PLATE ASSY, clutch driven, not serviced seperately, furnish clutch plate service package, 66193C92

5шт.

11

PLATE, driven, not serviced seperately, furnish clutch plate service package, 66193C91

8шт.

12

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

13

66068C1

GEAR

clutch cup 44 T

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

14

401720R1

CIRCLIP

RING, backing plate snap

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

16

401722R1

PISTON

clutch

1шт.

17

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

RING, piston seal, inner

1шт.

18

401724R1

SEAL,0.551" ID x 0.07" Width

RING, piston seal outer

1шт.

19

166972R1

RING

shaft sealing

2шт.

20

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, shaft ball

2шт.

21

607186R1

SNAP RING,#156, Ext

Brg #156, Ext

2шт.

22

401725R2

FLANGED BEARING

IPTO shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

23

399843R3

GASKET

shaft brg retainer

2шт.

24

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL, shaft oil, 1 used with single speed, 2 used with dual speed

1шт.

25

404232R1

GEAR

lower shaft drive, 21T

1шт.

25

404233R1

PINION

GEAR, lower shaft drive, 22T

1шт.

26

401726R1

SHAFT

IPTO idler

1шт.

27

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 x 2-1/4 x 3/32

1шт.

28

401727R1

PINION

GEAR, idler, 24T

1шт.

29

A31213

NEEDLE BEARING,Needle, 34.91mm ID x 41.27mm OD x 31.75mm W

BEARING, idler shaft needle (Replaces 570450R1) Replaces 570450R91)

1шт.

30

66192C1

GEAR

555 RPM driven, 38T

1шт.

30

404237R1

PINION

GEAR, upper driven, 36T

1шт.

31

3113017R1

SHAFT

upper output

1шт.

32

336000R1

SNAP RING,#175, 1.640", Ext

RING, driven gear retainer

2шт.

33

114684C1

SHIELD

W/PRODUCT GRAPHIC, 64553C1, IPTO safety, replaces 401684C1

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

34

66191C1

FLANGED BEARING

IPTO shaft, single speed

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

34

401725R2

FLANGED BEARING

shaft bearing retainer, dual speed

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

3шт.

35

(Not used this application)

1шт.

66193C91

PACKAGE

clutch plate service, consists of (5) disc (NSS), (8) plate (NSS), (1) o-ring 401723R1, (1) o-ring 401724R1, (6) spring 66182C1

1шт.
