Запчасти Case IH 674 (07-10) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

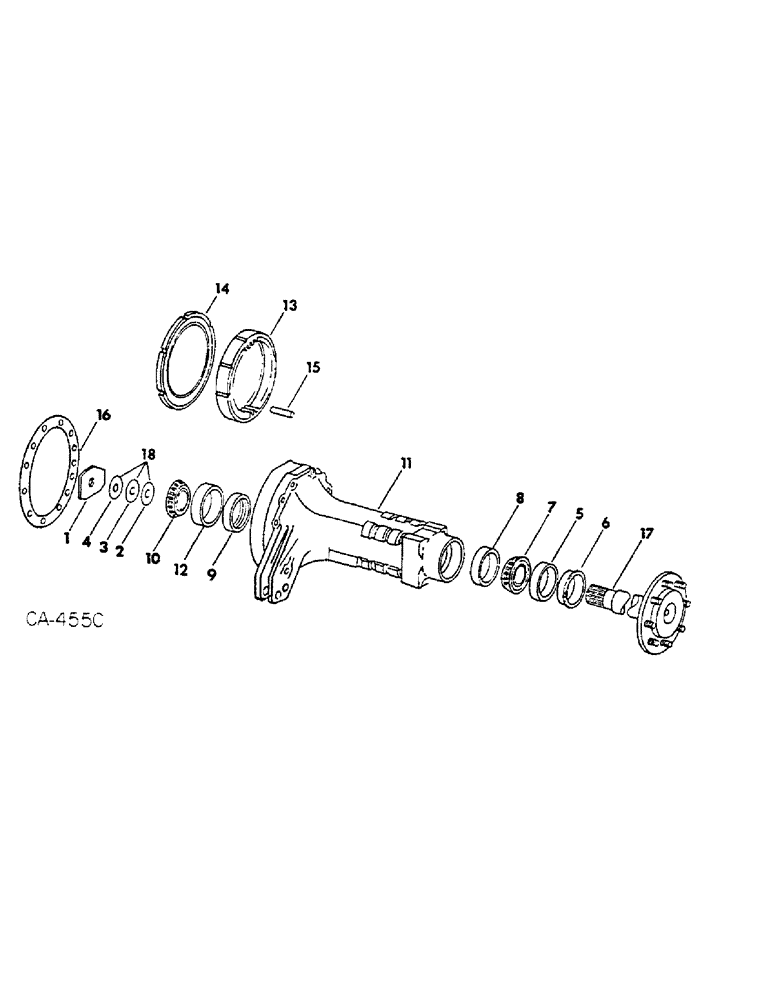

Схема запчастей Case IH 674 - (07-10) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train
13
14
1
16
8
17
3
15
5
6
11
7
9
12
2
18
4
10

Артикул

Название

Примечание

Количество

1

399748R1

SPACER

planet carrier retainer

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

SCREW, 5/8-18 x 1-1/2 hex-hd cap

2шт.

2

SHIM, rear axle .0299, not serviced separtely, order 65422C1

1шт.

3

SHIM, rear axle .007, not serviced separately, order 65422C1

1шт.

4

SHIM, rear axle .012, not serviced separately, order 65422C1

1шт.

5

105471C1

OIL SEAL

SEAL, rear axle outer oil, replaces 399794R91

2шт.

6

399796R1

SLEEVE

wear

2шт.

7

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

rear axle outer cone

2шт.

8

ST988

BEARING CUP,121.44mm OD x 17.46mm W

BEARING, rear axle outer cup

2шт.

9

399798R91

OIL SEAL

SEAL, rear axle inner oil

2шт.

10

972465R91

BEARING ASSY,69.8565 mm ID x 25.311 mm

ASSY, rear axle inner cone

2шт.

11

399801R1

AXLE CARRIER

CARRIER, rear axle LH

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

SCREW, 5/8-11 x 4-1/4 hex-hd cap

22шт.

11

399803R1

AXLE CARRIER

CARRIER, rear axle RH

1шт.

11

527355R1

AXLE CARRIER

CARRIER, rear axle LH, row crop tractors

1шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

20шт.

18285R1

SCREW, 5/8-11 x 6-1/4 hex-hd cap

2шт.

11

527356R1

AXLE CARRIER

CARRIER, rear axle RH, row crop tractors

1шт.

12

ST981

BEARING CONE,112.71mm OD x 19.05mm W

BEARING, rear axle inner cup

2шт.

13

535317R1

GEAR, RING

66T

2шт.

14

399760R1

RING

brake outer disc

2шт.

15

529686R1

DOWEL

PIN, dowel

6шт.

16

399762R3

GASKET

rear axle carrier

2шт.

17

404345R13

HALF SHAFT

AXLE ASSY, rear

2шт.

17

527353R11

AXLE, REAR

AXLE ASSY, rear, row crop tractors

2шт.

535862R1 Wear Sleeve on Axle 527353R11 (not shown)

1шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

18

65422C1

SHIM KIT

PACKAGE, rear axle retainer shim, consists of (3) shim (NSS), (3) shim (NSS), (2) shim (NSS)

1шт.

Выбрано товаров: 29
