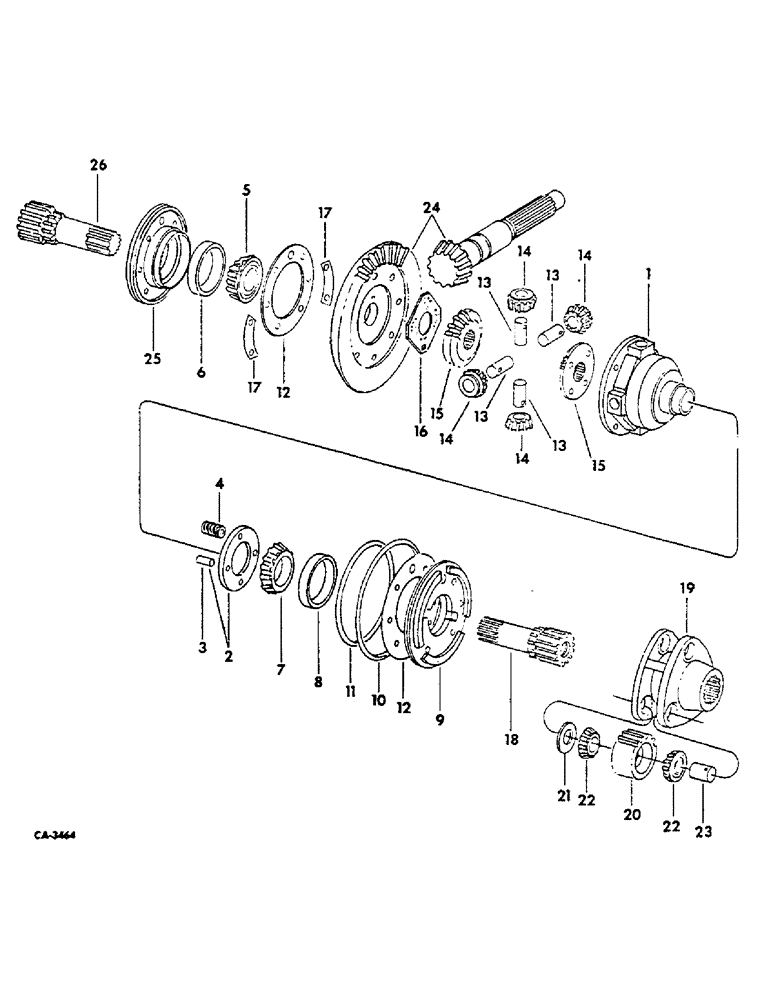

Запчасти Case IH 674 (07-08) - DRIVE TRAIN, DIFFERENTIAL AND CONNECTIONS (04) - Drive Train

1

399763R1

PINION CARRIER

CARRIER, differential

1шт.

2

399764R11

LOCKING RING

RING ASSY, differential lock, Includes: Ref. 3

1шт.

3

399765R1

PIN

coupling

4шт.

4

400867R1

SPRING

differential lock

2шт.

5

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

BEARING ASSY, differential LH cone

1шт.

6

105496H

BEARING CUP,97.63mm OD x 19.45mm W

BEARING, differential LH cup

1шт.

7

52843V

BEARING ASSY,57.15mm ID x 22.05mm W

BEARING ASSY, differential cone RH

1шт.

8

105497H

BEARING CUP,96.85mm OD x 15.77mm W

BEARING, differential cup RH

1шт.

9

399769R1

BEARING CARRIER

CARRIER, differential brg LH

1шт.

10

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8

2шт.

11

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 x 3/16

2шт.

12

65419C1

BEARING CARRIER

PACKAGE, differential brg carrier shim, consists of (3) shim (NSS), (3) shim (NSS), (3) shim (NSS), (2) shim (NSS)

2шт.

13

399804R1

PIN

differential pinion

4шт.

14

399776R1

PINION

GEAR, differential pinion 10 T

4шт.

15

404336R1

PINION

GEAR, differential bevel 20 T

2шт.

16

399778R1

THRUST WASHER

differential bevel gear thrust

1шт.

17

399780R1

SUPPORT, bevel gear screw lock

4шт.

18

404342R1

SHAFT

planetary drive LH

1шт.

19

114613C1

CARRIER

planet gear, replaces 404344R2

2шт.

20

66128C2

PINION

GEAR, planet, 25T

6шт.

21

65421C2

SHIM KIT

PACKAGE, planet gear shim service, consists of (3) shim (NSS), (3) shim (NSS), (3) shim (NSS)

1шт.

22

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING ASSY, planet gear cone

12шт.

23

399812R1

SHAFT

PIN, planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

24

65779C1

GEAR, BEVEL

SET, bevel gear matched, row crop tractors, consists of (1) gear (NSS), (1) shaft (NSS)

1шт.

24

65254C1

SHAFT

SET, bevel gears matched, not row crop, consists of (1) gear (NSS), (1) shaft (NSS)

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

SCREW, 1/2-13 x 1-1/2 hex-hd cap

4шт.

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT, 1/2-13 x 2-1/8 dowel

4шт.

25

399770R1

BEARING CARRIER

CARRIER, differential brg RH

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

26

404343R1

SHAFT

planetary drive RH

1шт.
