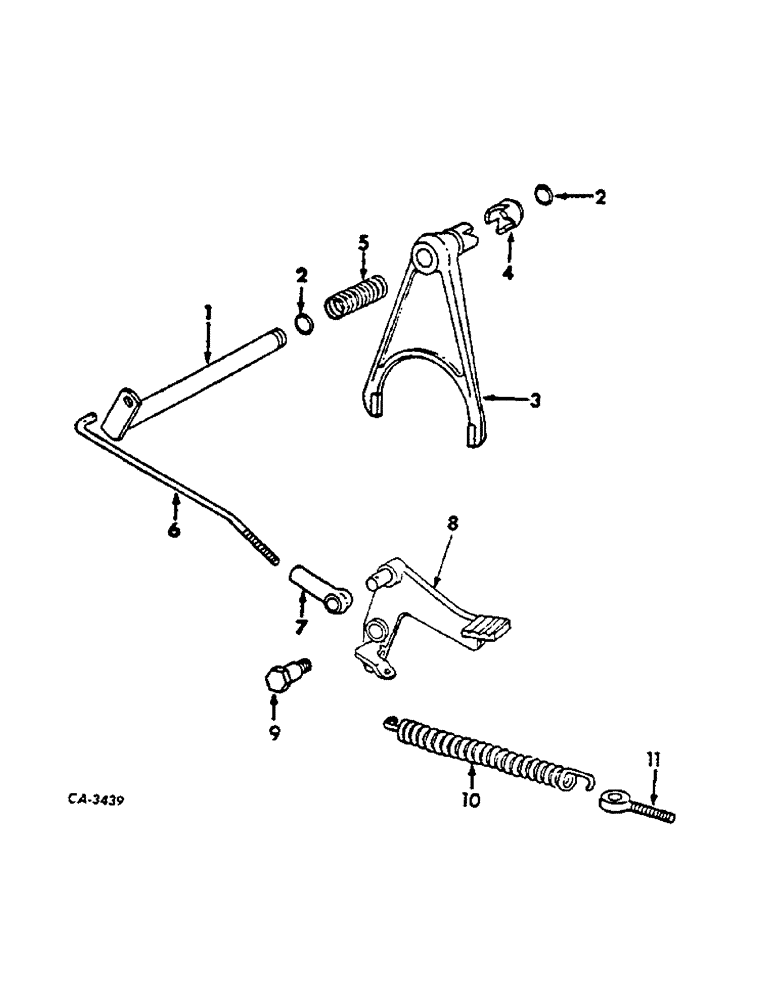

Запчасти Case IH 674 (07-07) - DRIVE TRAIN, DIFFERENTIAL LOCK (04) - Drive Train

1

527871R1

SHAFT ASSY.

SHAFT ASSY, diff lock

1шт.

2

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

2шт.

3

527874R3

FORK

ASSY, diff lock shaft

1шт.

4

527877R1

CAM

PIN, diff lock cam actuating

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

5

527878R1

SPRING

diff lock fork actuating

1шт.

6

527879R1

ROD

diff lock pedal

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

Q1597

WASHER

13/32 x 3/4 x 1/16

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

527880R1

END

diff lock pedal connecting rod

1шт.

8

66441C1

PEDAL

diff lock

1шт.

11002VA

WASHER

17/32 x 7/8 x 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

9

527885R1

BOLT

BOLT, diff lock pedal pivot

1шт.

10

527886R1

VALVE SPRING

SPRING, diff lock pedal return

1шт.

11

67732C1

BOLT, pedal return spring eye

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga

1шт.

102635

NUT,3/8"-16, G5

2шт.
