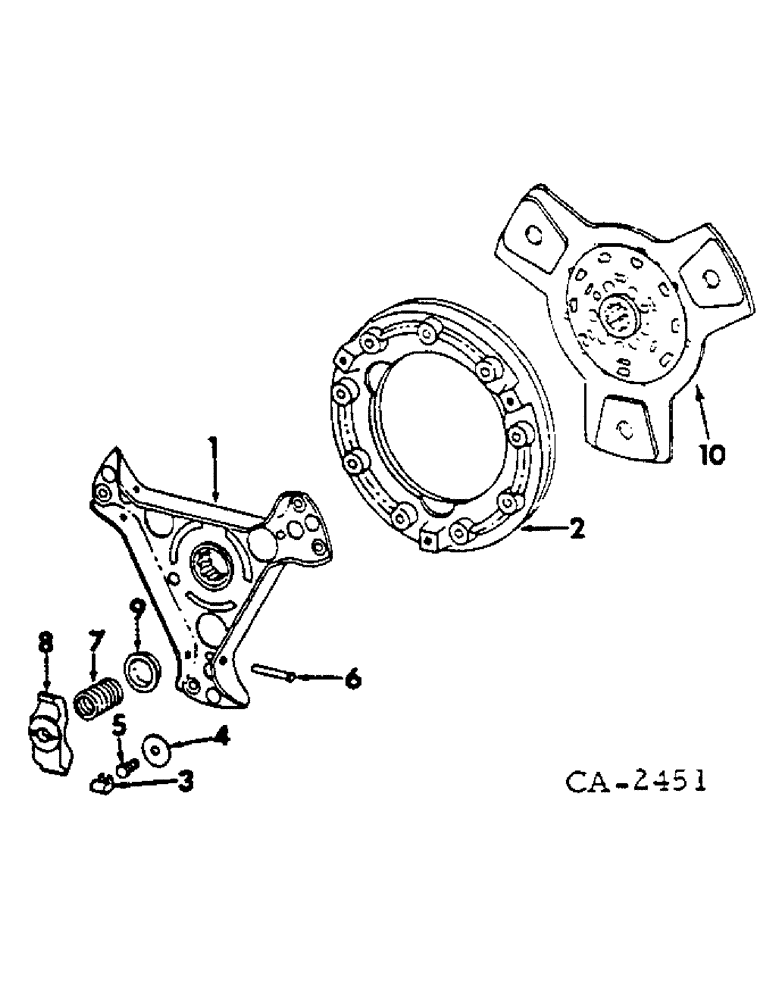

Запчасти Case IH 674 (07-05) - DRIVE TRAIN, CLUTCH (04) - Drive Train

70716C1

COVER ASSY

COVER ASSY, clutch pressure plate, consists of Ref. 1 - 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

BRACKET, pressure plate, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

1шт.

2

PLATE, pressure, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

1шт.

3

CLIP, return, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

3шт.

4

WASHER, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

3шт.

5

SCREW, adjusting, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

3шт.

6

PIN, pivot, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

3шт.

7

SPRING, pressure, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

3шт.

8

LEVER, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

3шт.

9

CUP, spring, Not serviced separately, furnish clutch pressure plate cover assy 70716C1

3шт.

10

401479R93

DRIVEN PLATE

PLATE ASSY, clutch driven disc, 3 pad, carbureted engine tractors

1шт.

10

401479R93R

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 11 in., 10Tooth hub, 3 paddle - Gas Engine

1шт.

10

401479R93C

CORE-CLUTCH DISC

Return Part Number

1шт.

10

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

Remanufactured, Clutch Plate, 11 in, 10 Tooth Hub

1шт.

10

92602C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

10

530402R3

DISC

PLATE ASSY, clutch driven disc, 4 pad, diesel engine tractors

1шт.

10

293248A1R

REMAN-CLUTCH DISC

Remanufactured Clutch Disc - 11 in., 10Tooth hub, full round disc, 6 button or 3 paddle 6 button

1шт.

10

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.
