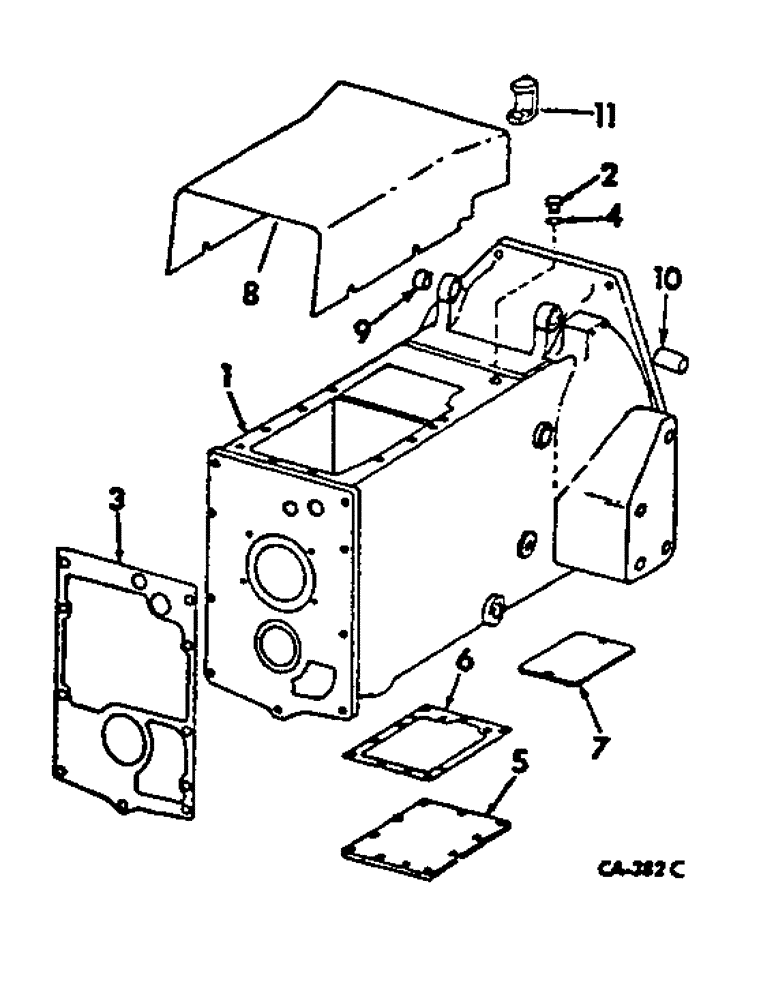

Запчасти Case IH 674 (07-04) - DRIVE TRAIN, CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
537097R94
HOUSING
ASSY, clutch, consists of housing (NSS)
1шт.
19962R1
DOWEL,3/8" x 3/4"
PIN
1шт.
20556R1
DOWEL,1/2" x 3/4"
PIN
1шт.
19904R1
DOWEL,1/2" x 1"
PIN
2шт.
327411R1
PLUG,Cup, 5/8"
1шт.
3113103R1
PLUG
bushing (NSS)
1шт.
537099R1
NO LONGER SERVICED
BUSHING
1шт.
539834R1
BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L
1шт.
340340R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
SCREW, 1/2-13 x 1-1/2 hex-hd cap
5шт.
179887
CABLE
SCREW, 1/2-13 x 1-3/4 hex-hd cap
6шт.
179897
BOLT,Hex, 1/2" - 13 x 4", Gr 5
SCREW, 1/2-13 x 4 hex-hd cap, carbureted engine tractors
2шт.
179894
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
2шт.
179895
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5
SCREW, 1/2-13 x 3-1/2 hex-hd cap
2шт.
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
SCREW, 1/2-13 x 1-3/4 hex-hd cap, Diesel engine tractors
4шт.
186295
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5
SCREW, 1/2-13 x 5-1/2 hex-hd cap
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
102637
NUT,1/2"-13, G5
2шт.
2
9410359
PLUG
3/4-16 str thd o-ring boss
1шт.
3
399814R4
GASKET
clutch housing to rear frame
1шт.
5
402182R1
COVER
clutch housing bottom rear
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 3/4 hex-hd cap
11шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
11шт.
6
402556R2
GASKET
clutch housing bottom rear cover
1шт.
7
399817R1
COVER
clutch compartment
1шт.
179835
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
2шт.
8
66290C1
COVER
clutch housing
1шт.
470-1256
SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"
1/4-20 x 3/8 C-Z slt-pan-hd mach
4шт.
9
539245R1
BUSHING
clutch and brake shaft
1шт.
10
537099R1
NO LONGER SERVICED
BUSHING, LH brake pedal pivot, optional w/539834R1
1шт.
10
539834R1
BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L
LH brake pedal pivot, optional w/537099R1
1шт.
11
(Not used this application)
1шт.
Выбрано товаров: 32
