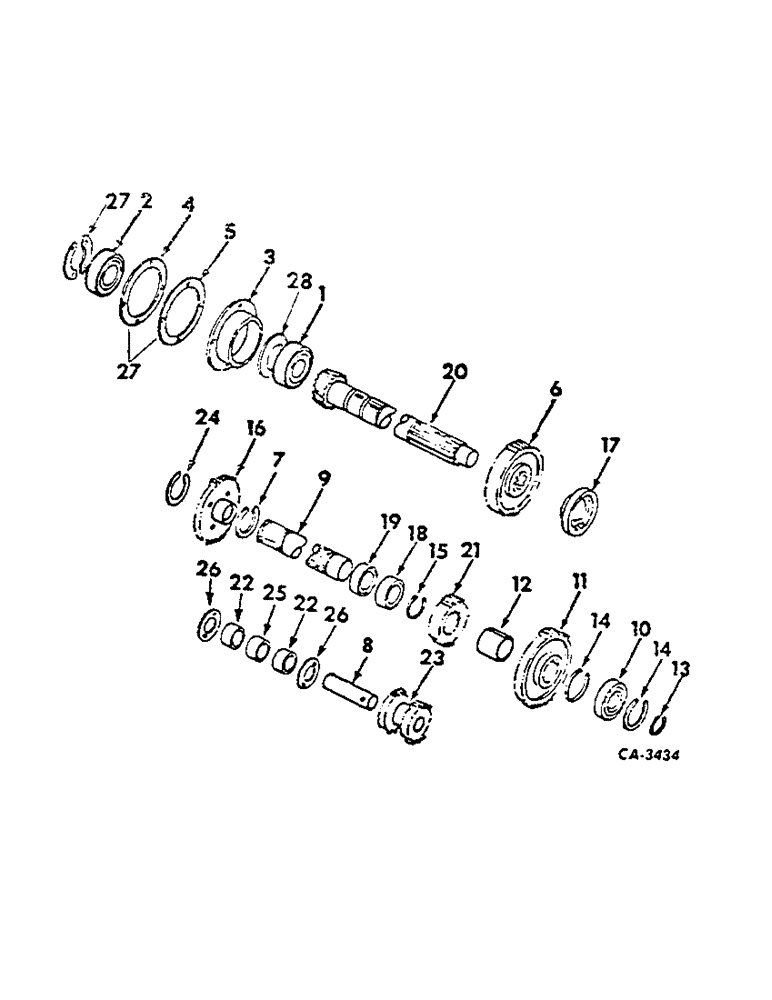

Запчасти Case IH 674 (07-03) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

1

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, main shaft front

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, main shaft rear

1шт.

2

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

ASSY, main shaft rear, row crop

1шт.

3

399825R1

BEARING CUP

CAGE, main shaft brg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

4

399826R1

SHIM

main shaft brg cage, .004, row crop (or as required)

2шт.

5

399827R1

SHIM

main shaft brg cage, .007, row crop

1шт.

6

399462R1

GEAR

fwd reverse sliding, 42T

1шт.

6

65782C1

GEAR

forward reverse sliding, 41T, row crop

1шт.

7

399837R1

SNAP RING,#118, 1.121", Ext

RING, pump drive gear retainer snap

1шт.

8

399838R3

SHAFT

reverse idler

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

9

404096R1

SHAFT

COUNTERSHAFT, range transmission

1шт.

10

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BEARING, countershaft front ball

1шт.

11

404097R1

GEAR

constant mesh, 46T

1шт.

12

399835R1

BUSHING

countershaft gears

1шт.

13

327068R1

RING, SNAP

RING, countershaft brg ext snap

1шт.

14

399832R1

RING, SNAP

RING, countershaft brg int snap

2шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

RING, lo range driving gear ret snap

1шт.

16

404218R1

GEAR

pump drive, 55 T

1шт.

17

399830R2

COLLAR

hi speed shift

1шт.

18

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING, countershaft front, needle, optional W/527746R91

1шт.

18

527746R91

BEARING, NEEDLE

BEARING, optional w/399820R91

1шт.

19

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING, pump drive gear needle

1шт.

20

65779C1

GEAR, BEVEL

SET, bevel gears matched, row crop tractors, consists of (1) shaft (NSS), (1) gear (NSS)

1шт.

20

65254C1

SHAFT

SET, bevel gears matched, consists of (1) shaft (NSS), (1) gear (NSS)

1шт.

21

103150C1

PINION

GEAR, lo range driving, 24T, replaces 404099R1

1шт.

21

404100R1

PINION

GEAR, lo-range driving, 27T, row crop

1шт.

22

3112844R91

BEARING, NEEDLE

BEARING, reverse idler gear needle

2шт.

23

3112843R1

GEAR

reverse idler, 18 and 27T, row crop

1шт.

23

70298C1

PINION

GEAR, reverse idler, 20 and 24T, replaces 3112842R1

1шт.

24

533266R1

RING, SNAP

RING, IPTO front driven shaft rear snap

1шт.

25

3112845R1

SPACER

idler bearing

1шт.

26

3112846R1

THRUST WASHER

idler bearing

2шт.

27

65784C2

RETAINER

ASSY, main shaft brg, row crop

2шт.

65787C1

WASHER

brg retainer bolt

4шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

28

65788C1

WASHER

bevel pinion shaft thrust, row crop

1шт.

65423C1

SHIM KIT

PACKAGE, main shaft brg cage, shim service, consists of (2) shim (NSS), (5) shim (NSS)

1шт.
