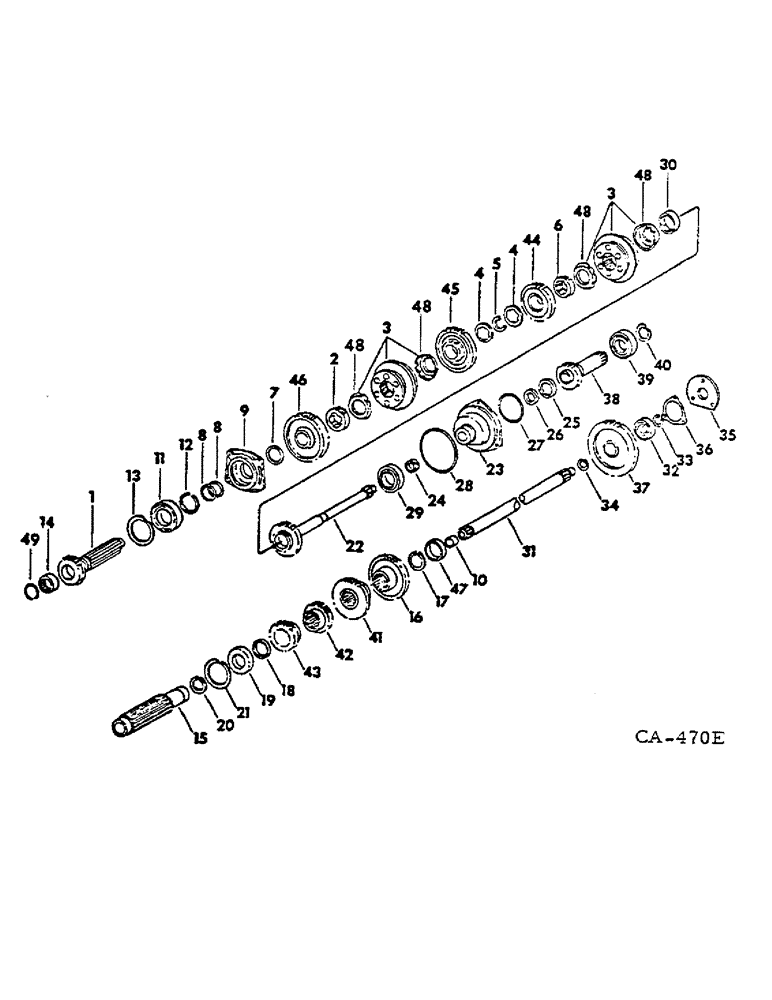

Запчасти Case IH 674 (07-01) - DRIVE TRAIN, SPEED TRANSMISSION, IN CLUTCH HOUSING (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
65258C1
SHAFT
speed transmission
1шт.
2
398325R1
HUB
1st and 2nd speed shift
1шт.
3
65793C1
SYNCHRONIZER
ASSY, w/cups
2шт.
4
398328R2
THRUST WASHER
WASHER, main shaft thrust
2шт.
5
398329R1
CIRCLIP
RING, synchronizer locating snap
1шт.
6
398325R1
HUB
3rd and 4th speed shift
1шт.
7
398332R1
WASHER
main shaft brg cage
1шт.
8
404281R1
RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk
mainshaft lub line seal
1шт.
9
534411R1
BEARING ASSY
CAGE, main shaft bearing
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
10
533325R91
BEARING, NEEDLE
BEARING, IPTO driven shaft needle
1шт.
11
ST278
BEARING, BALL,49.99mm ID x 90mm OD x 20mm W
BEARING, main shaft ball
1шт.
12
327068R1
RING, SNAP
RING, main shaft bearing retainer outer snap
1шт.
13
398334R1
SNAP RING
RING, main shaft brg retainer inner snap
1шт.
14
613639C91
NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W
main shaft needle
1шт.
15
404089R1
SHAFT
COUNTERSHAFT, speed transmission
1шт.
16
404090R1
PINION
GEAR, constant mesh driven, 39 T
1шт.
17
398264R1
SNAP RING,#215, 2.026", Ext
RING, constant mesh driven gear retainer snap
1шт.
18
398268R1
BUSHING
ring spacer
1шт.
19
ST201
BEARING, BALL,45mm ID x 85mm OD x 19mm W
BEARING, countershaft ball
1шт.
20
379511R1
SNAP RING,#177, 1.657", Ext
RING, countershaft brg outer snap
1шт.
21
574964R1
RING, SNAP
RING, countershaft brg inner snap
1шт.
22
398320R3
SHAFT
clutch
1шт.
23
398318R21
BEARING ASSY,1.184" ID
ASSY, IPTO and clutch shaft brg, includes Ref. no 24
1шт.
24
398319R1
BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L
clutch shaft
1шт.
25
376930R91
OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk
IPTO drive shaft oil, used w/shaft 66347C3 and carrier 398236R2 (Replaces 376930R92)
1шт.
25
108982C1
OIL SEAL
SEAL, IPTO drive shaft oil, used w/shaft 71230C1 and carrier 71229C1
1шт.
26
105758C1
OIL SEAL
clutch shaft oil
1шт.
27
355740R1
O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro
3-3/4 x 4 x 1/8
1шт.
28
343942R1
O-RING,5.359" ID x 0.139" Width
5-3/8 x 5-5/8 x 1/8
1шт.
29
ST243
BEARING, BALL,45 mm ID x 85 mm OD x 19 mm
BEARING, clutch shaft ball
1шт.
30
531168R91
BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W
BEARING, clutch shaft needle
1шт.
31
536748R1
SHAFT ASSY.
SHAFT, IPTO driven
1шт.
32
ST367
BEARING, BALL,25 mm ID x 62 mm OD x 17 mm
BEARING, IPTO driven shaft front ball
1шт.
33
555601R1
RING, SNAP
RING, IPTO driven shaft front brg retainer snap
1шт.
34
399837R1
SNAP RING,#118, 1.121", Ext
RING, IPTO driven gear retainer snap
1шт.
35
398259R1
LARGE PLATE
CAP, IPTO driven shaft front brg
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 7/8 hex-hd cap
3шт.
36
398260R2
GASKET
IPTO driven shaft front brg
1шт.
37
404214R1
GEAR
IPTO driven, 46 T
1шт.
38
71230C1
SHAFT HOUSING
SHAFT, IPTO drive, replaces shaft 66347C3 by also ordering carrier 71229C1 and seal 108982C1
1шт.
40
379511R1
SNAP RING,#177, 1.657", Ext
RING, IPTO drive shaft brg retainer snap
1шт.
41
404091R1
PINION
GEAR, 4th speed drive, 43T
1шт.
41
404092R1
PINION
GEAR, 3rd speed drive, 34T, row crop
1шт.
42
404092R1
PINION
GEAR, 2nd speed drive, 34T
1шт.
42
404093R1
GEAR
2nd speed drive, 26T, row crop
1шт.
43
404093R1
GEAR
1st speed drive, 26T
1шт.
43
66152C1
PINION
GEAR, 1st speed drive, 22T, row crop
1шт.
44
398327R3
PINION
GEAR, 4th speed driven, 24T
1шт.
44
398330R3
PINION
GEAR, 3rd speed driven, 33T, row crop
1шт.
45
398330R3
PINION
GEAR, 2nd speed driven, 33T
1шт.
45
66155C3
GEAR
2nd speed driven, 41T, row crop
1шт.
46
398331R2
PINION
GEAR, 1st speed driven, 41T
1шт.
46
66153C2
PINION
GEAR, 1st speed driven, 45T, row crop
1шт.
47
399820R91
BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W
BEARING, countershaft front needle, optional w/527746R91
1шт.
47
527746R91
BEARING, NEEDLE
BEARING, optional w/399820R91
1шт.
48
CUP, synchronizer, not serviced seperately order Ref. no. 3
4шт.
49
66014C1
SNAP RING
RING, main shaft brg interal snap
1шт.
