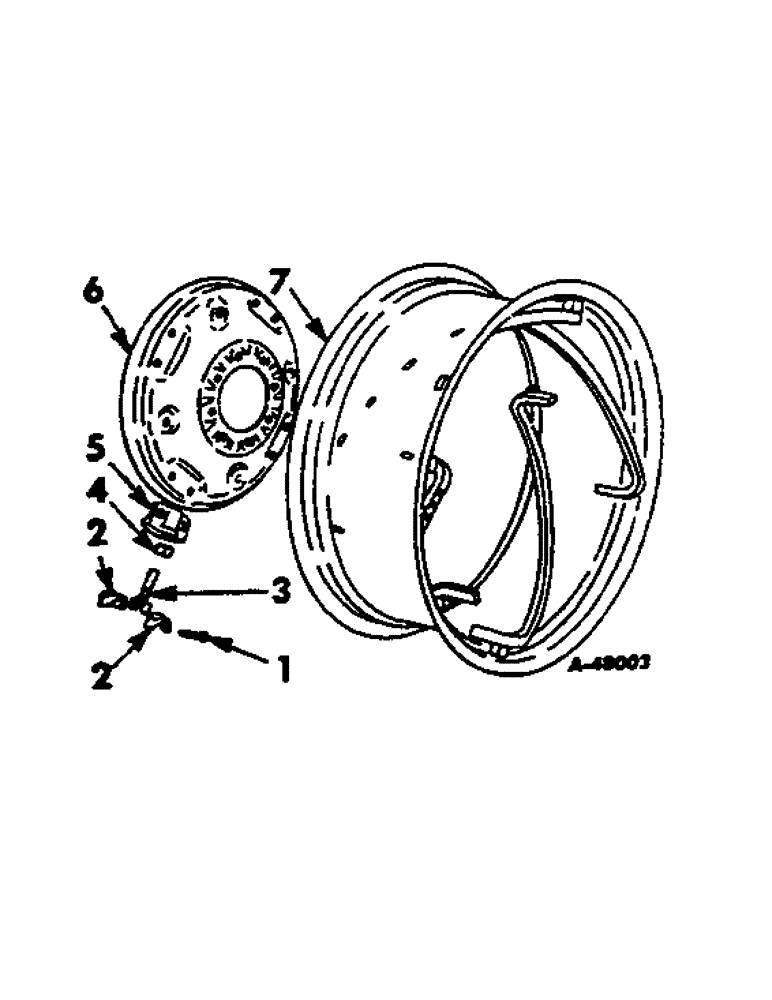

Запчасти Case IH 674 (15-03) - WHEELS AND TRACTION, POWER ADJUSTED REAR WHEELS Wheels & Traction

365323R92

WHEEL ASSY, power adjusted rear

2шт.

1

365326R1

SCREW

stop

2шт.

2

365327R2

STOP

BODY, stop

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 cdp hex.

8шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8-11 x 1-1/2 cdp crg

8шт.

3

365329R1

JACK SCREW

jack

4шт.

4

365328R1

NUT

7/8-14 cdp hex

4шт.

5

365330R1

BODY

jack screw

4шт.

6

365325R1

DISC, 28 in. rear wheel

1шт.

7

365324R92

RIM

ASSY

1шт.

365331R1

WRENCH, jackscrew

1шт.
