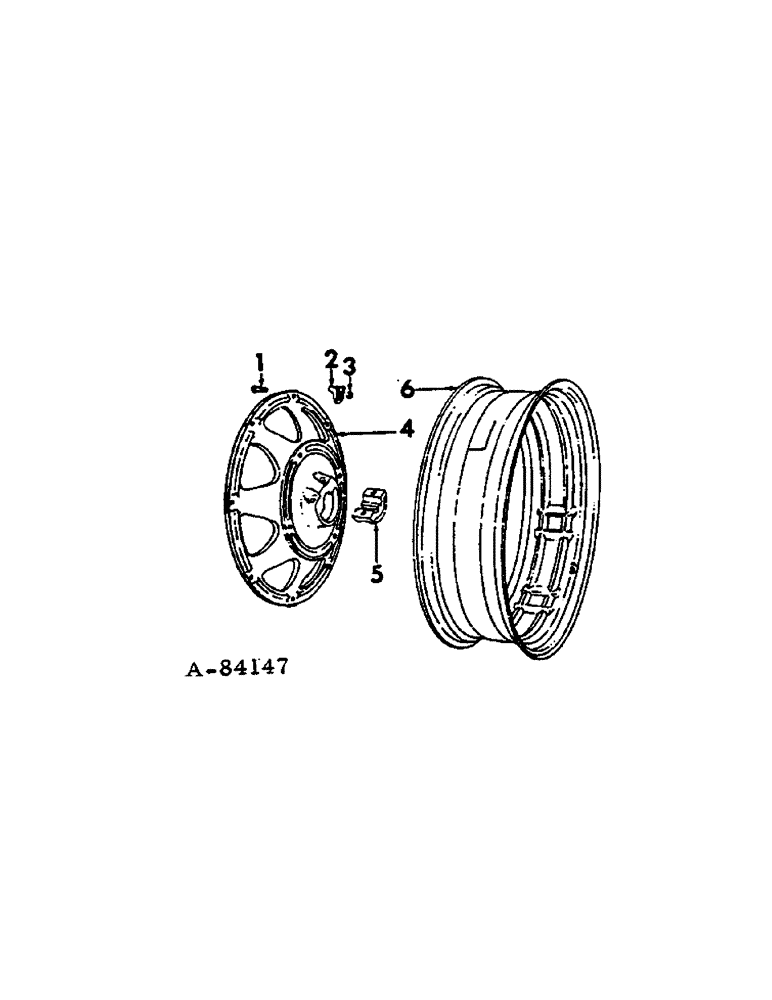

Запчасти Case IH 674 (15-02) - WHEELS AND TRACTION, REAR WHEELS, ROW CROP TRACTORS Wheels & Traction

1

381727R1

SCREW

BOLT, rear wheel rim clamp

16шт.

2

381725R1

SHIN

CLAMP, rear wheel rim

12шт.

2

381726R1

SHIN

CLAMP, rear wheel rim fixed

4шт.

3

363018R1

NUT

rear wheel rim clamp

16шт.

4

528316R1

WHEEL, 36 inc. rear

2шт.

4

392415R1

WHEEL

38 inc. rear, 5 in. offset

2шт.

5

389539R1

CLAMP

wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

6

380869R1

RIM

WH14L-38 rear wheel for 15.5-38 tire

2шт.
