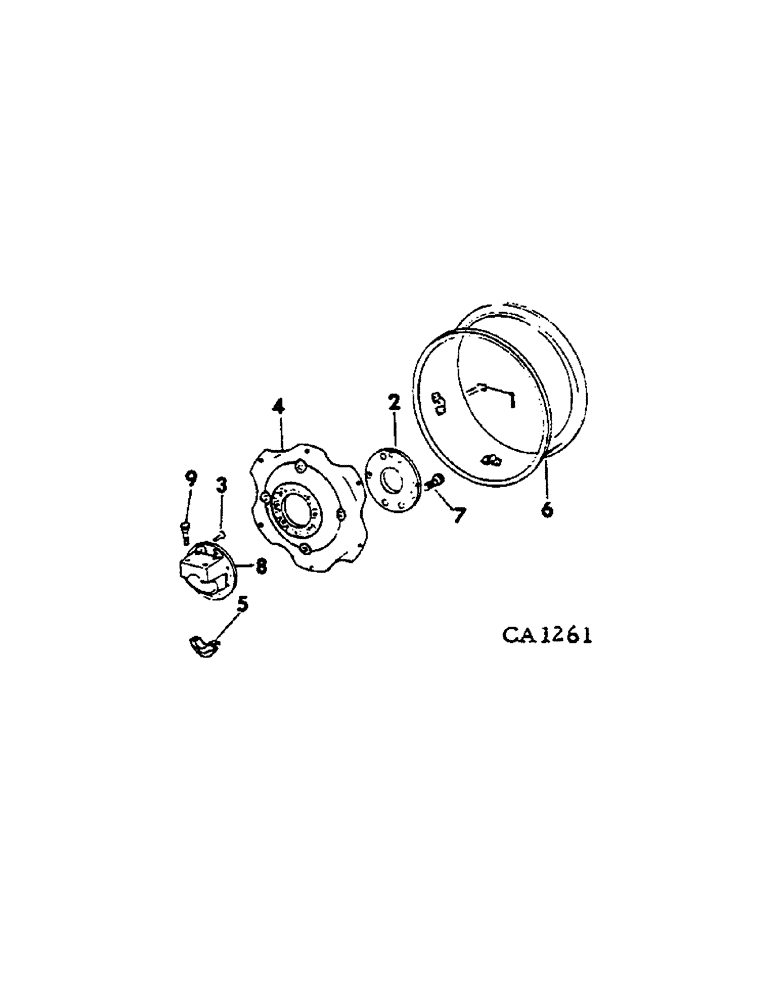

Запчасти Case IH 674 (15-02[1]) - WHEELS AND TRACTION, REAR WHEELS, ROW CROP TRACTORS Wheels & Traction

1

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp

12шт.

352777R1

NUT

rear wheel rim clamp

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga

12шт.

2

365957R2

FLANGE

rear wheel hub pilot

2шт.

3

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW, pilot flange mounting

8шт.

4

361724R1

WHEEL DISC

WHEEL, disc rear

2шт.

4

375111R91

WHEEL ASSY, DW14-34 rim and disc, consists of Ref. 5, 7 and 8

2шт.

375463

SCREW, 7/8-14 x 4-3/4 hex-hd cap

1шт.

5

389539R1

CLAMP

rear wheel hub

4шт.

6

395856R2

RIM

rear wheel w/clamps DW14-30 DC

2шт.

6

395855R2

RIM

w/clamps, DW16-30DC rear wheel

2шт.

6

539326R1

RIM, w/clamp assy, DW12-30DC

2шт.

7

391004R1

BOLT,Hex, 5/8"

BOLT, rear wheel mounting, 18 for wheel 375111R91

16шт.

8

530504R1

HUB

rear wheel

2шт.

8

391279R1

HUB, rear wheel

2шт.

9

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

BOLT, hub clamp mounting, 8 used w/clamp 389539R1

4шт.
