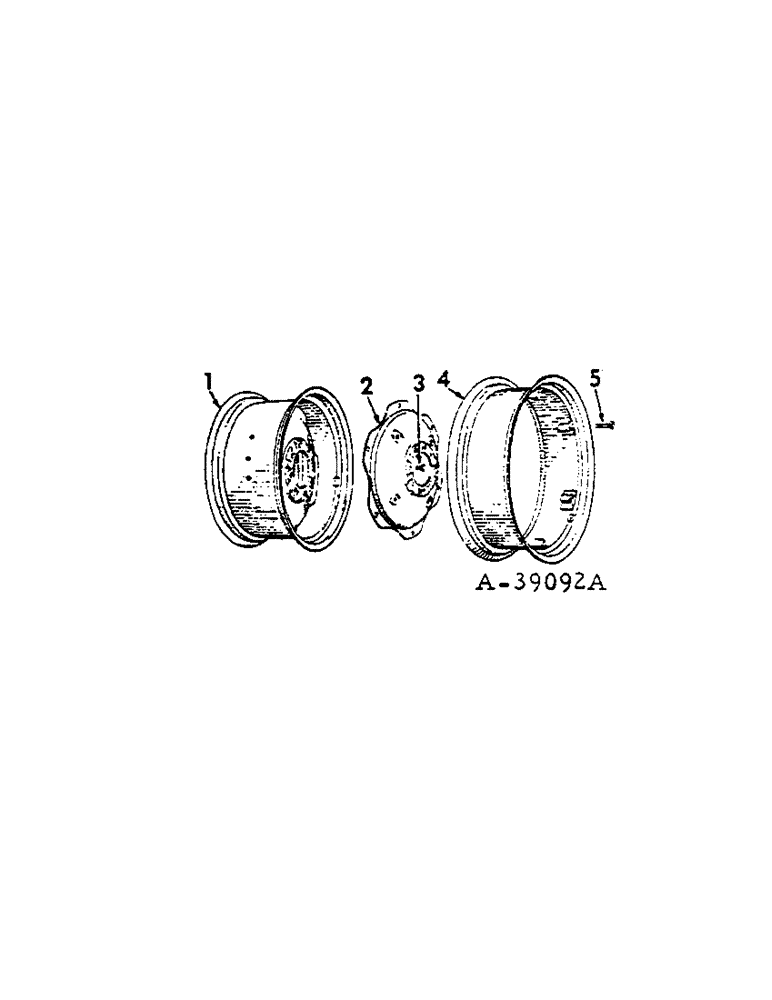

Запчасти Case IH 674 (15-01[1]) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction

1

364346R92

WHEEL

RIM AND DISC ASSY, W12-24 int. w/disc for 16.9-24 tire

2шт.

1

375141R91

WHEEL, DW-16-26 rear disc and rim for 18.4-26 6 ply R-1, replaces 375142R91

2шт.

383697R1

PLUG

valve hole

1шт.

1

376196R91

WHEEL

RIM AND DISC ASSY, W12-24 rear wheel for 16.9-24 tire

2шт.

1

365480R92

WHEEL

RIM AND DISC ASSY, W16L-24 rear wheel for 16.9-24 tire

2шт.

1

375141R91

WHEEL, DW16-26 rear disc and rim, tractors w/grove attachment

2шт.

383697R1

PLUG

vavle hose

2шт.

1

361700R92

RIM

ASSY, W10-28 rear wheel w/clamp

2шт.

2

374806R1

DISC, WHEEL

WHEEL, disc rear, W12-24 rear attachment clamp rim

1шт.

2

361724R1

WHEEL DISC

WHEEL, disc rear, 30 inch, tractors w/grove attachment

2шт.

3

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

4

373508R92

RIM, W14-28 rear wheel w/clamps for 16.9-28 tire

2шт.

4

374808R92

RIM

W12-24 rear wheel w/clamps for 14.9-24 or 16.9-24 tires

2шт.

4

374809R92

RIM, W16-24 rear wheel w/clamps for 16.9-24 tire

2шт.

5

363800R2

BOLT,5/8" - 18 x 3 1/8"

rear wheel rim clamp, 24 used w/dual rear wheels

12шт.

369730R1

WASHER

rear wheel rim bolt

12шт.

352777R1

NUT

rear wheel rim

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

27549R1

VALVE STEM

Assy, Air-liquid

2шт.

417194C1

PLUG

5/8 rim hole

1шт.
