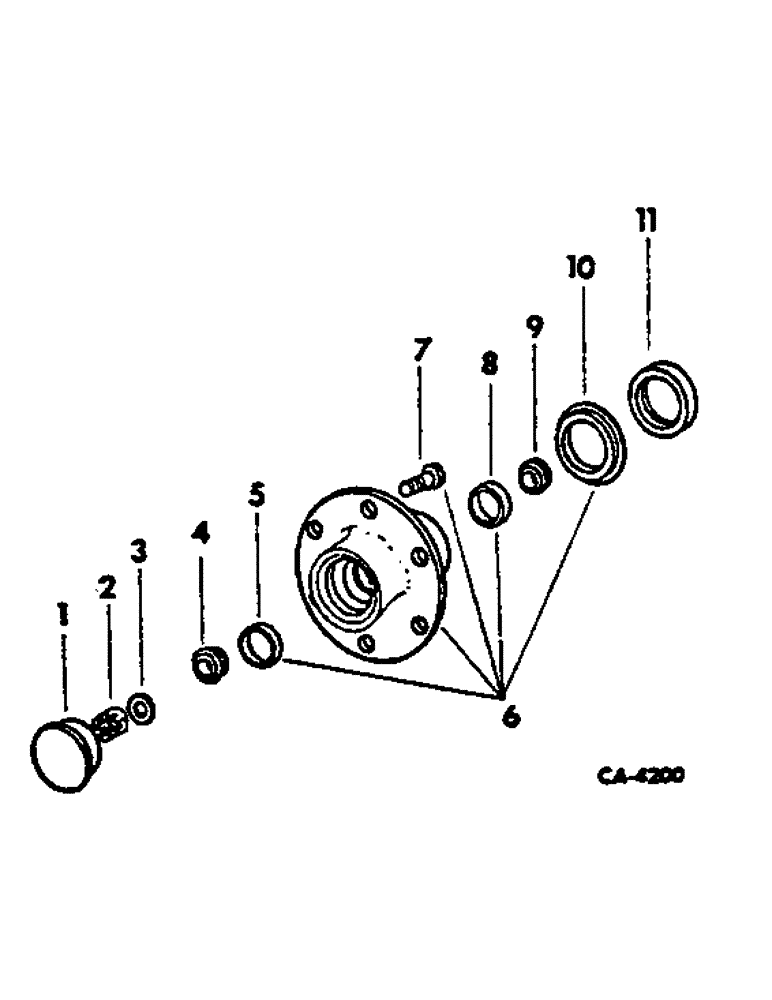

Запчасти Case IH 674 (14-03) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CAP Suspension

1

612884R1

HUB CAP

CAP, front wheel hub

2шт.

2

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

3

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

outer bearing retainer, For steering knuckle, 527292R92

2шт.

3

3118706R1

WASHER

outer bearing retainer, For steering knuckle, 67526C91

2шт.

4

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, outer, For steering knuckle, 527292R92

2шт.

4

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING, outer cone, For steering knuckle, 67526C91

2шт.

5

371883R1

BEARING CUP

Outer, For steering knuckle, 527292R92

2шт.

5

536054R1

BEARING CUP,60mm OD x 11.94mm W

BEARING, outer cup, For steering knuckle, 67526C91

2шт.

6

406294R11

HUB

ASSY, front wheel, For steering knuckle, 527292R92

2шт.

6

67527C91

HUB ASSY.

HUB ASSY, front wheel, For steering knuckle, 67526C91

2шт.

7

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

front wheel mounting

12шт.

483879R1

NUT

wheel

12шт.

8

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner, For steering knuckle, 527292R92

2шт.

8

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING, inner cup, For steering knuckle, 67526C91

2шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, inner cone, 1-3/8 in. diameter, For steering knuckle, 527292R92

2шт.

9

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING ASSY, inner cone, 1-25/32 inc. diameter, For steering knuckle, 67526C91

2шт.

10

406295R2

RING

wear, For steering knuckle, 527292R92 (Replaces 405295R2)

2шт.

10

67328C1

SEALING RING

RING, wear, For steering knuckle, 67526C91

2шт.

11

405835R91

SEAL

front wheel dust, replaces 48539DA, For steering knuckle, 527292R92

2шт.

11

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel dust, For steering knuckle, 67526C91

2шт.

65988C91

KIT

PACKAGE, front wheel bearing overhaul, for wheel hub 406294R11, (1) cone 618023R91 (1) cup 618024R1 (1) cone 371882R91 (1) cup 371883R1 (1) seal 405835R91 (1) washer 369857R1 (1) pin 108643 (1) ring 406295R2

1шт.

70238C92

WHEEL BEARING KIT

PACKAGE, front wheel bearing overhaul, for wheel hub 67527C91, consists of (1) cone 399933C91 (1) cup 399934C1 (1) cone 536053R91 (1) cup 536054R1 (1) ring 67328C1 (1) seal 370254R91 (1) washer 3118706R1 (1) nut 427639 (1) pin 108643

1шт.
