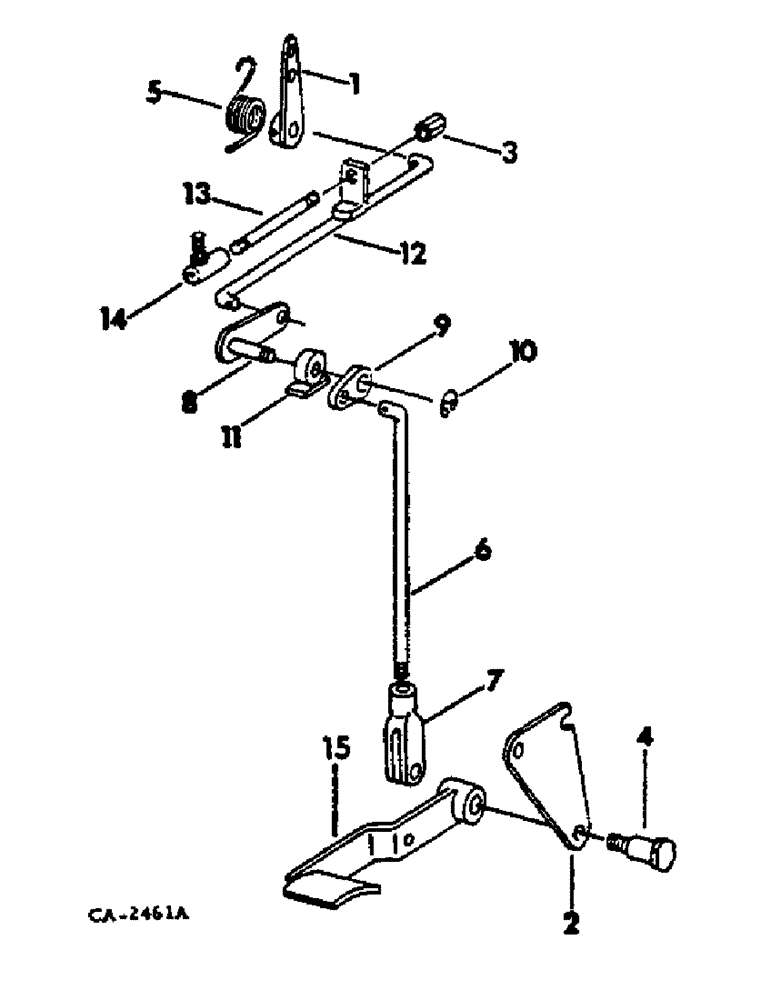

Запчасти Case IH 674 (12-13) - POWER, FOOT ACCELERATOR, DIESEL ENGINE TRACTORS Power

1

LEVER ASSY, for components, see list of parts under details of governor control diesel listing

1шт.

2

528754R2

SUPPORT

BRACKET, foot accelerator pedal support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

3

528776R1

NUT

foot accelertor pick-up rod swivel

1шт.

4

532965R3

BOLT,3/8" - 16 x 1.7"

foot accelerator pedal pivot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

5

539012R1

SPRING

torsion

1шт.

6

528759R3

ROD

foot accelerator pull

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

7

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 x 2 adj rod end

1шт.

114783

PIN

1/4 x 51/64 rod end

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

8

528760R3

ARM

ASSY, bellcrank

1шт.

9

528764R3

LEVER

bellcrank

1шт.

10

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

11

532967R2

ARM

ASSY, actuating

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

12

528767R1

ROD ASSY.

ROD ASSY, bellcrank pull

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

2шт.

13

528775R1

ROD

foot accelerator pickup

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

2шт.

14

109400

STEERING KNUCKLE

JOINT, 1/4-28 ball, optional w/19318R1

1шт.

14

19318R1

BALL JOINT

JOINT, 1/4-28 ball, optional w/109400

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex.

1шт.

15

PEDAL ASSY, foot accelerator, order foot accelerator service package

1шт.

69409C91

PACKAGE

foot accelerator pedal service, consists of (1) arm (NSS) (1) pad (NSS) (1) hub (NSS) (1) pedal (NSS)

1шт.

(P/N 69409C91) - Pkg contains only pedal and inst. sheet.

1шт.
