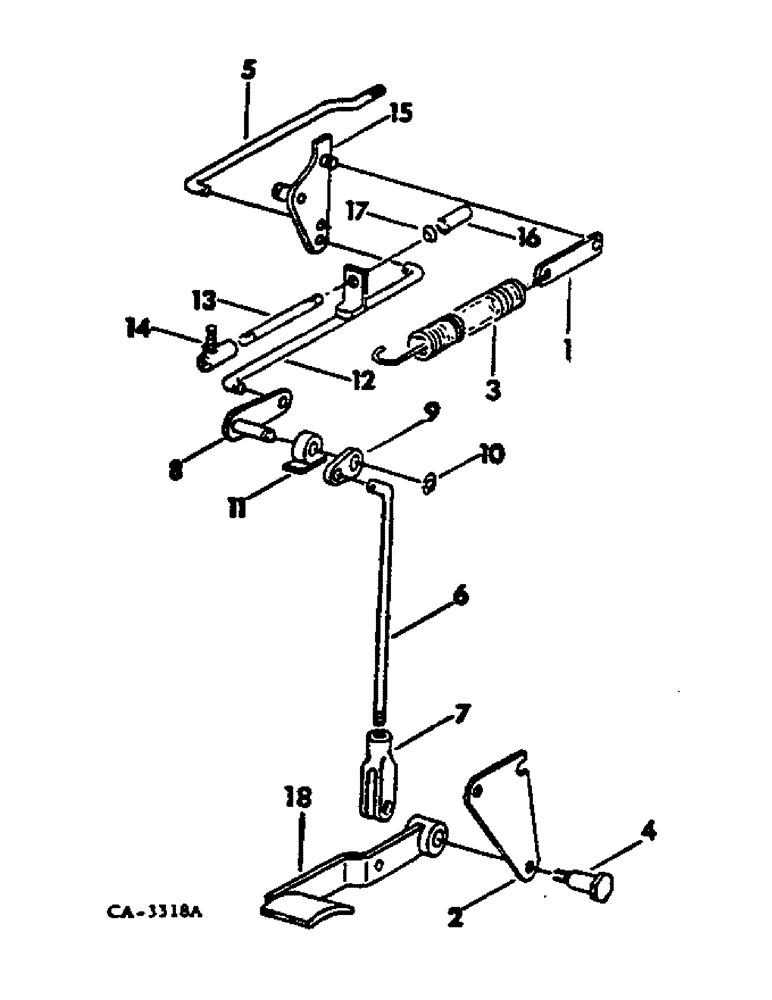

Запчасти Case IH 674 (12-12) - POWER, FOOT ACCELERATOR, CARBURETED ENGINE TRACTORS Power

1

LINK, balance, for components, see list part under details of governor control carbureted listing

1шт.

2

528754R2

SUPPORT

BRACKET, foot accelerator pedal support

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

3

538321R1

SPRING

governor control balance

1шт.

4

532965R3

BOLT,3/8" - 16 x 1.7"

foot accelerator pedal pivot

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

5

537596R1

ROD

governor control rear

1шт.

6

528759R3

ROD

foot accelerator pull

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

7

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 x 2 adj rod end

1шт.

114783

PIN

1/4 x 51/64 rod end

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

8

528760R3

ARM

ASSY, bellcrank

1шт.

9

528764R3

LEVER

bellcrank

1шт.

10

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

11

532967R2

ARM

ASSY, actuating

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

12

528765R2

ROD

ASSY, bellcrank pull

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

2шт.

13

528772R2

ROD

foot accelerator pick-up

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

3шт.

14

109400

STEERING KNUCKLE

JOINT, 1/4-28 ball, optional w/19318R1

1шт.

14

19318R1

BALL JOINT

JOINT, 1/4-28 ball, optional w/109400

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex.

1шт.

15

537592R1

LEVER ASSY, foot accelerator

1шт.

16

537594R1

SPACER

shock absorber

1шт.

446179

WASHER,#12

1/4 x 1/2 x .036 C-Z

1шт.

17

403678R1

WASHER

BALL

1шт.

18

PEDAL ASSY, foot accelerator, order foot accelerator service package

1шт.

69409C91

PACKAGE

foot acceledator pedal service, consists of (1) arm (NSS) (1) pad (NSS) (1) hud (NSS) (1) pedal (NSS)

1шт.

(P/N 69409C91) - Pkg contains only pedal and inst. sheet

1шт.
