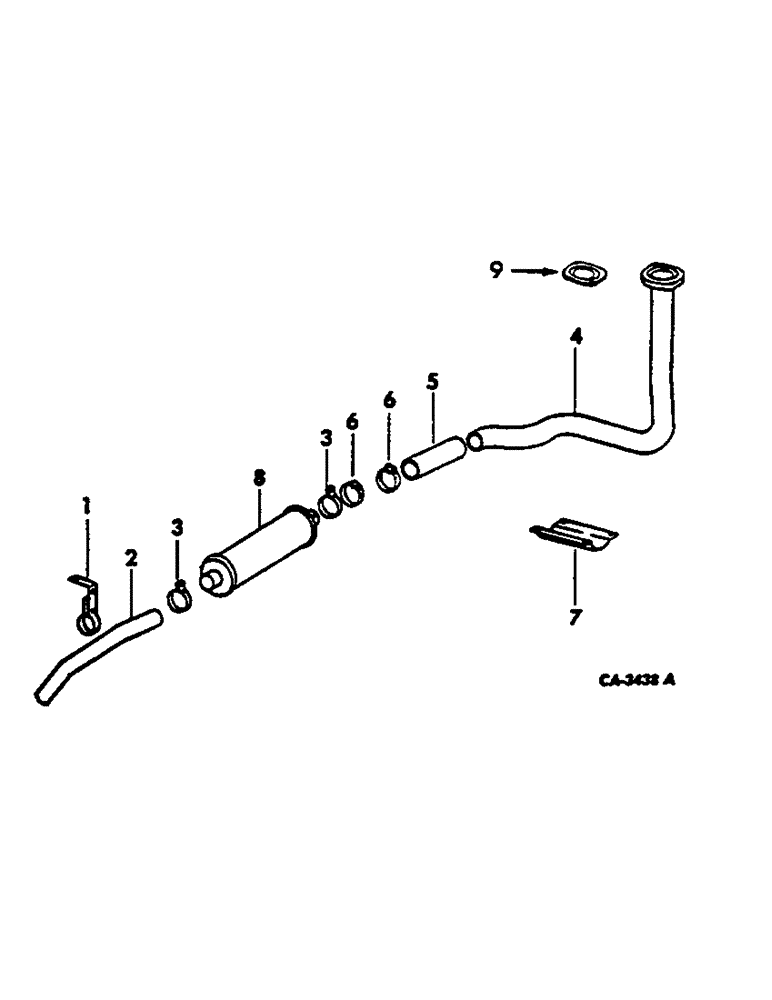

Запчасти Case IH 674 (12-09) - POWER, UNDERSLUNG EXHAUST Power

1

401492R2

SUPPORT

tail pipe rear

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

1шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

SCREW, 5/8-11 x 1 znd hex-hd cap, w/o three point hitch stabilizer

1шт.

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 3/8-16 x 3-3/4 znd hex-hd cap, w/three hitch stabilizer

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , w/o Three point hitch stabilizer 5/8"

1шт.

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

3/8 x 1-1/16 pipe, w/three point hitch stabilizer

1шт.

2

401490R2

PIPE

tail

1шт.

3

67672C1

CLAMP

muffler

2шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

401485R12

PIPE ASSY.

PIPE ASSY, exhaust manifold, diesel engine tractors, consists of Ref. 5 and 6

1шт.

4

401483R12

PIPE

ASSY, exhaust manifold, carbureted engine tractors, consists of Ref. 5 and 6

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

114614C1

SHIELD

heat

1шт.

6

995220R1

CLAMP

no. 28 hose, replaces 279220R1

2шт.

7

401488R1

GUARD

pipe, diesel engine tractors

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

401487R1

GUARD

pipe, carbureted engine tractors

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

401489R1

MUFFLER

1шт.

9

401486R1

MANIFOLD GASKET

exhaust manifold pipe

1шт.
